High Productivity Very Narrow Aisle Racking System with Cheap Price

High Productivity Very Narrow Aisle Racking System with Cheap Price
Features Gallery Product Description Request A Quote
Name: Very Narrow Pallet Racking System
Material Type: High Strength Steel
Color: RAL Code: Blue, Green, Orange, Yellow, Grey, Galvanization, Etc.
Usage Range: General Warehouse Distribution, Logistics, Cold Warehouse Storage, E-Commerce, Manufacturing, Food&Beverage, Retail, 3PL, Automotive, Record Storage
Dimension: H:2~16.5Mts,Depth: 0.6~1.5Mts, Width: 1~3.9Mts, Customizable As Request
Load Capacity: 500kgs~4000kgs/Layer, 4000kgs~30000kgs/Bay
Certifications: RMI / AS4084-2012 / CE / ISO9001
Safety Accessories: Wire Decks, Column Protectors, Pallet Supports, Etc.
Products Package: Steel Strip, Stretch Film, Corrugated Paper, Bubble Film, Plywood Pallets
Services: Free CAD Design, ODM&OEM, Transportation, Project Installation, Systems Maintenance Etc.
High Light:

Q355 Very Narrow Aisle Racking


Very Narrow Aisle Racking System 1000mm


1000mm Depth vna storage system

Basic Infomation
Place of Origin: Jiangsu, China
Brand Name: Ironstone
Certification: RMI, AS4084, ISO9001, CE
Model Number: VNA-PRS
Payment & Shipping Terms
Packaging Details: Plastic stretch film, corrugated paper, Cartons, Plywood Pallet, bubble film, and metal strips, etc.
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 3000 Tons per month
Product Description

FIFO High-Density Very Narrow Aisle Pallet Racking System for Industrial Storage

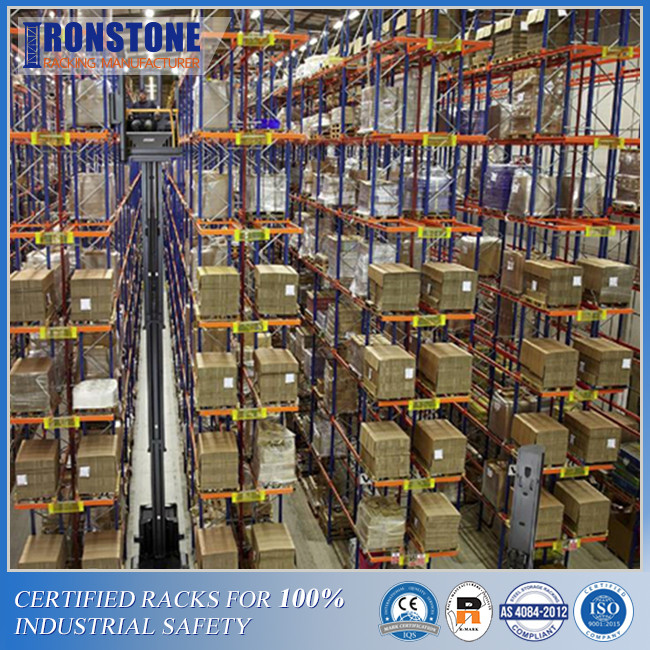

Very narrow aisle pallet racking system is a condensed version of selective pallet racking system. 100% selectivity is reserved while storage density is increased. As its name implies, space utilization rate is raised by decreasing the occupied space of aisles. Thus, a specialized forklift suitable for narrow aisles is essential in this system. Very narrow aisle pallet racking system is designed for extremely high warehouses.



For these warehouses, floor space is small, while vertical space is large. In order to make good use of the limited space, aisles for forklifts are narrowed and racks are heightened. Hence, a specialized forklift is needed for the system. It fits for tall warehouses with high storage density.



Name Warehouse rack Material

Roll-formed steel

Structural steel

Shelf levels 2~15 tiers per shelving unit Color (RAL Code) Green, Orange, Blue, Yellow, Etc.
Upright Frame Height 2500mm~15000mm Weight Capacity 500~3000kg per level
Beam Width 1000mm~3900mm Depth 700mm~1500mm
Finish Epoxy Powder Coated for corrosion prevention
Usage Cargos Storage
Package Plastic stretch film, corrugated paper, Cartons, wooden bars, crates, and metal strips, etc.
Accessories Bolts and nuts, Upright protectors, decks, etc.
Certification RMI/AS4084-2012 /CE/ ISO9001
Delivery time 7~25 days as per order quantity
Assembly & installation Detailed assembly instructions are available



High Productivity Very Narrow Aisle Racking System with Cheap Price 0



Features of very narrow aisle pallet racking system:


  • 100% selectivity, all pallets are accessible;


  • First in, first out handing method;


  • High-density storage, the width of aisles is lessened for more storage space;


  • High bay pallet racking system, the system is usually built-in high warehouse to make full use of the vertical space;


  • Cost more than selective racking system because it needs a specialized forklift which is expensive;


  • Desirable for storing bulk reserve but low-throughput products;



Material handling equipment: trilateral turret truck.



Maintenance: The demand for maintenance is simple. Except for routine checks for damaged parts, it is extremely critical to ensure the stability of the system in that it’s much higher than many other systems.



High Productivity Very Narrow Aisle Racking System with Cheap Price 1

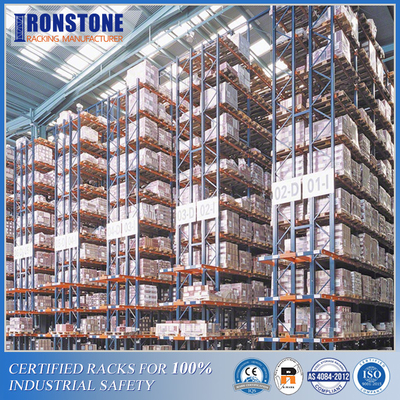

Not having enough floor space can lead to your warehouse being stuffed with homeless pallets placed wherever they may fit, however, a solution can be found within the height of the warehouse. Unused vertical areas in your warehouse can become viable by converting them into safe and secure storage for your pallets. Making full use of the spacious headroom of your warehouse, while reducing the width of aisles, can greatly increase your racking storage density.

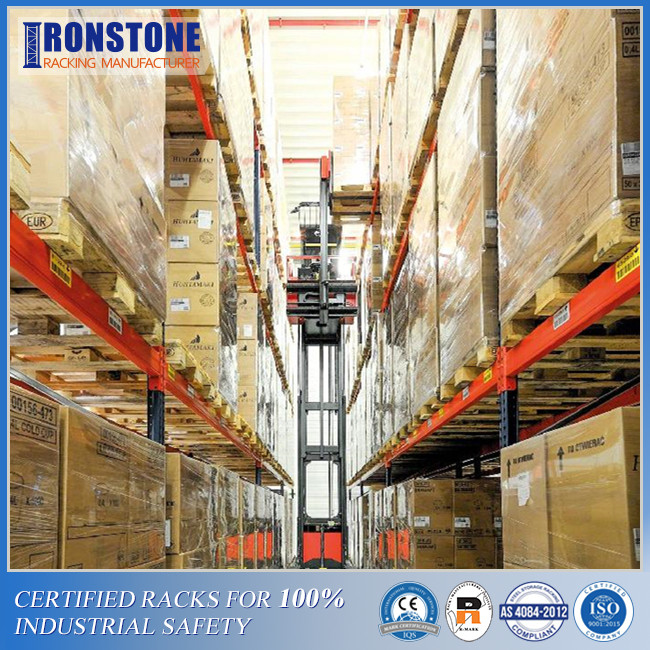

In very narrow aisle pallet racking systems, pallet racking is placed more tightly than other pallet racking solutions as they are loaded and unloaded using side loading forklifts; allowing for narrower aisles and efficient use of storage space. The amount of product stored and the warehouse footprint are the greatest. the VNA aisles are typically 6.6 feet wide, providing 44% more floor space than the optional pallet racking system.
