Durable Lithium Battery Radio Shuttle Pallet Rack System With High Volume Low SKUS

1*20ft
MOQ
USD$0.85/KG
Price
Durable Lithium Battery Radio Shuttle Pallet Rack System With High Volume Low SKUS
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Radio Shuttle Pallet Rack System
Material Type: Q355 Steel
Color: RAL Code: Blue, Green, Orange, Yellow, Grey, Galvanization, Etc.
Usage Range: General Warehouse Distribution, Logistics, Cold Warehouse Storage, E-Commerce, Manufacturing, Food&Beverage, Retail, 3PL, Automotive, Record Storage
Dimension: Customized As Required
Load Capacity: 500kgs~2000kgs/pallet
Certifications: (RMI) R-Mark Certification/ AS4084/ CE / ISO9001
Safety Accessories: Wire Decks, Column Protectors, Pallet Supports, Etc.
Products Package: Steel Strip, Stretch Film, Corrugated Paper, Bubble Film, Plywood Pallets
Services: Free CAD Design, ODM&OEM, Transportation, Project Installation, Systems Maintenance Etc.
High Light:

ODM Radio Shuttle Pallet Racking

,

Radio Shuttle Pallet Racking Q355

,

Q355 Radio Pallet Shuttle

Basic Infomation
Place of Origin: Jiangsu, China
Brand Name: Ironstone
Certification: RMI (R-Mark), AS4084, ISO9001, CE
Model Number: RSPRS Model
Payment & Shipping Terms
Packaging Details: Plastic stretch film, corrugated paper, Cartons, Plywood Pallet, bubble film, and metal strips, etc.
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 3000 Tons per month
Product Description

Advanced Automatic Radio Shuttle Pallet Racking System for High-Density Storage







The radio shuttle pallet racking system is a semi-automatic storage system. It is equipped with shuttle trucks that can be controlled by an operator with a controller. The forklift is in charge of loading and unloading pallet cargoes on the shuttle. And the shuttle is able to transport pallets to any position in each lane. The storage density and efficiency are high in the system and it is favorable for storing large volumes of products with high throughput.

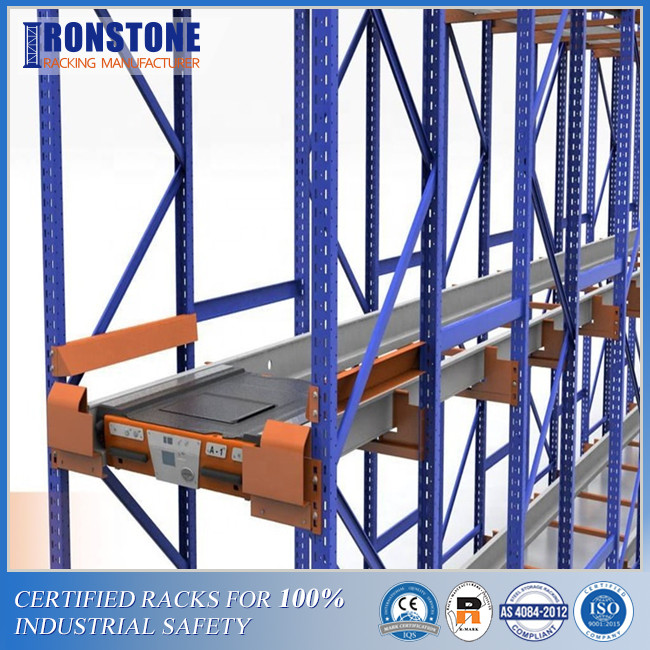

               Durable Lithium Battery Radio Shuttle Pallet Rack System With High Volume Low SKUS 0





Radio shuttle pallet racking is a semi-automated solution for storing large capacity palletized goods and large quantities of stored products. They are often used in warehouses and distribution centers for food and beverages, or warehouses with special storage conditions. Radio shuttles are particularly effective for distribution or logistics centres, where you may need fast and efficient supply and distribution.





At the same time, this type of pallet storage and retrieval system allows for maximum optimization of storage capacity as it reduces the need for aisles between racks. With this system, you can store different numbers of pallets in depth depending on specific needs or seasonal loads. At the same time, each pallet can be accessed quickly.







Name Pallet racking Material High Strength Steel
Beam levels 2~15 tiers per bay rack Color (RAL Code) Green, Orange, Blue, Yellow, Etc.
Upright Frame Height 2500mm~15000mm Weight Capacity 500~3000kg per level
Beam Width 1000mm~3900mm Frame Depth 700mm~1500mm
Finish Epoxy Powder Coated for corrosion prevention
Usage Cargos Storage
Package Plastic stretch film, corrugated paper, Cartons, wooden bars, crates, and metal strips, etc.
Accessories Bolts and nuts, Upright protectors, decks, etc.
Certification RMI/AS4084-2012 /CE/ ISO9001
Delivery time 7~25 days as per order quantity
Assemble & installation Detailed assembly instructions are available as well as dispatching installation engineer for project installing at site.







Instruction about Radio Shuttle Controlled Platform





The radio shuttle rack system uses a radio-controlled platform that moves automatically along the rack itself. The special design and engineering allow the platform to move smoothly, whether it is storing or retrieving pallets at this time.





The material handling machines do not need to enter the aisles of the radio shuttle storage system in order to place or retrieve pallets. This significantly reduces the distance they have to travel, reduces the need for new lifting equipment, reduces maintenance costs, and reduces costs for operators and drivers.





               Durable Lithium Battery Radio Shuttle Pallet Rack System With High Volume Low SKUS 1





There is less damage to the steel structure of the warehouse racking as the hoist does not need to access the racking system to place or remove pallets. Each radio shuttle platform relies on a very durable lithium battery with long autonomy, enough for over 16 hours of continuous operation. It is also extremely fast to recharge, taking less than 3 hours to complete.





The forklift truck driver can easily control all storage and retrieval movements of the automatic shuttle platform via remote control. The absence of forklift trucks in the warehouse tunnel and the construction of the system means that the risk of accidents is significantly reduced. At the same time, storage capacity is significantly increased.



              Durable Lithium Battery Radio Shuttle Pallet Rack System With High Volume Low SKUS 2





Characteristics of Radio Shuttle Pallet Racking System





  • The radio shuttle platform is capable of speeds of 0.8 m/s(loaded) to 1 m/s(unloaded).



  • This warehouse racking system is suitable for different types of pallets: Euro pallets, industrial pallets, and combination pallets. Of course, the platform can also transport large bags, plastic pallets, etc. Each pallet can weigh up to 25 kg.



  • Each pallet can weigh up to 25 kg. 1500 kg.



  • The storage system is used in refrigerated warehouses and can also be operated at temperatures up to -20°C.



  • The depth of the storage aisle per pallet unit is practically unlimited. The radio shuttle racking system can be adapted to different storage spaces.



  • The price includes very durable industrial batteries. They ensure 16 hours of operation and reduce charging times. Electromechanical lifting device for easy maintenance.



  • Radio shuttle racking systems for warehouses are available with LIFO and FIFO storage methods.​





                Durable Lithium Battery Radio Shuttle Pallet Rack System With High Volume Low SKUS 3
