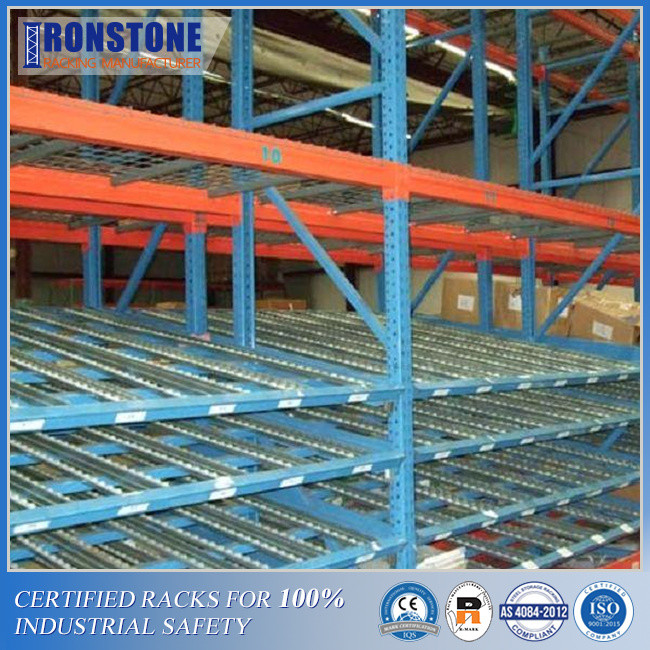

Steel Gravity Taken Storage And Picking Carton Flow Rack

1*20ft
MOQ
USD$0.85/KG
Price
Steel Gravity Taken Storage And Picking Carton Flow Rack
Features Gallery Product Description Request A Quote
Features
Specifications
Features: Using Gravity Forces To Facilitate Material Handling
Name: Gravity Flow Racking System
Material: High Strength Steel Q355, Q355
Application: Carton, Boxes, Pallets Storage And Picking
Dimension: H:1.5~3.0Mts,Depth: 0.45~1.2Mts, Width: 1~3.9Mts, Customizable As Request
Load Capacity: Light Duty, Medium Duty And Heavy Duty
Certification: RMI(R-Mark Certification)/ AS4084-2012 / CE / ISO9001
Components: Upright Frame, Beams, Galvanized Rollers, Bracing
High Light:

Q355 Carton Flow Rack

,

ISO9001 Warehouse Roller Racks

,

Q355 roller racking systems

Basic Infomation
Place of Origin: China
Brand Name: IRONSTONE
Certification: RMI, AS4084, ISO9001, CE
Model Number: CFR Model
Payment & Shipping Terms
Packaging Details: Plastic stretch film, corrugated paper, cartons, wooden bars, crates, and metal strips, etc.
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 3000 Tons per month
Product Description

Warehouse Roller Rack Gravity Flow Racking System For Industrial Storing And Picking









For most pallet racks, the basic components include frames, beams and some have support rails for product storage. This kind of racks are called static racks where material handling are simpley rely on forklifts or manpower. The standard selective pallet racks, double deep, VNA, cantilever rack, drive-in racking all belong to this style.





However, for engergy saving and efficiency improving, our creative rack  engineers invented some dynamic racks with rollers taking advantages from gravity, that can be general named as roller racks or gravity flow racks. Can you find some gravity flow racks with rollers in modern warehouses? Yes! Push back pallet rack, pallet flow racking and carton flow rack are all  commonly seen dynamic storage systems in warehouses, distribution centers and commerical occasions.







Similar Structures of Gravity Flow Racks





Gravity flow racks are often designed on the basis of typical pallet rack components and organizations. Upright frames and beams play the most fundamental role in any racking systems like the bones in human body. As the following picture indicated, carton flow, pallet flow and push back racks all use frames and beams to carry capacity loads and form storage bays.





Steel Gravity Taken Storage And Picking Carton Flow Rack 0







Dynamic Part of Gravity Flow Racks





To realize dynamic material handling, gravity taken components such as rollers, wheels and conveyors combined with inclined rail are the key to automatic product picking and placing which consist of the flow system.





In push back pallet rack, nested carts with wheels carry the pallet loads move in and out the system; while in carton flow, slanted rails equipped with small rollers will responsible for the cartons fast placing and picking; for some pallet flow system, galvanized rotary drums will be installed into the bays for automatic storage and retrieval. Though slighlty different, they follow the same rules applying gravity into the working procedure.




Steel Gravity Taken Storage And Picking Carton Flow Rack 1







Working Features and Specifications





Rack Name Gravity flow rack, roller rack, dynamic rack
Rack Type Push back, carton flow, pallet flow
Upright Section 80*60, 90*60, 90*70, 100*70,120*95
Beam Section 80*50/100*50mm
Product Material Customized, good quality steel, Q355, Q355, galvaized steel
Load Capacity 1000/1500kg per pallet load
Storage Layer Customzied, 2-6 Adjustable layers
Features FIFO inventory rotation, fast and efficient
Surface finish Powder Coated for corrosion protection







Gravity flow racks are highly recommended for the following features:





♦ High denstiy storage solutions using deeper storage positions without redundant aisles wastes





♦ Optional rollers with ranged load capacity from light duty to heavy duty





♦ Following First-in/First-out material handling method each lane





♦ Loading and unloading happen at two different sides for improved safety and efficiency





♦ Better accessibility and visibility with less working pressure





♦ Maximized productivity resulted from continuous inventory replenishment







Steel Gravity Taken Storage And Picking Carton Flow Rack 2
