Dynamic Carton Flow Rack For High Volume Case-pick Application

1*20ft
MOQ
USD$0.85/KG
Price
Dynamic Carton Flow Rack For High Volume Case-pick Application
Features Gallery Product Description Request A Quote
Features
Specifications
Certification: RMI(R-Mark Certification)/ AS4084-2012 / CE / ISO9001
Name: FIFO Pallet Flow Racking System
Material: High Strength Steel-/American Standard Steel
Color: RAL Code: Blue, Orange, Yellow, Grey, White, Etc.
Usage: General Warehouse Distribution, Logistics, Cold Warehouse Storage, E-Commerce, Manufacturing, Food&Beverage, Retail, 3PL, Automotive, Record Storage
Dimension: Customized As Required
Load Capacity: 200kgs~1000kgs/Layer, 1200kgs~6000kgs/Bay
Services: Free CAD Design, ODM&OEM, Transportation, Project Installation, Systems Maintenance Etc.
High Light:

2000kgs FIFO Flow Rack

,

FIFO Flow Rack 700mm

,

2000kgs gravity flow rack system

Basic Infomation
Place of Origin: China
Brand Name: IRONSTONE
Model Number: FIFO PFR Model
Payment & Shipping Terms
Packaging Details: Plastic stretch film, corrugated paper, cartons, wooden bars, crates, and metal strips, etc.
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 3000 Tons per month
Product Description

FIFO High-Density Pallet Flow Racking System for Heavy-Duty Storage

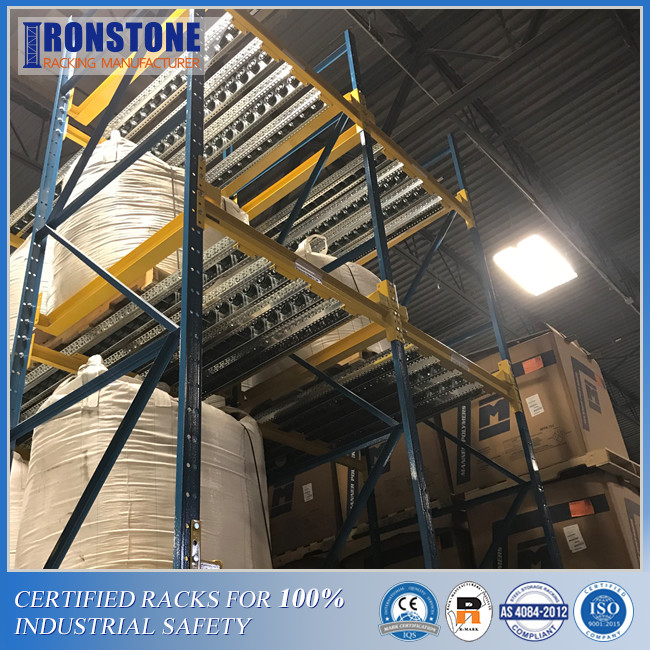

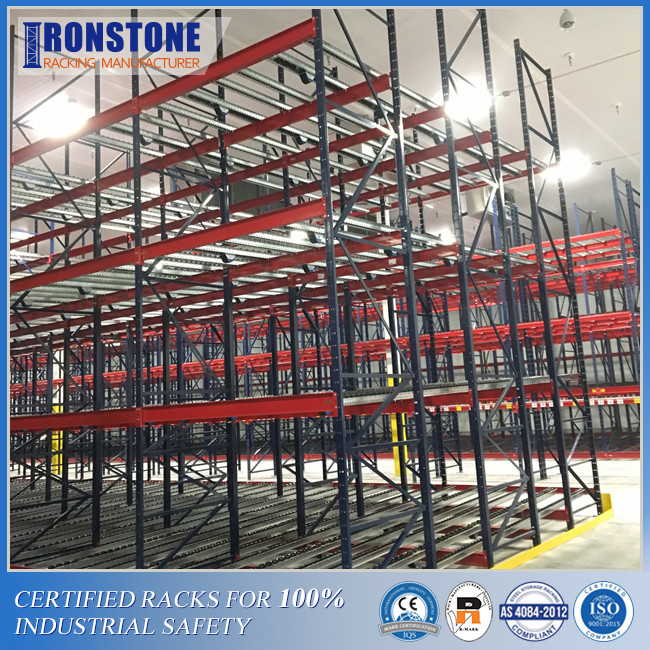

Pallet flow racking system is regarded as an effective high-density storage solution that realizes semi-automatics by combining rack structure with elevated rails and dynamic components including wheels, rollers, conveyors, etc. With slightly inclined rails, pallet flow racking system is able to take the advantage of gravity. Pallets ready for loading will be placed on the high end of the rolling lanes in the system. And once pallets are laid on these slightly sloping lanes, they would move towards the low end under the function of gravity for unloading.





Compared with standard selective pallet racking system, pallet flow racking system is able to store more pallet loads in the same amount of space, thus, it is categorized as a high-density storage system. There is no aisle in the interior of pallet flow racking system and forklifts do not have to drive into the system to handle loads. In fact, it only needs two aisles: one aisle is used for loading and the other aisle is served as unloading aisle, greatly enhancing the storage density of the system since multiple pallet loads can be aligned back-to-back without aisle among them.





Therefore, pallet flow racking system can reduce a variety of operational expenditures like forklift, labor and energy, which can compensate or even exceed the cost of the system construction if storage density is up to a certain degree.





Pallet flow racking system follows first-in, first-out (FIFO) load rotation order. The flow storage system is based on the following two parts:





  • Dynamic elements that move products down the flow lane







  • Static elements that physically support the system







Name Pallet flow rack Material Steel
Shelf levels 2~12 tiers per shelving unit Color Customized
Gray/White/Black/Blue
Height Customized
1500mm~5000mm
Weight Capacity 150~800kg per shelf
Width Customized
1000mm~2700mm
Depth Customized
400mm~1200mm
Finish Epoxy Powder Coated Corrosion Prevention
Usage Cargoes/Boxes/Non-palletized product Storage
Package Plastic stretch film, corrugated paper, cartons, wooden bars, crates, and metal strips, etc.
Certification RMI/AS4084-2012 /CE/ ISO9001
Delivery time 7~25 days according to order quantity
Assemble & installation Easy assemble with detailed instruction







Dynamic Carton Flow Rack For High Volume Case-pick Application 0

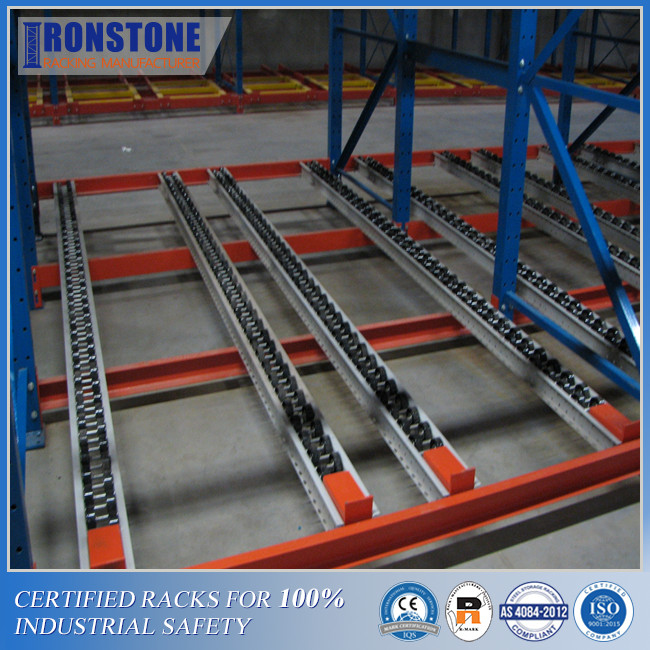

Dynamic elements refer to the wheels or rollers installed within the declining frame which are in charge of carrying pallet cargoes from the high end of the flow system to the opposite end by means of gravity. Based on the dynamic design, the pallet flow racking system is able to effectively store and retrieve cargo and keep high-density storage at the same time.

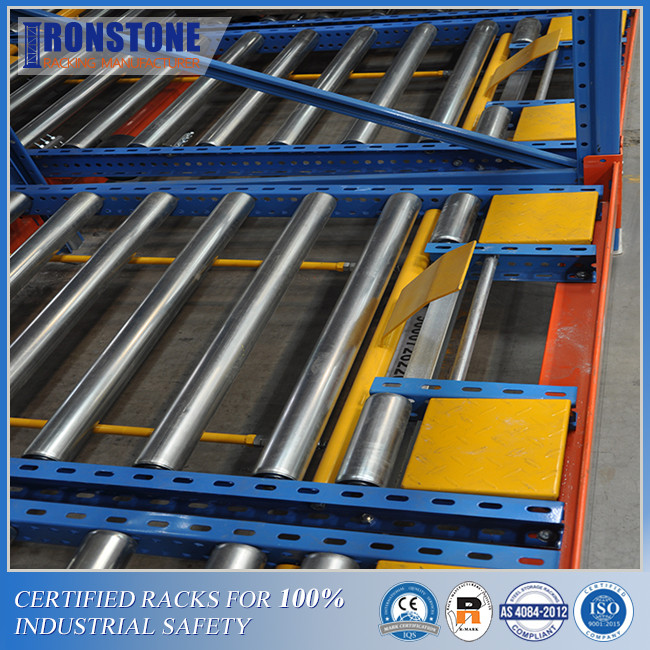

Static elements include rack frames and some specialized components used for improving safety. There are brakes at the intervals within the flow rail system which is used to control the speed of moving pallets, protecting the pallet and pallet load from undue jolts and impacting each other, causing possible product damage or rack damage.





In addition, there are pallet entry guides at the high end of the system used to help forklift operator position the pallets correctly within the pallet flow racking system. Besides, pallet ramp is another safety component, which is set at the exit end of each flow lane to reduce end impact and help bring pallet loads to a gentle stop.







Features and Advantages of Pallet Flow Racking System:





  • Provides high-density storage





  • First-in, first-out (FIFO) inventory control, with semi-automatic inventory rotation





  • Best for storage of similar items and high-volume items





  • Made up of dynamic flow rail and static rack structure





  • Pallets are loaded on the inclined high end and unloaded on the opposite (declined) end





  • Flow created by loading action and gravity with no energy consumption





Dynamic Carton Flow Rack For High Volume Case-pick Application 1
