Galvanized Rollers Pallet Racking Carton Flow Rack

Galvanized Rollers Pallet Racking Carton Flow Rack
Features Gallery Product Description Request A Quote
Features: Gravity Taken, Automatic Pallet Movement, Efficient Material Handling
Name: Pallet Flow Racking System
Material: High Strength Steel
Color: RAL Code: Blue, Orange, Yellow, Grey, White, Etc.
Usage: General Warehouse Distribution, Logistics, Cold Warehouse Storage, E-Commerce, Manufacturing, Food&Beverage, Retail, 3PL, Automotive, Record Storage
Dimension: H:1.5~3.0Mts,Depth: 0.45~1.2Mts, Width: 1~3.9Mts, Customizable As Request
Load Capacity: 200kgs~1000kgs/Layer, 1200kgs~6000kgs/Bay
Certification: RMI(R-Mark Certification)/ AS4084-2012 / CE / ISO9001
Components: Upright Frame, Beams, Galvanized Rollers, Bracing
Accessories: Roller Support, Brakes, Dampers, Separator Devices
High Light:

1000kg flow through pallet racking


flow through pallet racking 1350mm


1000kg industrial flow rack

Basic Infomation
Place of Origin: China
Certification: RMI, AS4084, ISO9001, CE
Model Number: CFR Model
Payment & Shipping Terms
Packaging Details: Plastic stretch film, corrugated paper, cartons, wooden bars, crates, and metal strips, etc.
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 3000 Tons per month
Product Description

Efficient Material Handling Factory Customized Pallet Flow Rack With Galvanized Rollers

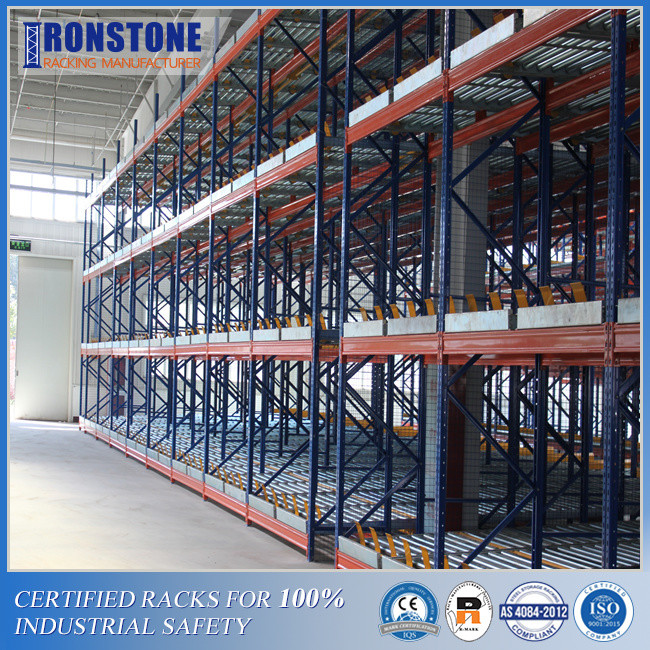

Pallet flow rack is one important application of gravity flow system in storage industry. Exploiting sloped rollers in a row, pallets loads can move automatically from vantage point to lower end at a controlled speed with FIFO(first-in/first-out) principle. Having fully stocked picking face, pallet loads flow into aisle position one by one gently and safely.




Pallet Flow Rack Specification



Product Name Pallet flow racking
Material Cold-rolled Steel
Upright Section 80*60, 90*60, 90*70, 100*70,120*95
Beam Section 80*50/100*50mm
Product size




Thickness Upright:2.0/2.5mm
Load Capacity 1000/1500kg per pallet load
Layer 2-6 Adjustable layers, customized)

Upright:Blue, Beam:Orange,

Customtized color

Surface finish Powder Coated




Galvanized Rollers Pallet Racking Carton Flow Rack 0




Structures and Design Details



Pallet flow racking system includes the following major components and accessories.



♦ Upright frames: the basic structure of this whole system



♦ Beams: weight bearing part



♦ Rollers: the key part for pallet automatic movement engineered with certain angle



♦ Roller supports: support the rollers fixed on the beams



♦ Separator devices: separate the first pallet with others behind



♦ Dampers: control the pallet load movement speed



♦ Head stop board and rear stop board: guide the forklift for product picking and placing




Galvanized Rollers Pallet Racking Carton Flow Rack 1







Galvanized Rollers Pallet Racking Carton Flow Rack 2




► Pallet flow rack offers high density storage capacity with compact storage bays leaving only two aisles for product picking and placing.



► The safety of this gravity taken system has been guaranteed since forklifts never enter the racking structure for material handling.



► Solving the problems of temporary storage and fast turnover that time-sensitive inventory have obeying FIFO rules.



►Pallet flow system decreases the frequency product being handled with improved throughput and working effiency.








Price is the major concern for warehouse owners who have interest in this efficient system. The customized galvanized rollers are relatively expensive compared to other parts of the racks. However, if you have enough budget and pursue long-term energy saving and labor saving solution, pallet flow rack system is a good choice that you should consider.



Galvanized Rollers Pallet Racking Carton Flow Rack 3
