Certified Heavy Duty Customized Industrial Metal Rack

1*20ft
MOQ
USD$0.85/KG
Price

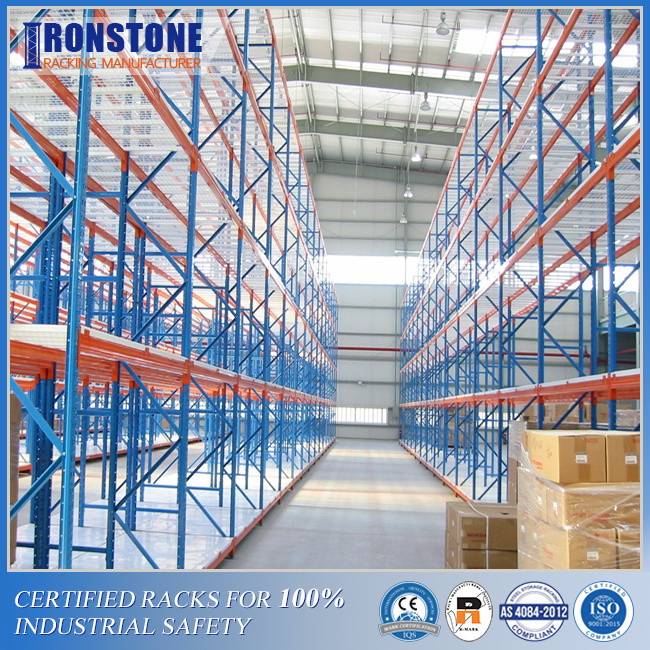

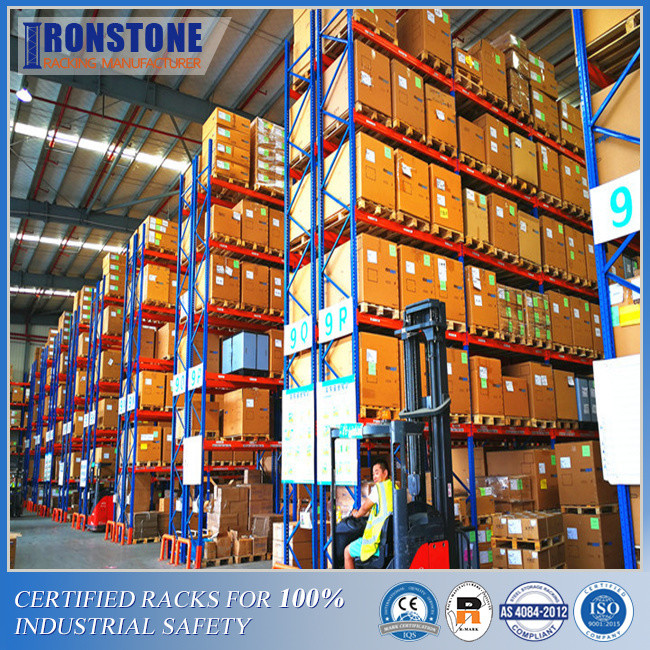

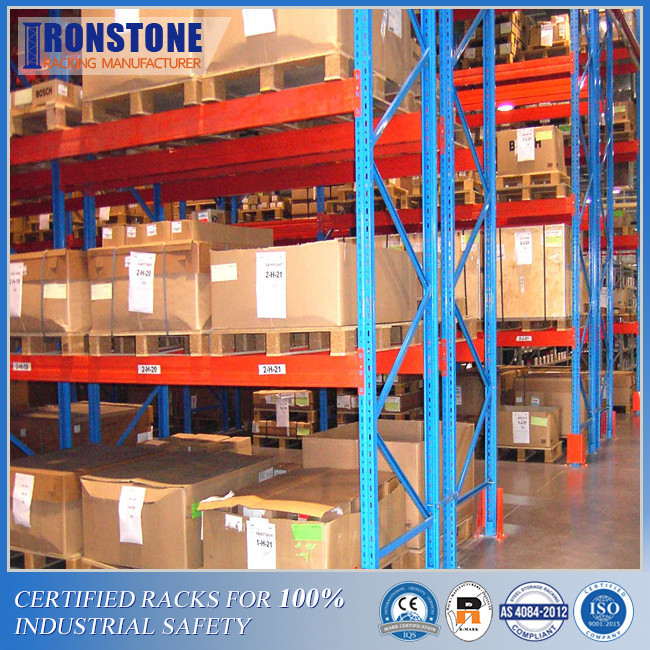

Certified Heavy Duty Customized Industrial Metal Rack
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Heavy Duty Selective Pallet Racking
Color: RAL5017(Blue), RAL2004(Pure Orange), RAL1037(Safety Yellow), Or Custom Color As Request
Dimension: H:2~16.5Mts,Depth: 0.6~1.5Mts, Width: 1~3.9Mts, Customizable As Request
Certification: RMI / AS4084-2012 / CE / ISO9001
Specification: Upright Capacity, Beam Capacity, Static Load
Brand: Ironstone, OEM/ODM Available
Application: Logistic Parties, Distribution Centers, Industrial Facilities
Weight Bearing: Medium Duty To Heavy Duty
Corrosion Protection: Electrostatic Powder Coated, Galvanized
Materials: High Strength Steel/American Standard Steel
High Light:

Galvanized CE Heavy Duty Industrial Racking

,

Industrial Racking System 600mm

,

1500mm industrial warehouse pallet racking

Basic Infomation
Place of Origin: Jiangsu, China
Brand Name: Ironstone
Certification: RMI, AS4084, ISO9001, CE
Model Number: HD-S
Payment & Shipping Terms
Packaging Details: Plastic stretch film, corrugated paper, cartons, wooden bars, crates, and metal strips, etc.
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 3000 Tons per month
Product Description

CE Certified Heavy Duty Selective Pallet Racking With Large Loading Capacity







Selective pallet racking, the conventional warehouse storage and retrieval system, should always be operated at maximum loading capacity for safety and durability. If you ever feel confused about the calculation of the racks' load capacity and products' weight limits each bay can hold, this article may help to clear your mind.



When talking about rack capacity, let's start with its main weight-bearing components: upright frames and beams, which work together contributing to the whole structure's integrity and stability.





Here's a beam and upright loading capacity chart for your reference





Beam Loading Capacity (Kg/pair)

Section

Size(mm)

Beam Deflection=L/300

Beam Length(mm)

1800 2000 2300 2500 2700 3000 3300 3600
80*50*1.5 2400 1950 1250 1050 900 800 600 400
100*50*1.5 4000 3300 2100 1800 1500 1250 1000 850
110*50*1.5   4000 2700 2300 1900 1600 1300 1100
120*50*1.5     3200 2700 2300 1900 1500 1300
140*50*1.5       3850 3300 2700 2300 1900
160*50*1.5         4600 3700 3100 2600





Upright Frame Loading Capacity (kg)
Upright Section Size(mm) Thickness(mm) Depth of frames(mm) Loading Capacity(kg)
80*60 1.8 800/900/1000/1050 6000
2.0 900/1000/1050/1100 8000
90*70 1.8 800/900/1000/1050 8000
2.0 900/1000/1050/1100 11000
100*70 2.0 900/1000/1050/1100 13000
2.3 900/1000/1050/1100 15000
2.5 900/1000/1050/1100 16500
120*95 2.0 900/1000/1050/1100 18000
2.3 900/1000/1050/1100 20000
2.5 900/1000/1050/1100 22000
3.0 900/1000/1050/1100 26000







Certified Heavy Duty Customized Industrial Metal Rack 0





Beam Capacity





Beam capacity often refers to a pair of beams' capacity since they work together in each bay. Under vertical pressure and horizontal tension, beams undertake the pallet weight and then transfer that to the uprights. The beam distance between two layers is adjusted to pallet load sizes.



Usually, at each beam level, two pallet positions are designed. In that case, the total weight of two pallet loads must be less than the beam capacity at each level.





Certified Heavy Duty Customized Industrial Metal Rack 1





Allowable Beam Deflection Formula





Certified Heavy Duty Customized Industrial Metal Rack 2





Upright Capacity





Taking one bay unit as an example, two upright frames placed left and right with connecting beams form a basic storage unit. After the cargo is loaded on the beams, uprights will immediately bear the compression force transferred to by-products and other related parts.



The capacity each upright will hold will be determined by the load weight and the beam length. In this situation, the term "Deflection" is used to measure the vertical beam deviation distance when loaded.





Certified Heavy Duty Customized Industrial Metal Rack 3





When choosing the proper rack material that satisfies your storage requirement, there are some points that are worth your attention.





► In actual application, the first-level loads are usually placed on the ground for cost-saving.



► All the load capacity terms we mentioned before refer to static loads.



► Both beams and uprights' maximum load capacity should be met.



► All the racks should be installed on the floor fulfilling certain project requests.



► Racks including frames, beams, and other accessories should be correctly assembled.



► Capacity redundancy should be left for long-term safety operations and potential damage.





Certified Heavy Duty Customized Industrial Metal Rack 4



Questions You May Care About:



Q1:Does all racks produced by your company?

A1: Yes, we're a direct manufacturer with over 20 years of experience, main products of us include Pallet Racking, Shelving, Radio Shuttle, Cantilever, Mezzanine, etc. All products are 100% produced by ourselves.



Q2: Where is your company located?

A2: Our factory is located in Jiangning District, Nanjing, Jiangsu, China, close to Nanjing Port, convenient for delivery. 90,000 sqm production plant, which enables a strong production capacity and stable quality.



Q3: What certification do your products pass?

A3: We're ISO9001 certificated company. Rack systems are strictly designed and produced based on CE and AS4084:2012 standards for storage racks, and comply with FEM and RMI standards.



Q4 How long of your warranty period?

A4: We afford a 10-year warranty and lifetime insurance services for all racking products. For any quality issues that are caused by the quality of products, we'll provide free parts for replacement.



Q5:Do you provide the samples?

A5:We can provide the product samples for you to test. Samples can be transported by sea, land, and air.



Q6: When is the delivery time?

A6: It usually takes 25 to 30 days. But the exact delivery time is different for different order quantities.



  • Packaging and installation of our products

Certified Heavy Duty Customized Industrial Metal Rack 5

Certified Heavy Duty Customized Industrial Metal Rack 6







  • Our product certificates

  • Certified Heavy Duty Customized Industrial Metal Rack 7

  •
