High Storage Performance Mezzanine Floor Design Multi Level Racks System

High Storage Performance Mezzanine Floor Design Multi Level Racks System
Features Gallery Product Description Request A Quote
Certification: RMI / AS4084-2012 / CE / ISO9001
Material: High Strength Steel
Color: RAL Code: Blue, Orange, Yellow, Grey, White, Etc.
Usage: General Warehouse Distribution, Logistics, Cold Warehouse Storage, E-Commerce, Manufacturing, Food&Beverage, Retail, 3PL, Automotive, Record Storage
Dimension: H:2~16.5Mts,Depth: 0.6~1.5Mts, Width: 1~3.9Mts, Customizable As Request
Load Capacity: 500kgs~4000kgs/Layer, 4000kgs~30000kgs/Bay
High Light:

AS4084 storage Mezzanine Platforms


storage Mezzanine Platforms 200kg


200kg mezzanine platform design

Basic Infomation
Place of Origin: China
Model Number: MRS Mode
Payment & Shipping Terms
Packaging Details: Plastic stretch film, corrugated paper, Cartons, wooden bars, crates, and metal strips, etc.
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 3000 Tons per month
Product Description

 High Storage Performance Mezzanine Floor Design Multi Level Racks System




Mezzanine rack system is a cost-effective storage solution to make best use of vertical space by doubling or tripling the usable surface area in your facility. The second and the third platform are supported by the upright frames of racks standing on the floor, so the system is also called rack supported mezzanine.



With a mezzanine rack system, your warehouse can provide you with additional work areas or storage space without incurring costly renovations or moving to a new facility. Based on your budget and storing requirements, mezzanine can be equipped with different types of floors including wood, steel and grille, and a variety of accessories including stairs, handrails, elevators, etc.



Size Customized
Loading Capacity 200-800kg per square meter
Design Free designing
Regarding your storage requirement select suitable material
Features Upper space could be used to place goods and racks
Its good loading capacity enables its users to put goods on any parts
The upstairs can be used as office and the downstairs as warehouse as a result of its unique structure
The space between posts is usually from 3m to 4m, and that between sub-beam is 1.2m
Color RAL5005, RAL5015, RAL2004, RAL7035...or as your requirement





Common Mezzanine Components



  • Flooring: Choose from resin board, corrugated decking, bar grating, and open steel planking.


  • Staircase: Numerous models and options available including number of rails, angles, risers, tread, and step width.


  • Handrail: Handrails are designed to keep employees safe.


  • Loading Gate: It is used to expedite proper material handling. Options include single swing gate, double swing gate, sliding gate, lift-out safety gate, and safety pivot gate.


  • Elevator: To help product move efficiently to and from the mezzanine level.


  • Chute: Cargoes can slide from the mezzanine floor to the ground floor through the chute, improving working efficiency.


  • Kickplate: Kickplate contributes to the safety of workers in warehouse. With the kickplate, falling goods will not slide off the edge and potentially hitting personnel on the level below.


  • Rear Decking: Used to protect cargoes from accidentally falling.

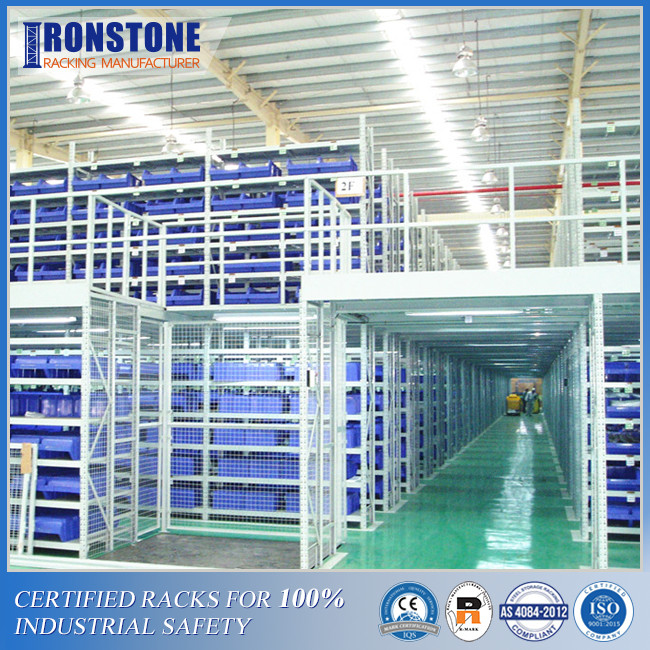

               High Storage Performance Mezzanine Floor Design Multi Level Racks System 0



Advantages of the mezzanine rack system


  • Optimize space utilization rate: It takes full advantage of underutilized air space in your warehouse to multiply the available surface area, allowing for more storage and operational space.


  • Easy assembly and dismantlement: Mezzanine floors can be easily integrated into existing warehouse racks, making installation easy and vice versa.


  • Cost-effective: It creates more space for storage without expanding your facility so as to save money.


  • Customized configuration: Based on your storing requirements, the mezzanine floor can be expanded, moved, or modified, and the mezzanine system can be designed to meet specific framing options, safety codes, access point requirements, flooring types, and product loading and unloading operations.


  • Versatile application: A mezzanine rack system can combine with a carton flow rack, cantilever rack, shelving, selective rack, pallet flow rack, conveyor, etc. to store all kinds of products in your warehouse. Besides, the increased surface area leaves enough space for both storage and operation.


  • Improved working efficiency: Multi-tier configuration enables parallel picking across multiple tiers, improving the efficiency of storing and retrieving goods.​

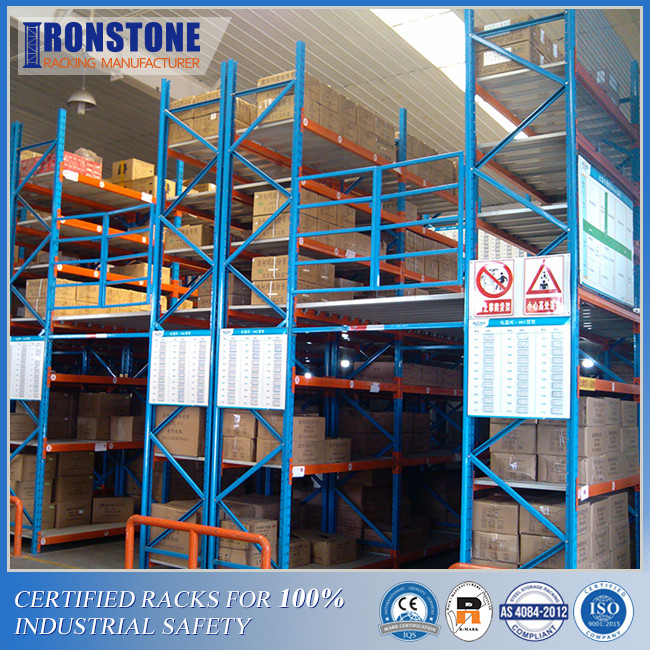

                 High Storage Performance Mezzanine Floor Design Multi Level Racks System 1




Tips for Mezzanine Rack System


  • Mezzanine rack system is ideal for any warehouse, distribution center, or manufacturing facility with available air space.


  • Do not block or clutter the staircase of the mezzanine in case of obstructing the access, causing workers falling down from stairs on the process of storing and retrieving goods.


  • Remember the load limit of the mezzanine and the overall weight placed on the mezzanine floor should not exceed the load limit.


  • Before installing a mezzanine rack system, make sure that the mezzanine is compliant with all the relevant rules and regulations.


  • Equip your mezzanine with proper accessories to ensure the safety of workers and goods, and optimize operations on the mezzanine.

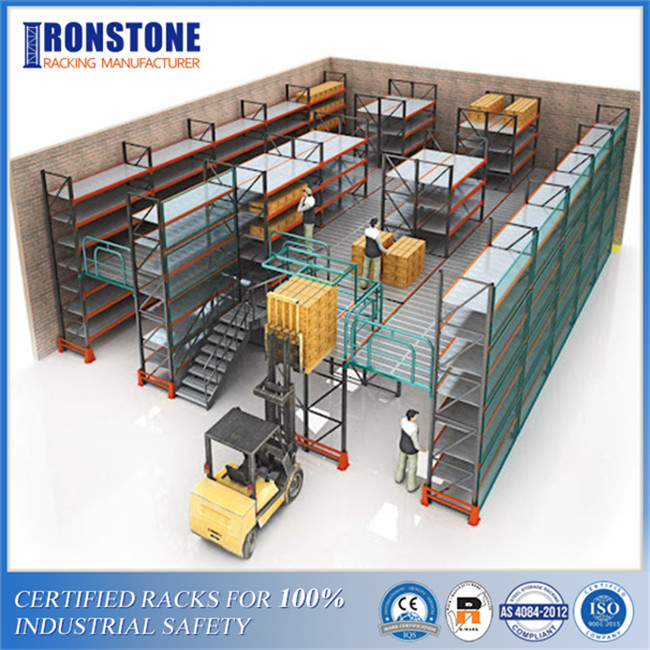

                     High Storage Performance Mezzanine Floor Design Multi Level Racks System 2
