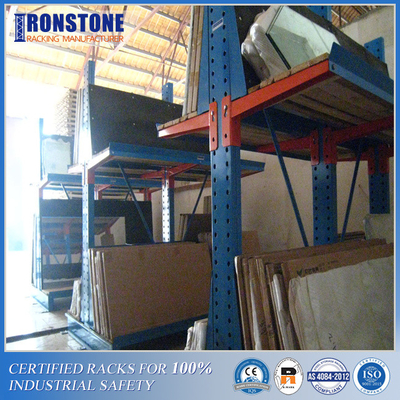

New Type Heavy Duty Cantilever Steel Rack for Indoor or Outdoor Storage

New Type Heavy Duty Cantilever Steel Rack for Indoor or Outdoor Storage
Features Gallery Product Description Request A Quote
Name: Pipe Rack, Lumber Rack, Timber Rack
Material Type: High Strengh Steel-Q355/Amercian Standrad Steel
Color: RAL Code: Blue, Green, Orange, Yellow, Grey, Galvanization, Etc.
Dimension: H:2~16.5Mts,Depth: 0.6~1.5Mts, Width: 1~3.9Mts, Customizable As Request
Load Capacity: 500kgs~4000kgs/Layer, 4000kgs~30000kgs/Bay
Certifications: RMI / AS4084-2012 / CE / ISO9001
Safety Accessories: Wire Decks, Column Protectors, Arm Stop Pins, Etc.
Products Package: Steel Strip, Stretch Film, Corrugated Paper, Bubble Film, Plywood Pallets
Services: Free CAD Design, ODM&OEM, Transportation, Project Installation, Systems Maintenance Etc.
Usage Range: In-door And Out-door Warehouses , Logistics, Manufacturing, Food&Beverage, Retail, Automotive, Mobile Storage
High Light:

2 Tiers Cantilever Racking System


Cantilever Racking System 1000kgs


1000kgs Bearing Industrial Cantilever Racks

Basic Infomation
Place of Origin: Jiangsu, China
Brand Name: Ironstone
Certification: RMI, AS4084, ISO9001, CE
Model Number: HD-CRS
Payment & Shipping Terms
Packaging Details: Plastic stretch film, Corrugated paper, Cartons, Plywood Pallet, Bubble film, and Metal strips, etc.
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 3000 Tons per month
Product Description

Customized Sizes Of Cantilever Racks For Different Load Capacity Product Storage





Different Types of  Cantivlever Rack



Cantilever rack, having different loading capacity,  can be divided into light duty, medium-duty and heavy duty cantilever.



Light duty cantilever racking, usually made with angle steel, can store light loads with weight less than 250kg.



Medium duty cantilever racks, usually made from roll-formed gauge steel, are the most popular one in cantilever systems. Using different gauges of steels means different loading capacity, which you can customize to adjust to different requirement.



Heavy duty cantilever racking, are usually constructed with structural steels having very high loading capacity. Normally, cantilever racks made from structural steel can hold more heavy loads than roll-formed.




Specifications of Cantilever Rack


Name Cantilever rack Material High Strength Steel
Arm levels 2~10 tiers per bay Color (RAL Code) Green, Orange, Blue, Yellow, Etc.
Upright Frame Height 2500mm~10000mm Weight Capacity 200~1200kg per arm
Arm Length 800mm~1500mm Frame Distance 500mm~1600mm
Finish Epoxy Powder Coated for Corrosion Prevention
Usage Long and Bulky Cargoes Storage
Package Plastic stretch film, Corrugated paper, Cartons, Wooden bars, Crates, Metal strips, etc.
Accessories Bolts and nuts, upright protectors, decks, etc.
Certification RMI/AS4084-2012 /CE/ ISO9001
Delivery Time 7~25 days as per order quantity
Assemble & Installation Detailed assembly instructions or dispatching installation engineer for project installing at site.




New Type Heavy Duty Cantilever Steel Rack for Indoor or Outdoor Storage 0




For the loading capacity, there’s something that worth your attention.



1. Upright capacity vs Arm capacity



In a cantilever racking system, the main components that bear weight are the upright column and the arms. So we get the corresponding terms: upright capacity and arm capacity. The two parts, as well as the rack’s configuration, all joined together to decide the total loading capacity of a cantilever rack. You don’t need to know the complicated calculation formular, but during the process of using, you must guarantee both upright capacity and arm capacity are fully qualified for safety concern.



2. Uniform Distributed Load



The loading capacity we talked before all based on the calculation of the UDL(uniform distributed load), which means loads are evenly distributed on the arms. So during practical operation, uneven placed loads may cause pointed loads resulting unexpected results.




How to choose your own cantilever ?



If you decided to choose the cantilever racking system for your warehouse, some parameters you should know.



Parameters That Matter



1. Loads



When choosing the proper cantilever racking system, make sure you familiar with your products and measure the sizes of your loads accurately.(eg. length, height, width, weight)



New Type Heavy Duty Cantilever Steel Rack for Indoor or Outdoor Storage 1




2. Arms



♦ The number of arms are decided by the height of the upright columns and the loads.



♦ The length of the arm is up to the depth and weight of the loads, the former should always be longer than the latter.



♦ The distance between two adjacent arms is taken up by the height of the load and the required clearance for handling.



♦ The arm capacity is determined by the overall weight of a loading level and number of arms that carry the weight.



♦ The arm spacing should be decided by considering the length of the load and the number of arms that hold it.



♦ Usually, the load should overhang the end arms by one-half the distance from upright center-line to upright center-line.



♦ Unreasonable arm spacing and overhang of loads may lead to serious accident.





New Type Heavy Duty Cantilever Steel Rack for Indoor or Outdoor Storage 2




3. Uprights



♦ The height of the uprights is affected by the height of the ceiling and the materials handling equipment you are using.



♦ The upright capacity is based on several factors: the arm capacity, the number of the arms and the number of uprights.



New Type Heavy Duty Cantilever Steel Rack for Indoor or Outdoor Storage 3




All in all, choosing the right cantilever racking system with proper sizes and loading capacity will help you improve your space utilization and material handling efficiency leading to a maximization of your profits.



However, if you want to have a perfect cantilever racking system that best suits to your warehouse while don’t want to bother yourself with all these troubles of learning and researching, you can always contact us for your personal consultant. A whole package of excellent services including design, manufacture, installation and maintenance will be delivered to you with reasonable price.




New Type Heavy Duty Cantilever Steel Rack for Indoor or Outdoor Storage 4
