Heavy Duty Very Narrow Aisle (VNA) Pallet Rack System For Automotive Storage

1*20ft
MOQ
USD$0.85/KG
Price
Heavy Duty Very Narrow Aisle (VNA) Pallet Rack System For Automotive Storage
Features Gallery Product Description Request A Quote
Features
Specifications
Material Type: High Strength Steel/American Standard Steel
Color: RAL Code: Blue, Green, Orange, Yellow, Grey, Galvanization, Etc.
Usage Range: General Warehouse Distribution, Logistics, Cold Warehouse Storage, E-Commerce, Manufacturing, Food&Beverage, Retail, 3PL, Automotive, Record Storage
Dimension: H:2~16.5Mts,Depth: 0.6~1.5Mts, Width: 1~3.9Mts, Customizable As Request
Load Capacity: 500kgs~4000kgs/Layer, 4000kgs~30000kgs/Bay
Certifications: RMI / AS4084-2012 / CE / ISO9001
Safety Accessories: Wire Decks, Column Protectors, Pallet Supports, Etc.
Products Package: Steel Strip, Stretch Film, Corrugated Paper, Bubble Film, Plywood Pallets
Services: Free CAD Design, ODM&OEM, Transportation, Project Installation, Systems Maintenance Etc.
High Light:

3000kg VNA Storage System

,

ISO9001 VNA Storage System

,

ISO9001 narrow pallet racking

Basic Infomation
Place of Origin: Jiangsu, China
Brand Name: Ironstone
Certification: RMI, AS4084, ISO9001, CE
Model Number: HD-SPS
Payment & Shipping Terms
Packaging Details: Plastic stretch film, corrugated paper, Cartons, Plywood Pallet, bubble film, and metal strips, etc.
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 3000 Tons per month
Product Description

Efficient Very Narrow Aisle Pallet Racking System for Warehouse with Limited Storing Space







Very narrow aisle(VNA) pallet rack system is a variation of standard selective pallet rack system. It reduces the width of aisles to leave more space for storage. Racks are designed tall so as to make best use of limited available space in warehouse.





By narrowing aisle width, more racks can be compacted into a warehouse to produce more space for cargoes. Usually, the aisle width can be reduced by up to 1.5m which saves up to 40% space for storage.







Name Warehouse rack Material Steel
Shelf levels 2~15 tiers per shelving unit Color (RAL Code) Green, Orange, Blue, Yellow, Etc.
Upright Frame Height 2500mm~15000mm Weight Capacity 500~3000kg per level
Beam Width 1000mm~3900mm Depth 700mm~1500mm
Finish Epoxy Powder Coated for corrosion prevention
Usage Cargos Storage
Package Plastic stretch film, corrugated paper, Cartons, wooden bars, crates, and metal strips, etc.
Accessories Bolts and nuts, Upright protectors, decks, etc.
Certification RMI/AS4084-2012 /CE/ ISO9001
Delivery time 7~25 days as per order quantity
Assembly & installation Detailed assembly instructions are available









Since working aisles are narrowed to save space for storage, standard counterbalance forklift is not suitable in the system and a special forklift called trilateral forklift is required for storing and retrieving cargoes in very narrow aisle pallet rack system.





Trilateral forklift can rotate its fork to reach both sides’ cargoes without turning the direction of truck, so it is able to operate in very narrow aisles. Besides, sometimes there is a guide rail in the aisle of VNA pallet rack system to guide the direction of forklifts in very narrow aisles.

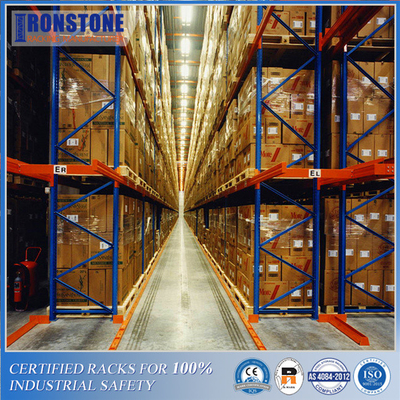

               Heavy Duty Very Narrow Aisle (VNA) Pallet Rack System For Automotive Storage 0





VNA pallet rack system remains the most prominent advantage of the standard selective pallet rack system that is 100% selectivity. The height and depth of racks are customizable and depend on customers’ storage needs. But usually, it’s designed as tall as possible to make best use of available vertical space.







How does very narrow aisle pallet rack system work?





Very narrow aisle pallet rack combines the advantages of selective pallet rack and a high-density pallet rack that it make better use of available space in facility and at the same time maintain direct access to all the stored pallets.





Very narrow aisle pallet rack system has to be equipped with specialized forklifts especially designed for narrow aisles. There are guide rails on both sides of the aisle so as to guarantee the safe movement of forklifts. Forklift in narrow aisles doesn’t need to turn its direction to reach bilateral pallets because its fork can rotate to realize the operation.





               Heavy Duty Very Narrow Aisle (VNA) Pallet Rack System For Automotive Storage 1





It is known as a highly effective storage solution to store various sizes of goods. It’s easy to assemble and adjusted according to customers’ specific storing needs.






Advantages of Very Narrow Aisle Pallet Racking System





  • Maximizes storage by reducing aisle space



  • Reduces wasted space by using the vertical height of a building



  • All pallets are accessible to lift trucks



  • Less product damage



  • Fewer picking errors occur



  • 100% accessibility



  • Good stock rotation



  • Storage height of up to 56 feet can be achieved





                   Heavy Duty Very Narrow Aisle (VNA) Pallet Rack System For Automotive Storage 2
