Customized Heavy Duty Cantilever Racking System with High Load Capacity

Customized Heavy Duty Cantilever Racking System with High Load Capacity
Features Gallery Product Description Request A Quote
Name: Pipe Rack, Lumber Rack, Timber Rack
Material Type: High Strengh Steel-Q355/Amercian Standrad Steel
Color: RAL Code: Blue, Green, Orange, Yellow, Grey, Galvanization, Etc.
Dimension: H:2~16.5Mts,Depth: 0.6~1.5Mts, Width: 1~3.9Mts, Customizable As Request
Load Capacity: 500kgs~4000kgs/Layer, 4000kgs~30000kgs/Bay
Certifications: RMI / AS4084-2012 / CE / ISO9001
Safety Accessories: Wire Decks, Column Protectors, Arm Stop Pins, Etc.
Products Package: Steel Strip, Stretch Film, Corrugated Paper, Bubble Film, Plywood Pallets
Services: Free CAD Design, ODM&OEM, Transportation, Project Installation, Systems Maintenance Etc.
Usage Range: In-door And Out-door Warehouses , Logistics, Manufacturing, Food&Beverage, Retail, Automotive, Mobile Storage
High Light:

2500mm Upright Cantilever Racking System


Cantilever Racking System 500kg


timber storage racking systems 500kg

Basic Infomation
Place of Origin: Jiangsu, China
Brand Name: Ironstone
Certification: RMI, AS4084, ISO9001, CE
Model Number: HD-CRS
Payment & Shipping Terms
Packaging Details: Plastic stretch film, Corrugated paper, Cartons, Plywood Pallet, Bubble film, and Metal strips, etc.
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 3000 Tons per month
Product Description

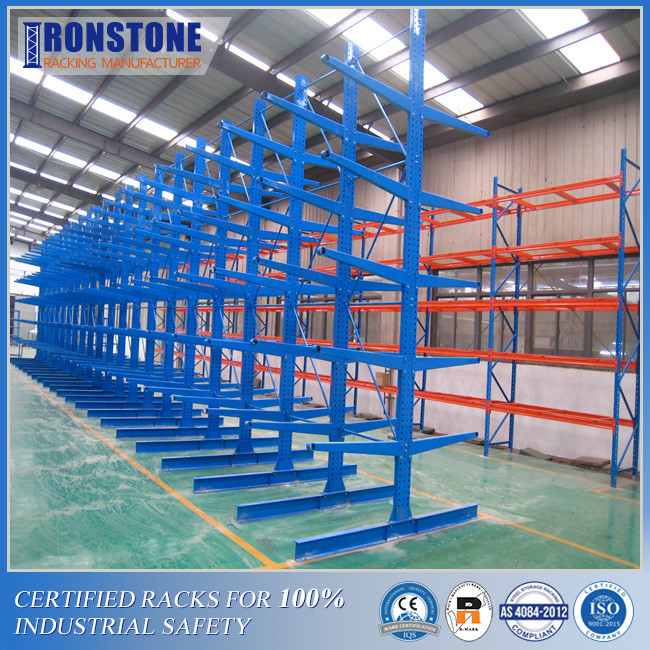

RMI (R-Mark) Certified Cantilever Rack System For Warehouse In-Door And Out-Door Storage








Cantilever racking system is designed to manage loads of varying length and proportion and offers a perfect solution to the storage of long, bulky and irregular shaped items such as lumber, tube, pipe, carpet rolls, furniture, textile, etc. Such loads are difficult to place on or remove from traditional pallet racks, which are limited to the length of the beams used in each section. However, cantilever racking defeats all those trials perfectly.




Specifications of Cantilever Rack


Name Cantilever rack Material High Strength Steel
Arm levels 2~10 tiers per bay Color (RAL Code) Green, Orange, Blue, Yellow, Etc.
Upright Frame Height 2500mm~10000mm Weight Capacity 200~1200kg per arm
Arm Length 800mm~1500mm Frame Distance 500mm~1600mm
Finish Epoxy Powder Coated for Corrosion Prevention
Usage Long and Bulky Cargoes Storage
Package Plastic stretch film, Corrugated paper, Cartons, Wooden bars, Crates, Metal strips, etc.
Accessories Bolts and nuts, upright protectors, decks, etc.
Certification RMI/AS4084-2012 /CE/ ISO9001
Delivery Time 7~25 days as per order quantity
Assemble & Installation Detailed assembly instructions or dispatching installation engineer for project installing at site.




Customized Heavy Duty Cantilever Racking System with High Load Capacity 0




These racks utilize a center column with arms which are easily adjusted to accommodate bundle size, allowing for uneven overhang. Staying completely accessible from the front without any of the horizontal restrictions of traditional pallet rack, the whole length of the rack maybe used for storage, guaranteeing an instant accessibility to one piece or a full load.



With no front columns in the way, one hundred percent utilization of horizontal and vertical space provides faster loading and unloading with lower handling costs.





Structure and Components



The main components are illustrated as the followings:



Customized Heavy Duty Cantilever Racking System with High Load Capacity 1




♦ Upright



Usually a upright refers to an vertical upright column and an attached horizontal base, which can be single-sided or double-sided. As the names suggested, single sided units can only utilize one side while double sided units can store material on both sides. In addition to more arms for storage, double-sided cantilever rack can be more stable in structure.



Columns of cantilever racking are punched with holes in certain distance, where arms are inserted for vertical height adjustment.




Customized Heavy Duty Cantilever Racking System with High Load Capacity 2




The bases, usually bolted to the columns, are the most important part in stabilizing the whole structure.



♦ Cantilever Arm



Arms for the cantilever racking are functioning just as the beams for selective racking, where irregular or long extrusion items are storing at. The following are three types of arms for your reference.



Cantilever arms can be designed into straight or inclined shapes as the pictures shown.




Customized Heavy Duty Cantilever Racking System with High Load Capacity 3



Stable loads such as lumber, wood are suited to straight arm, while for unstable and round objects like pipe, log, inclined arms are safer. Additionally, as load length increases, cantilever racks become more cost-efficient.



♦ Bracing


Bracing connecting upright columns together can be horizontal and diagonal. They add this cantilever system with more rigidity and stability. Sometimes, X type bracing may also necessary for higher racks or as a protection for unstable products that are easy to fall.




Optional Accessories




♦ Stop pin


Welded stoppers or removable pins are fixed at the end of the arms to stop items falling from the rack, like the pallet stopper in the selective pallet racking system.



♦​ Supporting bar


To add storage capacity and stability, supporting bars and bracket are also optional for your warehouse, which also make the pallets storage solution possible.



♦ Decking


For items that are loose or need special protection, decking include wire mesh deck and steel panel deck can be considered during design.



♦ Guild rails


The open structure of cantilever racking system leaves the interaction with material handling machines both convenience and potential danger. However, guide rails can decrease the possible damage to the rack and the loads, as well as the workers there.




Customized Heavy Duty Cantilever Racking System with High Load Capacity 4







Cantilever racking system has its own advantages that beat other pallet racking.



► Excellent storage ability


Cantilever racking system can store various products that have irregular shapes, extremely long or bulky while traditional pallet racking cannot.



► Efficient product handling


Without horizontal beams and vertical uprights to block, products, especially the large ones can be stored or retrieved quickly and conveniently with instant accessibility.



► Easy inventory management


The cantilever racking system offers a neat and clean storage method for bulky loads leaving a very easy inventory management.



► Flexibility


Cantilever racking system can be very flexible with its open areas where loads can be placed anywhere available with few limitations. They can also be adapted to pallet racking if necessary.



► Expandable


Cantilever racking system is expandable with add-on bays. For your existing system, you just need to buy some uprights, arms and braces to get more storage space.



► Cost-effective


The initial investment of cantilever racking is relatively low with less components compared to traditional pallet racking. As a cost-effective storage solution, cantilever racking system can also increase storage density and decrease material handling time.



Customized Heavy Duty Cantilever Racking System with High Load Capacity 5




Being an efficient storage solution, cantilever racking system can be designed with light-duty, medium-duty and heavy duty, between which you could choose considering the warehouse layout, product features, material handling method and personal needs.
