Customized Efficient Carton Flow Rack With Rollers For Warehouse Storage
What is Carton Flow Rack?

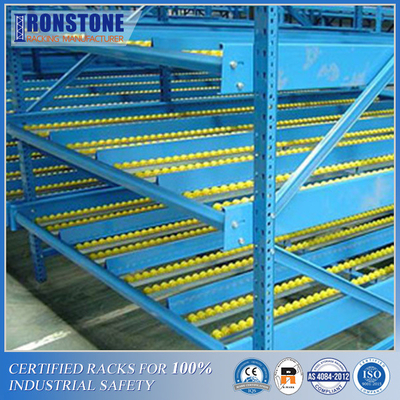

Carton flow rack is one of the live racking storage systems that gain benefits from gravity to improve working efficiency. Specially designed for cartons and boxes that are not palletized items, carton flow rack is a very genius idea for fast turnover facilitated by inclined tracks fixed with rollers and load-bearing wheels.
Keeping picking front and storing end at two opposite sides, carton flow rack maintains a simultaneous process of retrieval and restock. When the first carton is removed, the one behind it will instantly slide down to the picking front, greatly improved the stock rotation rate and the whole system's efficiency.
What's the Structure of Carton Flow Rack?
Following the First-in/First-out(FIFO) principle, carton flow rack consists of frames and beams just like other racking systems. What makes carton flow rack different is the slightly inclined tracks equipped with gravity rollers, which is its key component.
As a customized storage solution with great flexibility, variable designs with optional accessories can be applied to carton flow racks accommodating to customers' storage requirement include dividers, picking plate, braking systems, display stations, to name just a few.
Here are some parameters of carton flow rack for reference.
| Name | Carton flow rack | Material | Steel |
| Shelf levels | 2~12 tiers per shelving unit | Color | Customized Gray/White/Black/Blue |
| Height | Customized 1500mm~5000mm |
Weight Capacity | 150~800kg per shelf |
| Width | Customized 1000mm~2700mm |
Depth | Customized 400mm~1200mm |
| Finish | Epoxy Powder Coated Corrosion Prevention | ||
| Usage | Cargoes/Boxes/Non-palletized product Storage | ||
| Package | Plastic stretch film, corrugated paper, cartons, wooden bars, crates, and metal strips, etc. | ||
| Certification | RMI/AS4084-2012 /CE/ ISO9001 | ||
| Delivery time | 7~25 days according to order quantity | ||
| Assemble & installation | Easy assemble with detailed instruction | ||
Why Choose Carton Flow Rack?
Business runners and warehouse owners have plenty of reasons to choose carton flow rack for storage solution in their facilities.
► The storage density is relatively high.
► The system is structually flexible and adjustable to store multiple items.
► The relatively lower cost in both initial investment and following operational expense.
► The easy product accessibility and selectivity with safe operation.
► The reduced travelling distance and enhancd productivity for workers with automatic stock rotation.
Most of all, what makes carton flow system superior to others is its great performance in inventory management.
For companies that require fast stock picking and replenishment, carton flow racks not only offer a lot of lanes and levels where each item can be located fast and accurately, but also provide a non-interfering merchandise organization method that is orderly and neatly.
Who Need Carton Flow Rack?
► Companies whose products are mostly carton or boxes packed.
► Food industries with time or date sensitive items requiring fast turnover.
► Relatively small warehouses require compact storage while also need fast throughput.
► Warehouses that use carton flow rack as picking and delivery hub.
► Large distribution centers integrate carton flow system with other storage racks.
► Any facilities that want to benefit from carton flow racking systems.
