Safe Operation VNA Steel Pallet Rack System For High Density Storage

Safe Operation VNA Steel Pallet Rack System For High Density Storage
Features Gallery Product Description Request A Quote
Material Type: High Strength Steel/American Standard Steel
Color: RAL Code: Blue, Green, Orange, Yellow, Grey, Galvanization, Etc.
Usage Range: General Warehouse Distribution, Logistics, Cold Warehouse Storage, E-Commerce, Manufacturing, Food&Beverage, Retail, 3PL, Automotive, Record Storage
Dimension: H:2~16.5Mts,Depth: 0.6~1.5Mts, Width: 1~3.9Mts, Customizable As Request
Load Capacity: 500kgs~4000kgs/Layer, 4000kgs~30000kgs/Bay
Certifications: RMI / AS4084-2012 / CE / ISO9001
Safety Accessories: Wire Decks, Column Protectors, Pallet Supports, Etc.
Products Package: Steel Strip, Stretch Film, Corrugated Paper, Bubble Film, Plywood Pallets
Services: Free CAD Design, ODM&OEM, Transportation, Project Installation, Systems Maintenance Etc.
High Light:

AS4084 Very Narrow Aisle Pallet Racking


Very Narrow Aisle Pallet Racking 700mm


700mm Depth VNA Pallet Racking

Basic Infomation
Place of Origin: Jiangsu, China
Brand Name: Ironstone
Certification: RMI, AS4084, ISO9001, CE
Model Number: HD-SPS
Payment & Shipping Terms
Packaging Details: Plastic stretch film, corrugated paper, Cartons, Plywood Pallet, bubble film, and metal strips, etc.
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 3000 Tons per month
Product Description

Very Narrow Aisle Pallet Rack System for High-Density Storage




Very narrow aisle pallet rack system, commonly abbreviated to the VNA pallet rack system, is a FIFO(first in, first out) high-density storage system with 100% selectivity, which is best suited for warehouses with high mix, high volume SKUs.



Specifically speaking, it is an adaptation of the conventional selective pallet rack system, but built comparatively taller to provide more storage space. As its name suggests, working aisles are narrowed up to 1.5 meters to save up to 40% space for storage, increasing the capacity of warehouse without expanding floor area.




Name Warehouse rack Material

Roll-formed steel

Structural steel

Shelf levels 2~15 tiers per shelving unit Color (RAL Code) Green, Orange, Blue, Yellow, Etc.
Upright Frame Height 2500mm~15000mm Weight Capacity 500~3000kg per level
Beam Width 1000mm~3900mm Depth 700mm~1500mm
Finish Epoxy Powder Coated for corrosion prevention
Usage Cargos Storage
Package Plastic stretch film, corrugated paper, Cartons, wooden bars, crates, and metal strips, etc.
Accessories Bolts and nuts, Upright protectors, decks, etc.
Certification RMI/AS4084-2012 /CE/ ISO9001
Delivery time 7~25 days as per order quantity
Assembly & installation Detailed assembly instructions are available




With such narrow aisles, common counterbalance forklifts are not suitable to work in the VNA pallet rack system. It requires a specific material handling equipment called a trilateral turret truck whose mast is able to rotate independently towards either left or right as required so as to access pallets without turning its body.

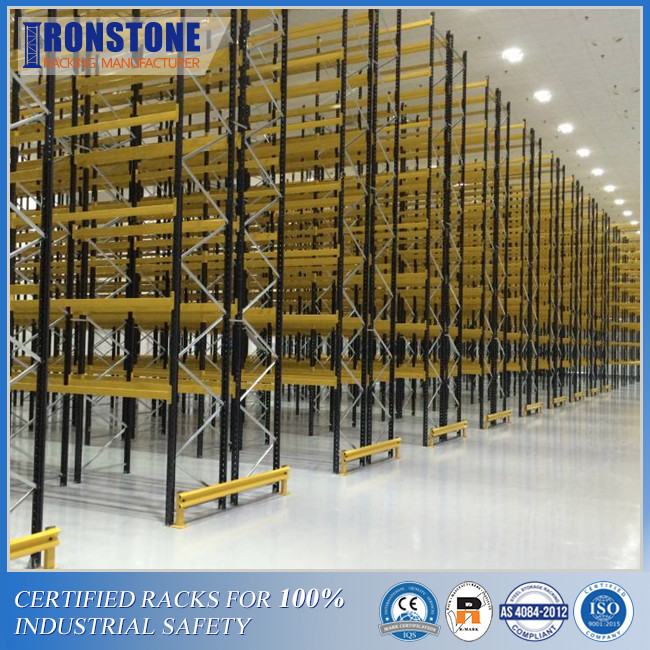

                 Safe Operation VNA Steel Pallet Rack System For High Density Storage 0



Advantages of Very Narrow Aisle Pallet Rack System



  • 100% selectivity: Similar to selective pallet racks, each row of racks in VNA pallet racking system adjoins to a working aisle, making every pallet cargo completely accessible.



  • FIFO inventory rotation direction: The first stored pallet will also be the first one to be taken out, ensuring prompt and efficient inventory rotation, which is extremely important for time-sensitive products.



  • High-density storage: It provides a substantial increase in storage volume by taking full advantage of both floor space and vertical space. Working aisles are designed narrow and racks are built tall in an effort to conserve more space for storage.



  • Cost-effective: VNA pallet racks make use of headroom as much as possible, which means you can store more pallets in one-floor space area, therefore reducing the cost of per stored pallet.



  • Good adaptability: It is simple to assemble, disassemble, and re-adapt load levels to adapt to changes in storage needs. Besides, it is compatible with all kinds of accessories.

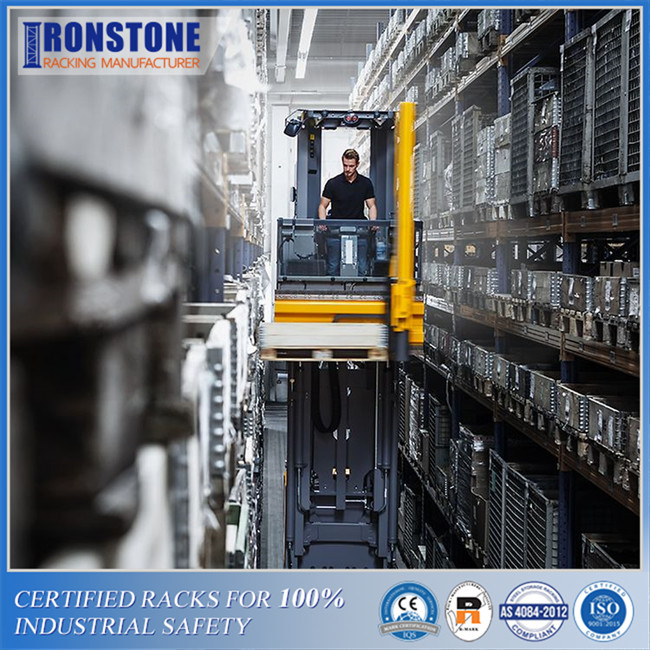

                ​Safe Operation VNA Steel Pallet Rack System For High Density Storage 1




Tips for Very Narrow Aisle Pallet Rack System


  • It combines the advantages of conventional selective pallet racks and high-density pallet racks. Without sacrificing selectivity, storage density is greatly improved in VNA pallet racks, which are ideal for non-homogeneous products requiring high rotation.



  • For tall warehouses in which space is at a premium but storage demand is large, the VNA pallet rack system is a good choice. It exploits all available space within your facility by making practical use of both floor area and height clearance.



  • It can reach up to 17 meters high, so VNA racks must be installed on a concrete floor that is perfectly flat. In addition, it is a must to equip with physical steel guide rails or electromagnetic guide rails to assist forklift operators in narrow aisles.



  • Trilateral turret truck is more expensive than a common counterbalance forklift and its requirements for the operator is also stricter since it will be used in narrower aisles.

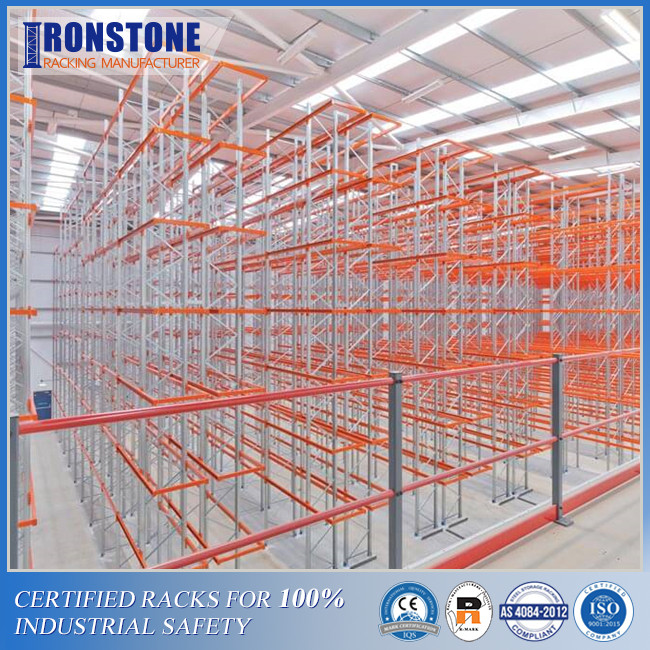

                  Safe Operation VNA Steel Pallet Rack System For High Density Storage 2
