Back-to-back Double Deep Pallet Rack With Low Maintenance

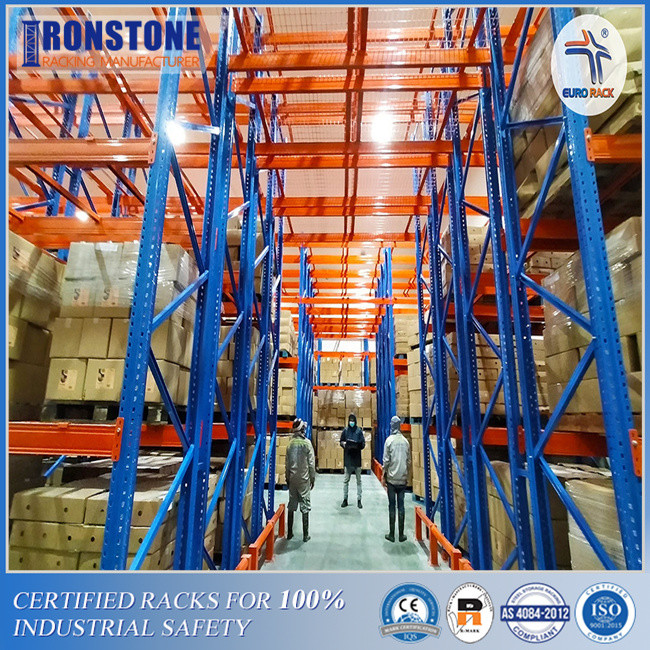

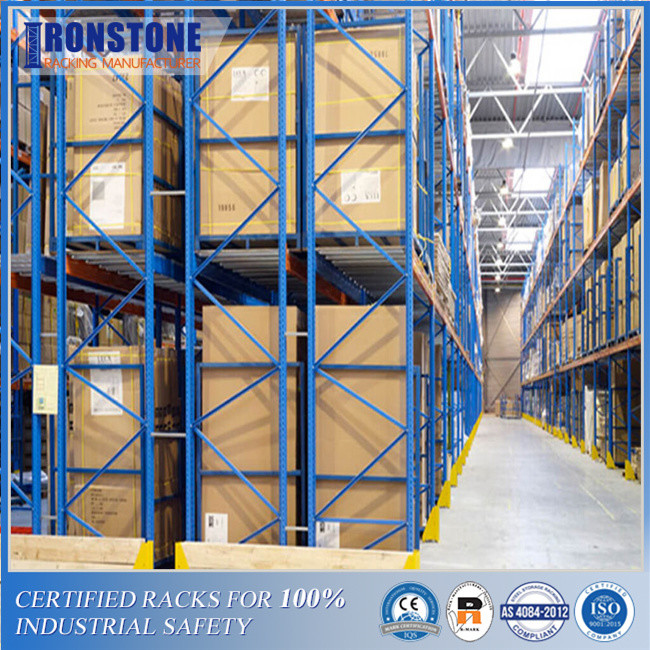

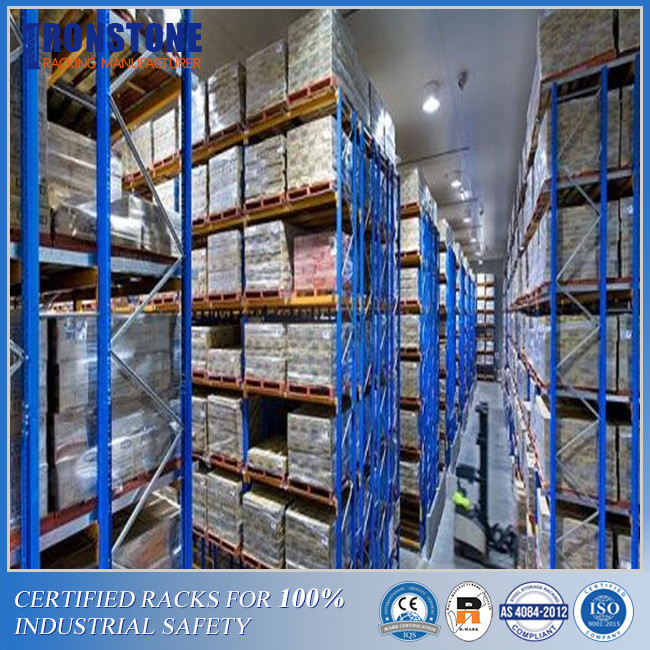

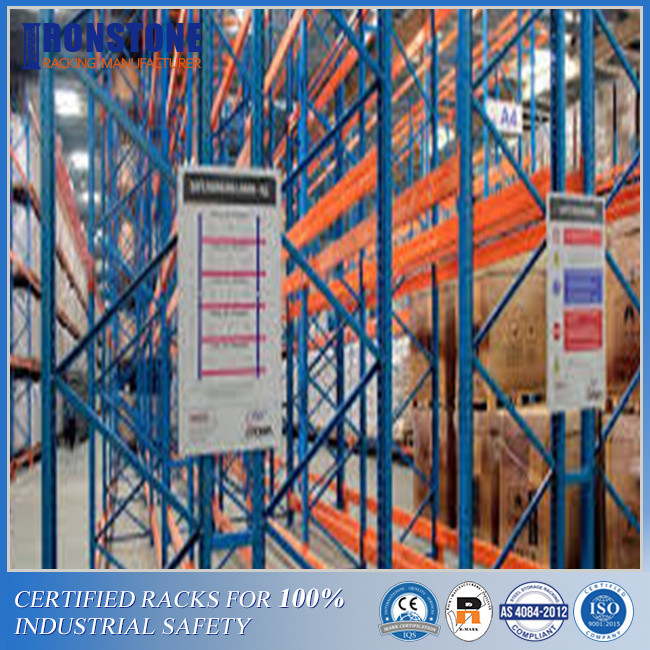

Double deep pallet rack is a type of industrial shelving system used for the storage of palletized goods. It is designed to maximize storage density by allowing two pallets to be stored back-to-back within a single storage bay. This configuration effectively doubles the storage capacity of each bay while reducing the number of aisles required for access.
In a double deep pallet rack system, pallets are stored on rails that run the depth of the rack. This allows the forklift to access the pallets from the front of the rack, with the second pallet being stored behind the first. When a pallet needs to be retrieved, the forklift operator must first remove the front pallet before accessing the rear pallet.
| Name | Double Deep Pallet racking | Material | High Strength Steel |
| Beam levels | 2~15 tiers per bay rack | Color | (RAL Code) Green, Orange, Blue, Yellow, Etc. |
| Upright Frame Height | 2500mm~15000mm | Weight Capacity | 500~3000kg per level |
| Beam Width | 1000mm~3900mm | Frame Depth | 700mm~1500mm |
| Finish | Epoxy Powder Coated for corrosion prevention | ||
| Usage | Cargos Storage | ||
| Package | Plastic stretch film, corrugated paper, Cartons, wooden bars, crates, metal strips, etc. | ||
| Accessories | Bolts and nuts, Upright protectors, decks, etc. | ||
| Certification | RMI/AS4084-2012 /CE/ ISO9001 | ||
| Delivery time | 7~25 days as per order quantity | ||
| Assemble & installation | Detailed assembly instructions are available as well as dispatching installation engineer for project installation at the site. | ||
The Difference Between Double Deep Racking and Selective Racking
The main difference between double deep pallet rack and selective pallet rack lies in the way the pallets are stored and accessed.
Selective pallet rack is the most common type of pallet racking system. It consists of vertical uprights, horizontal load beams, and diagonal bracing. The pallets are stored on these load beams and can be accessed directly from the aisle.
On the other hand, double deep pallet rack is designed to store two pallets deep, one behind the other, on each side of the aisle. This means that the pallets stored in the back of the rack can only be accessed by a special forklift with an extended reach. Double deep pallet rack can be a more space-efficient solution for storing large quantities of the same product, but it requires more careful inventory management and longer retrieval times.
In summary, selective pallet rack is designed for high selectivity and easy access to individual pallets, while double deep pallet rack is optimized for high storage density and requires special equipment to access the back pallets.
Double deep pallet racking is a storage system that allows for pallets to be stored two deep, rather than one deep as in traditional racking systems. Some of the advantages of double deep pallet racking include:
Increased storage capacity: Double deep pallet racking can increase storage capacity by up to 50% compared to traditional racking systems, as it allows for more pallets to be stored in the same amount of space.
Efficient use of floor space: By storing pallets two deep, double deep pallet racking reduces the number of aisles required between racking systems, making more efficient use of available floor space.
Cost-effective: Double deep pallet racking can be a cost-effective solution for warehouses and other storage facilities looking to increase their storage capacity without having to expand their floor space or move to a larger facility.
Improved picking efficiency: Double deep pallet racking can improve picking efficiency by reducing the number of aisles required between racking systems, allowing for faster and more efficient picking and restocking of inventory.
Compatible with various types of forklifts: Double deep pallet racking is compatible with a wide range of forklifts, including reach trucks, counterbalance trucks, and articulated trucks, making it a flexible and versatile storage solution.
However, it's worth noting that double deep pallet racking also has some disadvantages, such as reduced accessibility to some pallets and the need for specialized forklifts to handle the deeper storage.
Conclusion
Double deep pallet rack systems are ideal for warehouses and distribution centers that have a large number of pallets to store and limited floor space. However, they require specialized forklifts with extended reach capabilities and may be less accessible than single-deep racks.
