Space-saving Double Deep Versatile Pallet Rack

Space-saving Double Deep Versatile Pallet Rack
Features Gallery Product Description Request A Quote
Material: High Strength Steel-/American Standard Steel
Color: RAL Code: Blue, Orange, Yellow, Grey, White, Etc.
Application: Food, Beverage Industry, Etc
Dimension: H:2~16.5Mts,Depth: 0.6~1.5Mts, Width: 1~3.9Mts, Customizable As Request
Load Capacity: 500kgs~4000kgs/Layer, 4000kgs~30000kgs/Bay
Certification: RMI / AS4084-2012 / CE / ISO9001
High Light:

4m High Double Deep Pallet Racking


Double Deep Pallet Racking System AS4084


AS4084 Industrial Storage System

Basic Infomation
Place of Origin: China
Certification: RMI, AS4084, ISO9001, CE
Model Number: VHD-DB Model
Payment & Shipping Terms
Packaging Details: Plastic stretch film, corrugated paper, Cartons, wooden bars, crates, and metal strips, etc.
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 3000 Tons per month
Product Description

Versatile High Density Double Deep Pallet Racking System for Industrial Storage




The double-deep pallet racking system offers a higher storage density than selective racking, making double-deep racking the ideal solution for storing slightly larger quantities of the same SKU. This warehouse-racking solution is suitable for a wide range of product types, including food, beverage, hardware and products (among others), making it the choice of companies operating in a variety of industries.



Double-deep racking is typically applied with specially designed double-deep forklifts equipped with pantographs to reach the rear pallets. The double deep pallet racking requires the operator to remove the front pallet before accessing the rear pallet, making it more suitable for storing large quantities of the same items.




Advantages of double deep pallet rack Medium to low storage system
Floor level is not critical (front loaded)
Disadvantages of double deep pallet rack Loss of storage locations as only same SKU can be stored in front storage positions
Recommended storage loss allowance 15-20%
LIFO inventory management
Limited storage height (10m)
Special trucks required
Poor visibility of rear upper storage levels
Reduced through-put rates when compared with Reach Trucks




Specification of Double Deep Pallet Rack Truck:



Aisle Width Storage Area Operating Aisle Area Through-put Rate Lift Height
3.0 to 3.5m (medium width) 55% 45% 12-18pph up to 9.5m

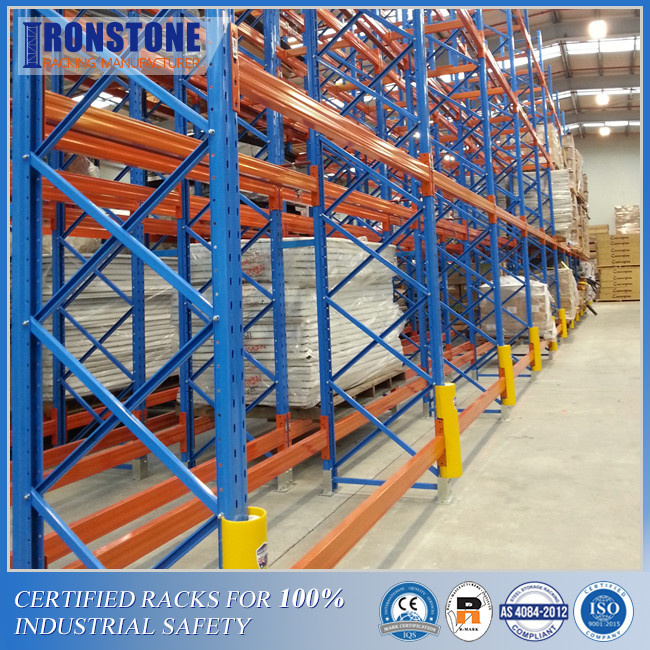

Space-saving Double Deep Versatile Pallet Rack 0




Advantages and Features of Double Deep Pallet Racking System:



  • Increased storage capacity compared to the selective pallet racking system.


  • Pallet access is kept simple and relatively quick, allowing for 50% direct access and a reasonable turnover of goods.


  • The system offers a good space utilization rate of all available locations, typically above 80-90%.


  • The intermediate system between adjustable selective pallet racking systems and compact high-density systems.


  • LIFO system, where the last pallet on the racking will be the first to pick up.


  • A more efficient system that eliminates unnecessary aisles and increases the use of available space.


  • Double-deep pallet racking systems are suitable for any type of unit load.


  • As with the adjustable pallet racking system, the assembly and disassembly process and component replacement are quick and easy.


  • Save time and effort in handling unit loads and achieve fast inventory turnaround.


  • Double deep pallet racking is designed to allow reconfiguration or expansion of it to meet storage needs.


  • High level of security due to the wide range of accessories that can be combined.

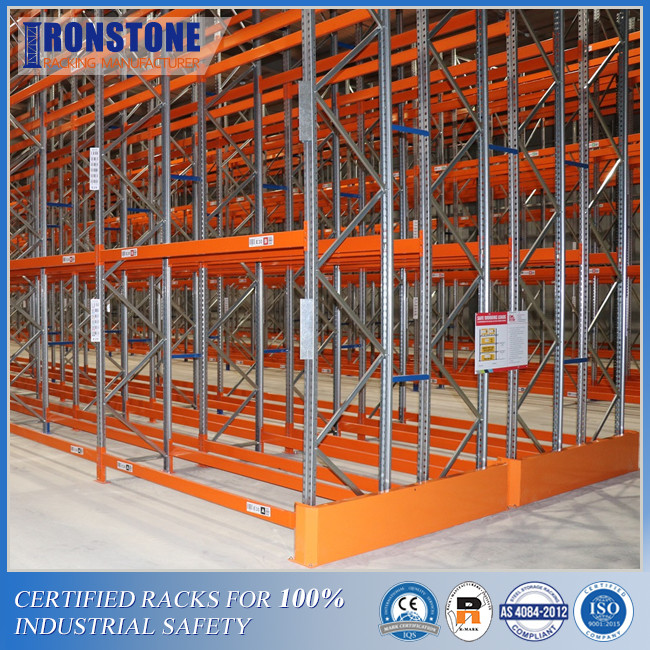

Space-saving Double Deep Versatile Pallet Rack 1



Main Applications of Double Deep Racking for Pallets:




Double deep pallet racking system, thanks to its similarity to the adjustable pallet racking system, offers a very versatile and adaptable solution to a wide range of storage needs.



However, its greater storage capacity and reduced accessibility per unit load make it particularly recommended for applications in warehouses with the following characteristics:



  • Warehouses that contain more than one product pallet per special storage unit.


  • Storage of the same or identical types of products.


  • Warehouses with stock with a medium or long-term useful life. Double deep pallet racking is a last-in, first-out system and is not recommended for very perishable products.


  • Warehouses with a robust inventory management system where restricted access to all pallets is not an issue.


  • Warehouses that need a balance between accessibility or selectivity of unit loads and increased storage capacity.
