Medium Volume Logistic Double Deep Rack Storage System

Medium Volume Logistic Double Deep Rack Storage System
Features Gallery Product Description Request A Quote
Name: Double Deep Pallet Racking System
Material: High Strength Steel-/American Standard Steel
Color: Customizable
Usage: General Warehouse Distribution, Logistics, Cold Warehouse Storage, E-Commerce, Manufacturing, Food&Beverage, Retail, 3PL, Automotive, Record Storage
Dimension: Height:2~16.5M,Depth: 0.6~1.5M, Width: 1~3.9M, Customizable As Request
Load Capacity: 500kgs~4000kgs/Layer, 4000kgs~30000kgs/Bay
Certification: RMI / AS4084-2012 / CE / ISO9001
High Light:

700mm Double Deep Pallet Racking


Double Deep Pallet Racking System ISO9001


ISO9001 double deep storage

Basic Infomation
Place of Origin: China
Certification: RMI, AS4084, ISO9001, CE
Model Number: HDDD Model
Payment & Shipping Terms
Packaging Details: Plastic stretch film, corrugated paper, Cartons, wooden bars, crates, and metal strips, etc.
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 3000 Tons per month
Product Description

High-Density Double Deep Pallet Racking System for Distribution Centers



Double deep pallet racking storage systems are selective pallet racking solutions that install two racking depths and operate in medium aisles with trucks that can achieve double pallet depth.



A double deep pallet racking storage solution that offers companies a space-saving alternative to standard pallet racking by reducing the number of aisles required while increasing storage density.



The double deep pallet rack storage system results in Last In First Out (LIFO) access; when the warehouse is running at full capacity, 50% of the goods are behind the pallets. An efficient and up-to-date inventory system helps users of double-deep pallet racking to take advantage of their increased storage density.




Name Double Deep Pallet racking Material High Strength Steel-/American Standard Steel
Beam levels 2~15 tiers per bay rack Color (RAL Code) Green, Orange, Blue, Yellow, Etc.
Upright Frame Height 2500mm~15000mm Weight Capacity 500~3000kg per level
Beam Width 1000mm~3900mm Frame Depth 700mm~1500mm
Finish Epoxy Powder Coated for corrosion prevention
Usage Cargos Storage
Package Plastic stretch film, corrugated paper, Cartons, wooden bars, crates, and metal strips, etc.
Accessories Bolts and nuts, Upright protectors, decks, etc.
Certification RMI/AS4084-2012 /CE/ ISO9001
Delivery time 7~25 days as per order quantity
Assemble & installation Detailed assembly instructions are available as well as dispatching installation engineer for project installing at site.

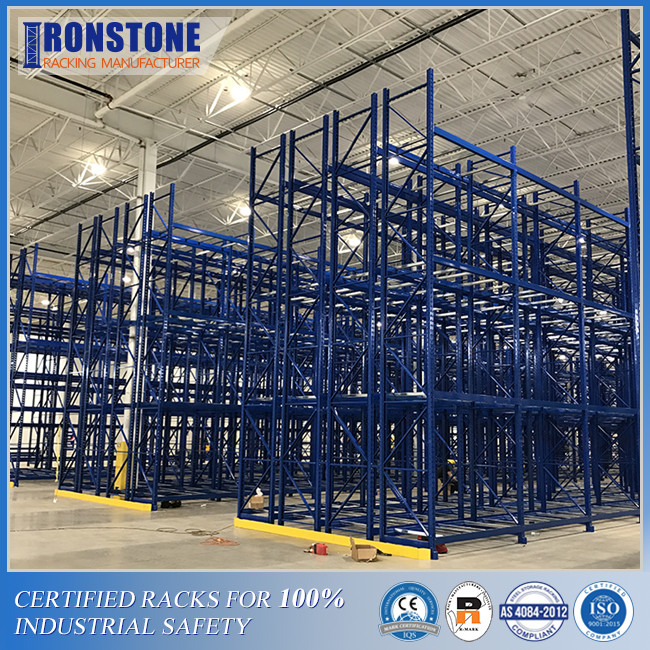

Medium Volume Logistic Double Deep Rack Storage System 0


This system is ideal when distribution centres have multiple pallets of the same product and require these pallets to be stored together at short notice. Customers can choose when this racking system requires the use of pallet guides, these are created by pushing pallets into position with a length of angle guide, these help the pallet square, sit in the correct position also the driver can safely load all the pallets without the senior staff seeing behind them.



Double deep pallet racking provides a cost-effective method of bulk storage, especially where logistics suggest greater storage space density.



Consider double deep pallet racks when SKU capacity requires you to have more pallet positions than your standard selection of pallet racks can provide. A deep reach is a 2 pallet deep rack design, usually configured back-to-back with another 2 deep row. This configuration provides twice as much pallet storage with only two aisles instead of four.

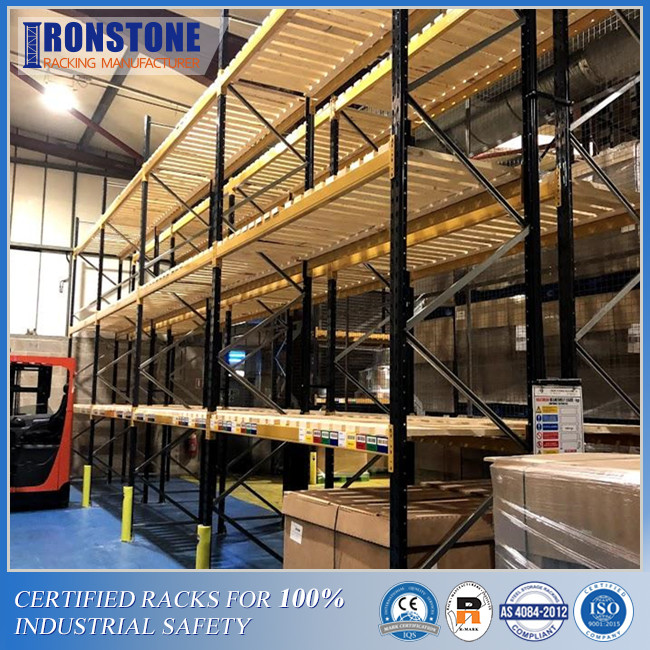

Medium Volume Logistic Double Deep Rack Storage System 1



Double Deep Pallet Racking System is best suited for:


  • Medium SKUs, distributed in medium volumes.


  • Higher Rack to aisle ratio, better space utilization.

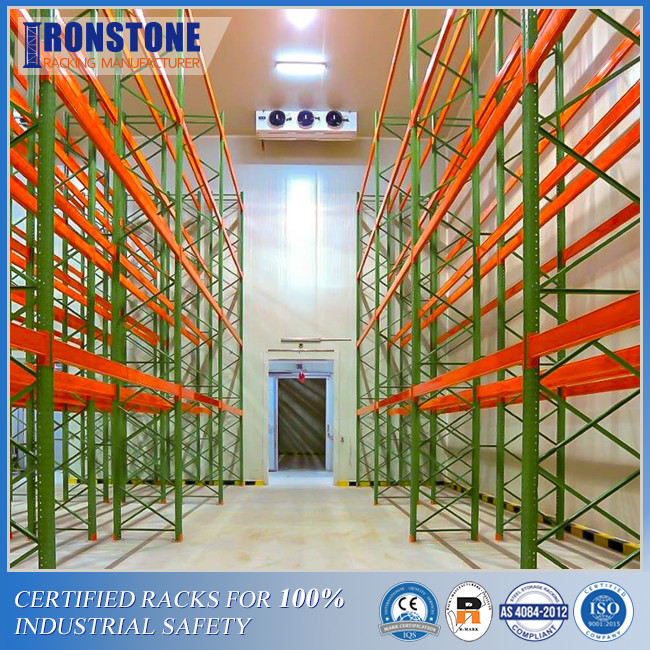

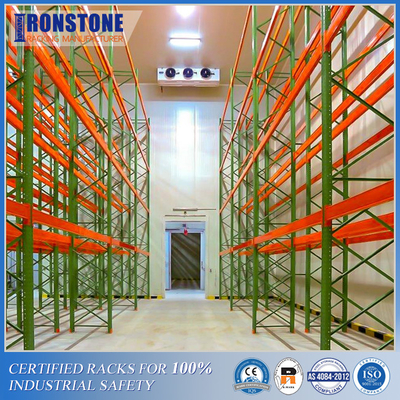

  • Cold Storage Applications.



Characteristics of Double Deep Pallet Racking System:



  • High storage density that increases floor space utilization by 55%.


  • Immediate accessibility to 50% SKUs.


  • Adjustable beam levels to re-configure size of the pallets.


  • Very cost-effective.


  • Variety of frame and beam capacities to fit your requirements.
