50% Selectivity Double Deep Metal Pallet Storage Rack With Special Forklifts

1*20ft
MOQ
USD$0.85/KG
Price
50% Selectivity Double Deep Metal Pallet Storage Rack With Special Forklifts
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Double Deep Pallet Rack
Material: High Strength Steel-/American Standard Steel
Color: RAL Code: Blue, Orange, Yellow, Grey, White, Etc.
Usage: General Warehouse Distribution, Logistics, Cold Warehouse Storage, E-Commerce, Manufacturing, Food&Beverage, Retail, 3PL, Automotive, Record Storage
Dimension: Height:2~16.5M,Depth: 0.6~1.5M, Width: 1~3.9M, Customizable As Request
Load Capacity: 500kgs~4000kgs/Layer, 4000kgs~30000kgs/Bay
Certification: RMI / AS4084-2012 / CE / ISO9001
High Light:

Deep Metal Pallet Storage Rack

,

50% Selectivity Pallet Storage Rack

,

Forklift Double Deep Pallet Rack

Basic Infomation
Place of Origin: China
Brand Name: IRONSTONE
Certification: RMI, AS4084, ISO9001, CE
Model Number: EHDDB Model
Payment & Shipping Terms
Packaging Details: Plastic stretch film, corrugated paper, Cartons, wooden bars, crates, and metal strips, etc.
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 3000 Tons per month
Product Description

50% Selectivity Double Deep Metal Pallet Storage Rack With Special Forklifts

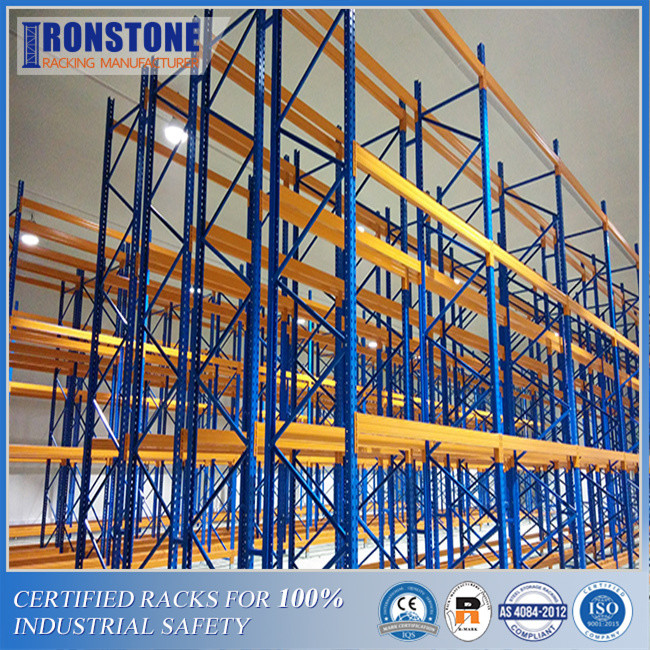

Double deep pallet rack is a warehouse pallet storage system that is used to increase storage efficiency and pallet density. Double deep pallet racks are made up of two standard selective racks that are placed back to back to form the double deep pallet storage system. Clients load and unload pallets from these systems using double-reach or deep-reach lift trucks. These double-deep racks are typically designed to be installed against a wall or in conjunction with another double-deep section behind it to maximize floor space. Double deep is commonly found in warehouses with high volume and limited space that use the LIFO (Last In First Out) inventory rotation. Double-deep pallet rack systems can also help to maximize warehouse space by increasing floor space by 60-65%. Double-deep pallet racks are 50 percent selectable.



50% Selectivity Double Deep Metal Pallet Storage Rack With Special Forklifts 0





Name Double Deep Pallet racking Material High Strength Steel
Beam levels 2~15 tiers per bay rack Color (RAL Code) Green, Orange, Blue, Yellow, Etc.
Upright Frame Height 2500mm~15000mm Weight Capacity 500~3000kg per level
Beam Width 1000mm~3900mm Frame Depth 700mm~1500mm
Finish Epoxy Powder Coated for corrosion prevention
Usage Cargos Storage
Package Plastic stretch film, corrugated paper, Cartons, wooden bars, crates, metal strips, etc.
Accessories Bolts and nuts, Upright protectors, decks, etc.
Certification RMI/AS4084-2012 /CE/ ISO9001
Delivery time 7~25 days as per order quantity
Assemble & installation Detailed assembly instructions are available as well as dispatching installation engineer for project installation at the site.





Advantages:


♦Increased storage density.

Don’t need 100% immediate access to all pallets.

Stock rotation is less critical.

Require an economical solution.

Want flexibility in expanding or re-configuring your storage.

With less movement and increased pallet position accessibility.

On a tight budget, Double Deep Racking will increase your capacity. Double deep, like selective rack, is available in a variety of heights, depths, bay lengths, and capacities, and can be combined with rows of pallet rack to create a customized solution.





Typical Applications



►Cold Storage



►Food & Beverage



►Grocery



►Consumer Packaged Goods





Compliant

1. Medium volume (maximum of 3,000 pallets).

2. Several trays for each SKU.

3. Medium inventory flows.

4. The beam height is low, operating height up to 8 meters.

5. For warehouses with low pickup rate, the ground utilization rate can reach 42%.



50% Selectivity Double Deep Metal Pallet Storage Rack With Special Forklifts 1



Attention





1. Special forklift trucks should be equipped. The forklift aisle should be about 3.3 meters.



2. Because there are two rows of goods in the pickup direction of the stacker cargo fork, the special forward stacker (some are called three-way forklift trucks) must be used, and the cargo fork of the stacker generally adopts the level 5 cargo fork.



3. For the access of the rear goods, same as the drive-in rack pallet. Only after the corresponding goods in the front row can be removed or moved, can the shelves be difficult to do first-in-front, first-out. In order to improve the utilization rate of the warehouse, the general inventory needs to consider storing the rear shelves first, and then storing the front shelves later.



4. When the goods are taken out, try to remove the front and rear goods at one time. If too many goods can not be removed at one time, it may affect the inventory utilization rate or the warehouse operation efficiency (it needs to be inverted warehouse operation frequently).



50% Selectivity Double Deep Metal Pallet Storage Rack With Special Forklifts 2

FAQ



(1) Q. What is your minimum starting order?
You only need to purchase one item and we can deliver it to you.

(2) Q. How to buy it?
We can send us directly and we can contact you by mail.

(3) Q. Are you a factory or a trader?
We are 100 percent factories.

(4) Q. Can you do the oem / odm?
We offer OEM / ODM services. If you have this need, you can send your logo directly to us, and we will print your surrounding logo on the product.

(5) Q. Do you provide the samples?
We can provide the product samples for you to test. Samples can be transported by sea, land and air.

(6) Q. What is the most important advantage in a highly competitive market?
Our strengths are a professional design, good quality control, guaranteed delivery time, effective and good communication, and reasonable prices.
