Galvanized Steel Welded Wire Mesh Deck For Pallet Rack

Galvanized Steel Welded Wire Mesh Deck For Pallet Rack
Features Gallery Product Description Request A Quote
Name: Wire Mesh Decking
Material Type: High Strength Steel-/American Standard Steel
Dimension: Customized As Required
Load Capacity: 500 - 1500 KGS
Products Package: Steel Strip, Stretch Film, Corrugated Paper, Bubble Film, Plywood Pallets
Application: American Standard Pallet Rack Systems, Step Beams, Selective Racks
Channel Type: U Channel Or Flanged Channel
Feature: Easily Assembled,Eco Friendly,Waterproof,Corrosion Resistance
High Light:

Welded Wire Mesh Deck


Galvanized Steel Wire Mesh Deck


Pallet Rack Wire Mesh Deck

Basic Infomation
Place of Origin: Jiangsu, China
Brand Name: Ironstone
Certification: RMI, AS4084, ISO9001, CE
Model Number: GI-WMD
Payment & Shipping Terms
Packaging Details: Plastic stretch film, Corrugated paper, Cartons, Plywood Pallet, Bubble film, and Metal strips, etc.
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 3000 Tons per month
Product Description

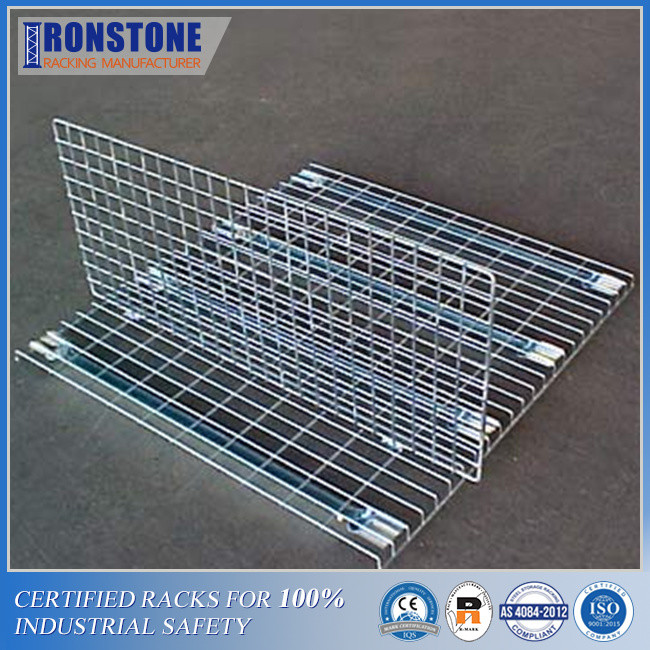

Galvanized Steel Welded Wire Mesh Deck For Pallet Rack


Wire mesh decking improves lighting and cooling in a warehouse and allows for quick visual inventory inspections. Strong, safe, and hygienic open wire mesh design with welded reinforcement wires is ideal for your bulk storage environment as well as full pallet loads. Because the shelves don't collect dust or other detritus, the workspace is more inviting.


To construct one of the three wire grid decking styles that match the three types of beams: Step beam, Box beam, and Structural beam, choose from our flat decking, Flare decking, Invert channel, U channel, or Waterfall style decking.

                         Galvanized Steel Welded Wire Mesh Deck For Pallet Rack 0



Process and Structure

The main raw materials used to make galvanized wire decking are welding wire and reinforcement bars. For welding, iron wire with a diameter of 3-6mm is utilized. The welding wires are connected using spot welding or torch welding. The gap between the two welding wires and the change in welding wire diameter will affect how the grid laminate bears.

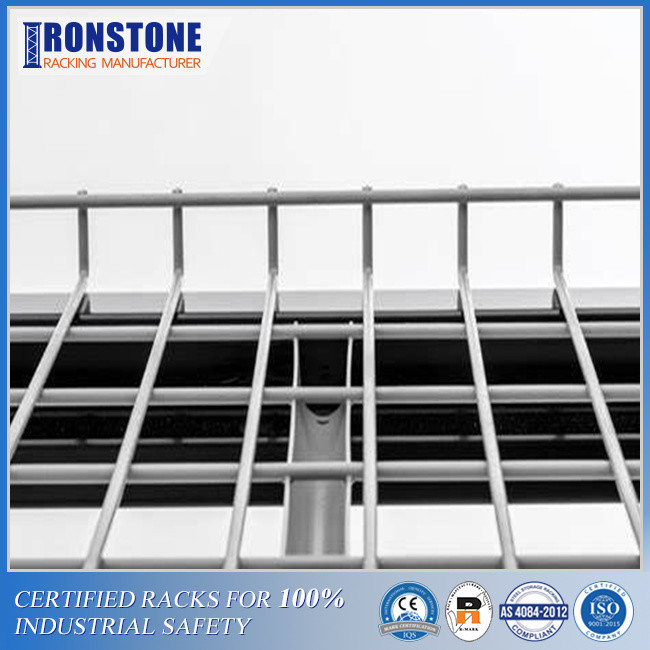

Instead of flattening the iron bars at either end of the American grid lamination, a particular area is designated. An iron bar with a U-shaped curvature serves as the reinforcing bar. The normal grid lamination will have iron bars flattened at both ends, and the thickness and quantity will affect the bearing. The welding wire, which can act as both a support and a fixation at the same time, is often fused beneath the stiffener.


Common Wire Mesh Decking Sizes


Standard U channel waterfall wire decks Pallet deck
Dimensions (D×W) (inches) Dimensions (D×W) (inches)
24"×46" 42"×46" 24"×46"
30"×46" 42"×52" 36"×46"
36"×34" 42"×58" 36"×52"
36"×46" 48"×34" 42"×46"
36"×52" 48"×46" 42"×52"
36"×58" 48"×52" 44"×46"
42"×34" 48"×58"





Options for Decking


1. Super Light Duty Decks: Perfect for applications requiring less capacity.

2. Standard Mesh Decks: For applications requiring a capacity of 2,500 lbs.

3. Super Heavy Duty Decks: For uses requiring a capacity of more than 2,500 lbs.

4. Outdoor Decks: Zinc-plated or hot-dip galvanized outdoor decks offer excellent weather protection.

5. Anchored Decks: These decks can be fastened to the beam in order to stop beam separation and stop deck movement.






►expands capacity

►simple installation

►high visibility for checking inventory

►reduces dirt accumulation

►enables better airflow

►reduces insurance costs

►increases the efficacy of the above sprinklers

►meets fire code requirements

►simple to maintain

►encourages safety




The Benefits of Using Ironstone for Wire Mesh Decking


♦Complete Size Selection;


♦Design Assistance; Dependable Lead Time;


♦Custom Sizes and Finishes for Special Applications;

♦No sharp edges to harm the beam, people, or goods;


♦After-welded galvanized coating for rust-free life;


♦ISO 9,001 high-quality wire decking at a competitive price;


♦No Sharp Edges to scratch beams, people, or products;
