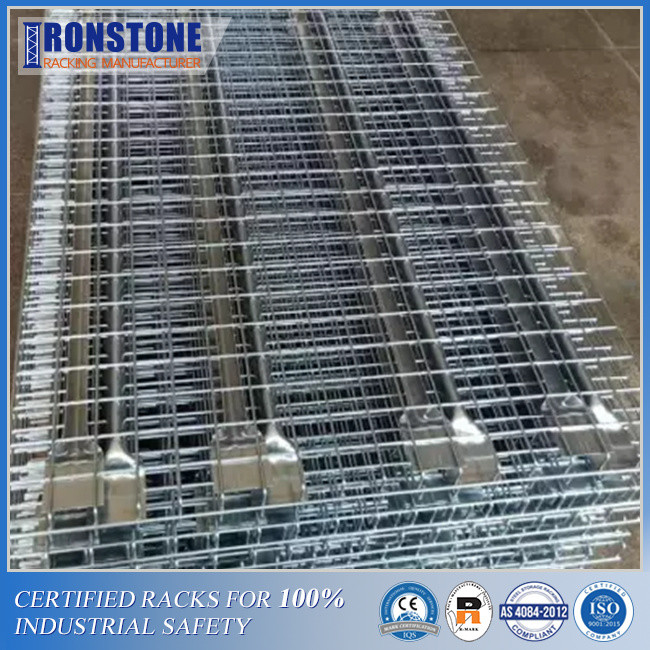

Water Penetrable Wire Decks For Heavy Duty Pallet Racks In Warehouse

Water Penetrable Wire Decks For Heavy Duty Pallet Racks In Warehouse
Features Gallery Product Description Request A Quote
Name: Zinc Wire Mesh Decks
Material Type: High Strength Steel-/American Standard Steel
Load Capacity: 500 - 1500 KGS
Finish: Galvanized Or Powder Coated
Products Package: Steel Strip, Stretch Film, Corrugated Paper, Bubble Film, Plywood Pallets
Application: American Standard Pallet Rack Systems, Step Beams, Selective Racks
Mesh Sizes: 50*50mm, 50*100mm
Channel Type: U Channel Or Flanged Channel
High Light:

U channel wire mesh decking


wire mesh decking pallet rack Q355


racking mesh decks Q355

Basic Infomation
Place of Origin: Jiangsu, China
Brand Name: Ironstone
Certification: RMI, AS4084, ISO9001, CE
Model Number: WMP
Payment & Shipping Terms
Packaging Details: Plastic stretch film, Corrugated paper, Cartons, Plywood Pallet, Bubble film, and Metal strips, etc.
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 3000 Tons per month
Product Description

Optional warehouse accessories pallet rack zinc wire mesh decks and shelves for storage



In modern warehouse storage, pallet rack wire decks are commonly used when extra storage shelves are demanded for non-palletized items. Though a simple structure, there are still some points that you should consider before choosing your wire decks wisely.


1. The types of beams


The commonly used beams are step beams, box beams, and structural beams. As we have mentioned before, for step beams, we usually choose U channels welded decking such as standard waterfall wire decks. And for box beam or structural beams, universal flared wire decks with flared channels are ideal solutions.


2. The type of decks


As we have talked about in the last part, the most popular wire decks are standard waterfall wire decks and universal flared wired decks. For specific requirements, you can choose among all the variations as long as they could accomplish the tasks.


3. The size of decks


Obviously, the size of the decks is determined by the size of the beams on which they are resting on.


a. The depth of the wire decking needs to comply with the depth of the pallet rack frames.


b. The widths of the decks rely on the lengths of the beams.


The parameters needed for the proper sizes of wire decks are illustrated in the picture below.



The form below shows some differences between them:




Painted Power-coated Galvanized
Cost $$ $$$
Color Options Varied Varied Only one color
Corrosion Resistance Normal Good Best
Durability Normal Good Best
Suitable Environment Indoor Indoor/Outdoor Almost all occasions
Maintenance Frequent Touch-ups needed Regular maintenance Maintenance free


Water Penetrable Wire Decks For Heavy Duty Pallet Racks In Warehouse 0


A= Outside to outside of the beam


B= Step height ( for box beam, B=0)


C= Inside to inside of the beam


D = Quantity of decks


From the picture, we can see some beam lengths and the corresponding deck widths to match them. And the number of decks needed for each beam level is also determined by the beam length.



4. Protective coating of wire decks


When choosing your best wire decks for the warehouse, the coating material will determine if the wire decks can last long. Painted, power-coated, and galvanized are the most commonly seen coating types in wire decks.


Painted wire decks are cheap and you can have a lot of color options while they tend to scratch or peel after some time which may cause damage to the decks after corrosion.


Powder-coated wire decks can last much longer than painted ones with better durability and corrosion resistance. You can also have more options in texture and color and they are also more environmentally friendly than painted wire decks.


Galvanized wire decks, processing with hot-dipped zinc, can guarantee a lifetime of rust resistance and the overall property is superior. Providing a clean and sanitary surface, galvanized wire decks are ideal for pharmaceutical items and excellent choices for display areas. They can also behave great in extreme temperatures and moisture. And of course, their prices are higher compared with other types of wire decks.


Taking all the factors into account, I believe you could find the functional wire decks that suit your warehouse best.



If you still don’t know how to decide the type, size, and quantity of wire mesh decks that are best suited to you, you can always turn to us for help. The ironstone team will customize the best wire decks that are fully qualified with proper specification, load capacity, and overall fit in the design. Most of all, with our excellent quality, you can never find a better price than us.
