Highly Engineered US Standard Teardrop Rack With Seismic Calculation

Highly Engineered US Standard Teardrop Rack With Seismic Calculation
Features Gallery Product Description Request A Quote
Name: Teardrop Pallet Racking System
Color: RAL6000(Green), RAL5003(Blue), RAL2001(Red Orange), RAL2004(Pure Orange), RAL1037(Safety Yellow), Or Custom Color As Request
Column Size: 3.0"*3.0" With 15GA~12GA Thick
Beam Size: 2.5"~6.0" Beam Face With 16GA~14GA Thick
Usage: General Warehouse Distribution, Logistics, Cold Warehouse Storage, E-Commerce, Manufacturing, Food&Beverage, Retail, 3PL, Automotive, Record Storage
Load Beam Size: 96", 108", 120", 144" , Or Custom Size
Upright Frame Size: 96"~450"
Beam Load: 1000lbs~10000Lbs
Frame Load: 17200~27200LBS
Material Type: High Strength Steel/American Standard Steel
High Light:

Convenient Installation Teardrop Racking System


3000kg Capacity Teardrop Racking System


Cargos Storage Teardrop Pallet Racking

Basic Infomation
Place of Origin: China
Brand Name: Ironstone
Certification: RMI
Model Number: V-TPR Model
Payment & Shipping Terms
Packaging Details: Plastic stretch film, corrugated paper, Cartons, wooden bars, crates, and metal strips, etc.
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 3000 Tons per month
Product Description

Convenient Installation and Adjustable Teardrop Racking System For Industry Storage




The teardrop design is the most common design in the industry. Due to the ubiquity of this style, the beams and columns are often interchangeable and compatible with other manufacturers' designs. It, therefore, gives you peace of mind when purchasing additional racks for your facility. Teardrop racking is more economical than structural racking redesigns.



Teardrop pallet racking can be used to meet your specific needs and can be equipped with custom accessories to suit any function. This racking design is available in a wide range of colors, sizes, and capacities so you can find the right one for you.





Name Teardrop (US) Pallet Rack Material American standard steel
Depth 24"-60" Weight Capacity 1000-7000lbs/beam level
Width 48"-156" Height 96”-432” or Customized

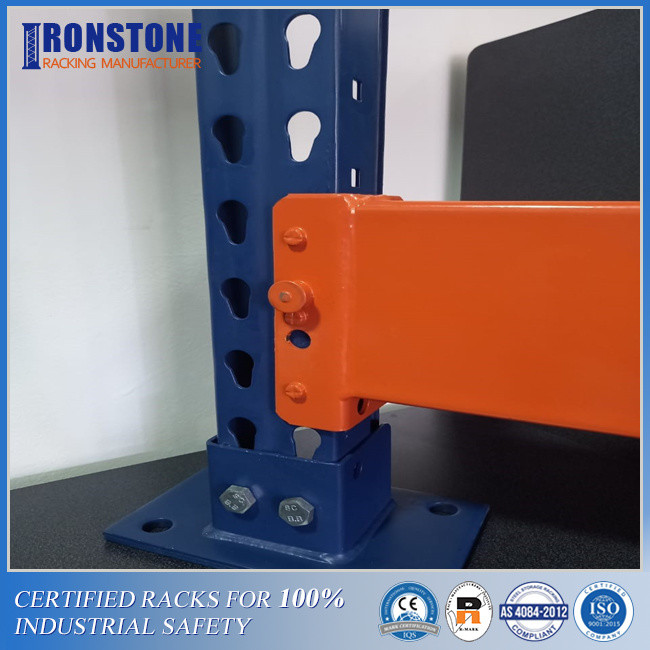

Frame Structure Type Welded & Bolted 3"*3" Upright frame with Seismic Baseplate
Beam Type 2.5"-6.25" Step Beam

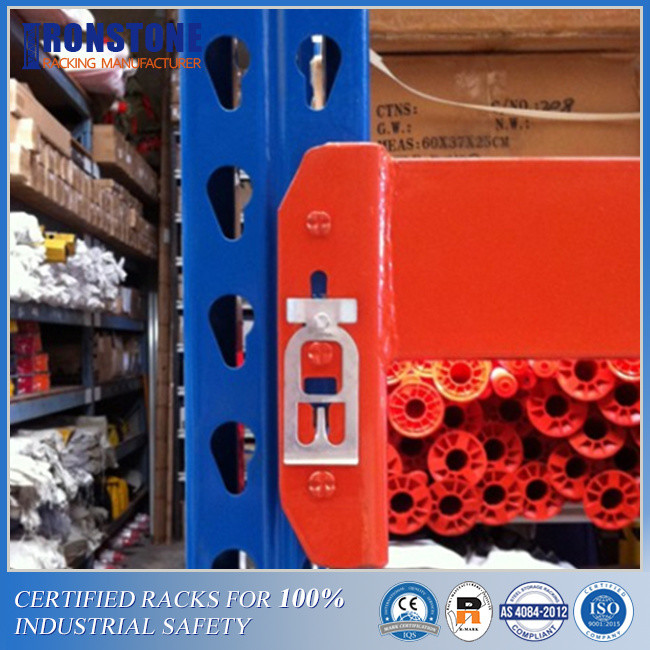

Beam Connector Type SP & SL Safety Locker
Surface finish Powder coating &Galvanized
Application Environment Normal Temperature or Cold Room (Max -40C)
Certification RMI Certification, ISO9001, CE
Free Sample Available
OEM Available

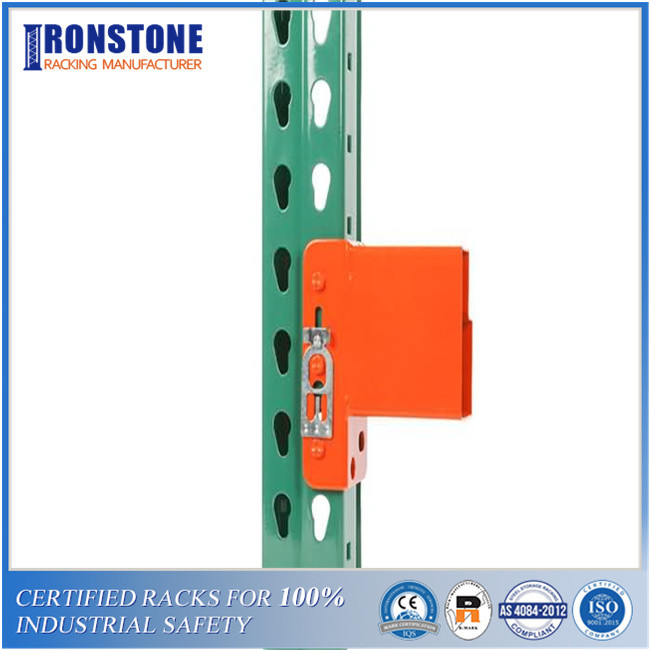

►The hole shape of the column is teardrop type, which is more beautiful and more in line with the American aesthetic concept.


► Assembly structure of the beam with interlock can achieve heavy bearing capacity, which is more firm.



►Different sizes are available.



►Simple operation and quick assembly. Economical installation.



►Supply both bolted uprights and welded uprights.



►The cargoes stored in the rack are not extruded, and the material loss is small, which can ensure the integrity of the cargoes themselves and reduce the loss in the storage part.



► It meets the modern enterprise's needs of management for low cost, low loss, and high efficiency of the logistics chain.



                     Highly Engineered US Standard Teardrop Rack With Seismic Calculation 0



More Details about Teardrop Selective Pallet Rack

Highly Engineered US Standard Teardrop Rack With Seismic Calculation 1




Ironstone offers warehouse service for our customers, including:



▲ Site survey and permitting service



▲ Racking layout design and engineering service



▲ Project management



▲ Racking installation



▲ Racking system inspection



▲ Freight and shipping coordination



▲ Fire and seismic consultation





Q1:Does all racks produced by your company?

A1: Yes, we're a direct manufacturer with over 20 years of experience, main products of us include Pallet Racking, Shelving, Radio shuttles, Cantilever, Mezzanines, etc. All products are 100% produced by ourselves.


Q2: Where is your company located?

A2: Our factory is located in Jiangning District, Nanjing, Jiangsu, China, close to Nanjing Port, convenient for delivery 90,000 sqm production plant, which enables a strong production capacity and stable quality.


Q3: What certification do your products pass?

A3: We're ISO9001 certificated company. Rack systems are strictly designed and produced based on CE and AS4084:2012 standards for storage racks, and comply with FEM and RMI standards.


Q4 How long of your warranty period?

A4: We afford a 10-year warranty and life insurance services for all racking products. For any quality issues caused by the quality of products, we'll provide free parts for replacement.


Q5: Are you able to provide installation service?

A5: We have a mature installation team with rich project experience. For some complicated cases, our engineer could come to the project site and help clients with installation work. Normally, we can offer solutions for your problem through email, mob, and video calls within 24 hours.


Q6: Do you provide the samples?

A6:We can provide the product samples for you to test. Samples can be transported by sea, land, and air.



A7: We can provide OEM ODM service, we know that brand owners care about the quality of products, so our products from the choice of materials, and product style design will be strictly in accordance with your product design drawing design. At the same time, we have a professional research and development team. If you need a product with special functions and requirements, you can also communicate your ideas with us.


     Should any issue you are concerned about, feel free to contact me before and after sales.
