Double Deep Metal Unified Pallet Rack With Double Inventory

Double Deep Metal Unified Pallet Rack With Double Inventory
Features Gallery Product Description Request A Quote
Material: High Strength Steel-/American Standard Steel
Color: RAL Code: Blue, Orange, Yellow, Grey, White, Etc.
Application: Food, Beverage Industry, Etc
Dimension: H:2~16.5Mts,Depth: 0.6~1.5Mts, Width: 1~3.9Mts, Customizable As Request
Load Capacity: 500kgs~4000kgs/Layer, 4000kgs~30000kgs/Bay
Certification: RMI / AS4084-2012 / CE / ISO9001
High Light:

OEM Double Deep Pallet Racking System


red Double Deep Pallet Racking System


30000kg double deep warehouse racking

Basic Infomation
Place of Origin: China
Certification: RMI, AS4084, ISO9001, CE
Model Number: VHD-DB Model
Payment & Shipping Terms
Packaging Details: Plastic stretch film, corrugated paper, Cartons, wooden bars, crates, and metal strips, etc.
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 3000 Tons per month
Product Description

OEM New Type Double Deep Metal Pallet Warehouse Storage Rack




Double deep rack series are derived from selective pallet racks, it is consist of two standard selective racks set up back to back. Its simple structure and high storage capacity make it double inventory than ordinary rack type.


These racks require special forklifts, and their specifications can be modified according to customer requirements. This rack system is widely used in tobacco, food and beverage, packaging, and other industries.

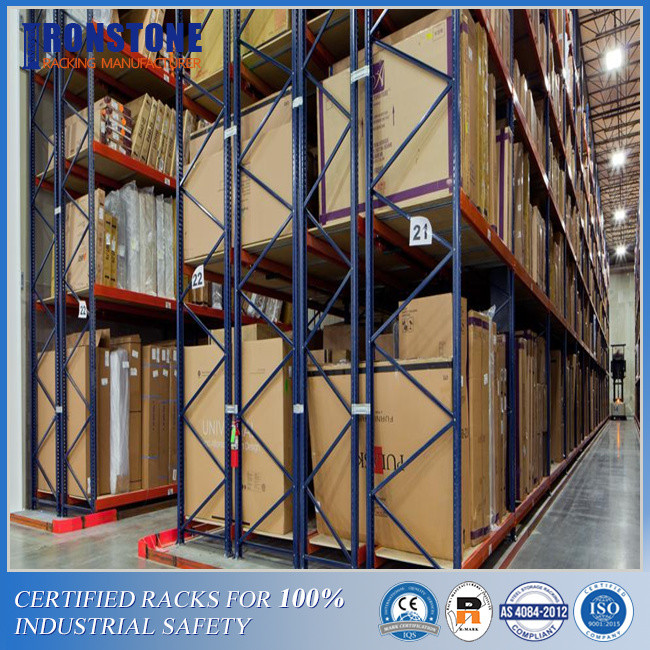

Double Deep Metal Unified Pallet Rack With Double Inventory 0






    ♦ Frames


The double deep pallet rack system has the same basic structure as the selective pallet rack. The upright frames are composed of two columns, several horizontal bracing, and several diagonal bracing. Usually double deep rack is consist of four frames together.



    ♦ Beams


As a important role in the rack, the beam is the support part of the rack, it provides the storage space for cargo, it may also be equipped with partitions, which may be steel plates or wire decks to use pallets to match different sizes.



    ♦ Pallet supports


Pallet supports can provide added space for storage in needed if the size of the cargo is not suitable. Moreover, it makes cargo more stable and safe, its length and width are determined by cargoes and racks.



    ♦ Row spacer


Row spacer is used to connect each pallet rack bay, it saves space in aisles by connecting individual shelves together into a group, which makes racks more neat and unified.



Double Deep Metal Unified Pallet Rack With Double Inventory 1





The picking rate of the selective pallet rack is 100%, which can achieve FIFO, while the utilization rate of space of double deep rack system is higher, but the picking rate is only 50%, so it is difficult to achieve FIFO.


Selective pallet rack and double deep rack have their own advantages and disadvantages, and the specific choice of which one should be based on the size of the warehouse and the demand for cargo.
