Creative Design Industrial Drive In And Drive Through Pallet Rack System

Creative Design Industrial Drive In And Drive Through Pallet Rack System
Features Gallery Product Description Request A Quote
Features: FIFO And LIFO
Name: Drive In And Drive Through Pallet Racks
Material: High Strength Steel
Usage Range: General Warehouse Distribution, Logistics, Cold Warehouse Storage, E-Commerce, Manufacturing, Food&Beverage, Retail, 3PL, Automotive, Record Storage
Dimension: H:2~16.5Mts,Depth: 2.1~10.5Mts, Width: 1.35~1.5Mts, Customizable As Request
Load Capacity: 500kgs~2000kgs/pallet
Certifications: R-Mark Certification/ AS4084/ CE / ISO9001
Safety Accessories: Wire Decks, Column Protectors, Pallet Supports, Etc.
Products Package: Steel Strip, Stretch Film, Corrugated Paper, Bubble Film, Plywood Pallets
Services: Free CAD Design, ODM&OEM, Transportation, Project Installation, Systems Maintenance Etc.
High Light:

FIFO Drive In Racking System


High Density Drive In Racking System


Q355 drive in and drive through racking

Basic Infomation
Place of Origin: Jiangsu, China
Brand Name: Ironstone
Certification: RMI, AS4084, ISO9001, CE
Model Number: HD-DI Model
Payment & Shipping Terms
Packaging Details: Plastic stretch film, corrugated paper, cartons, plywood pallet, bubble film, and metal strips, etc.
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 3000 Tons per month
Product Description

 Industrial Drive In And Drive-Through Pallet Rack




Drive-in pallet rack is a system of high-density storage, which is suitable for storage sample less, batch operation, and less selective products. This system is designed for last-in, first-out (LIFO) inventory management.



It needs to put the products on the pallet and store them one by one on the supported rail according to the direction of the rail. The forklift can drive into the tunnel to deposit and withdraw the products directly, which is quite convenient.

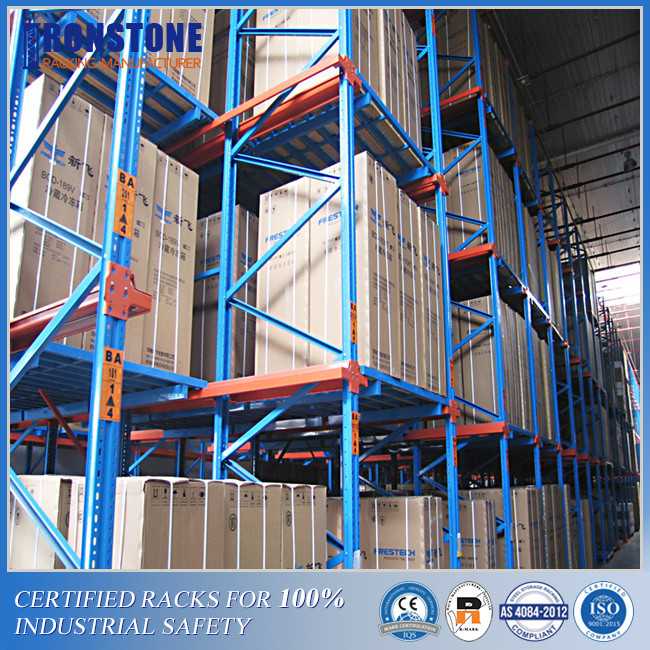

Creative Design Industrial Drive In And Drive Through Pallet Rack System 0




There is a similarity between the drive-in rack and the drive-through rack, the difference is in the drive-through system, there are two entrances for forklifts to enter while the drive-in rack only has one. Last-in, first-out (LIFO) and first-in, first-out (FIFO) system are both applied in drive-through pallet rack system, which is more convenient compared with single model.




Details of drive in and drive-through racks



Name Drive in and drive through the pallet rack system
Color Following RAL color system, customized color available
Loading weight 1000kg-2000kg per pallet, customized load capacity
Material Cold-rolled steel or structural steel
Characteristic First in-Last out(FILO) for drive-in, FILO and FIFO for drive-through
Standard accessories Safety protectors, bolts, nuts, safety pin
Components Upright frame(upright, horizontal bracing, diagonal bracing), beams, pallet rails








  • High-density storage


The type of pallet rack uses a channel as the storage medium, which saves the aisle space of each row of racks, increases the storage density, and space utilization rate and saves the storage space of the warehouse.



  • Cost-effective


High-density storage means that under the same space scale, this pallet rack can store more cargoes, which saving more investment costs for enterprises and achieves better storage benefits.



  • Fully assembled structure


Drive-in rack system adopts fully assembled structure, which is easy to disassemble, transport, adjust, move and so on. The total shelve depth cling to the wall area can be designed up to 7 pallet depths, while the total shelve depth in the middle area is usually within 9 pallet depths. The efficiency and reliability of forklift access improved obviously.

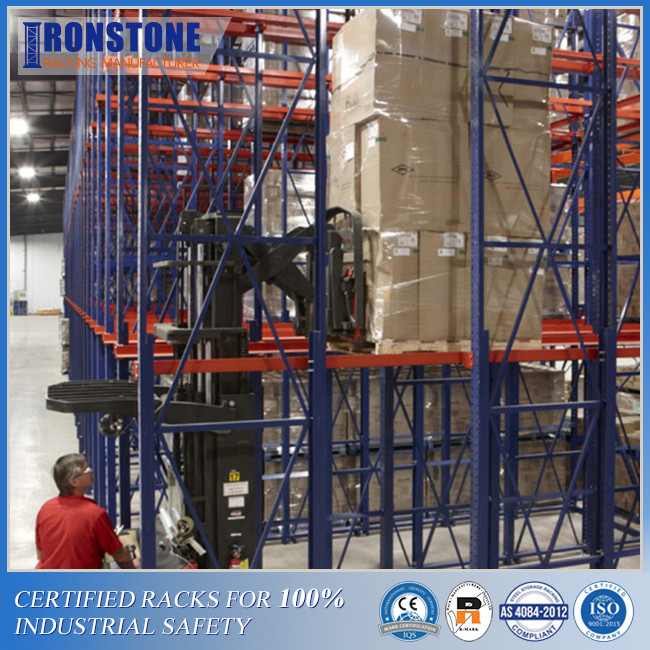

Creative Design Industrial Drive In And Drive Through Pallet Rack System 1
