Heavy Duty Teardrop Racking System RMI Certified American Standard

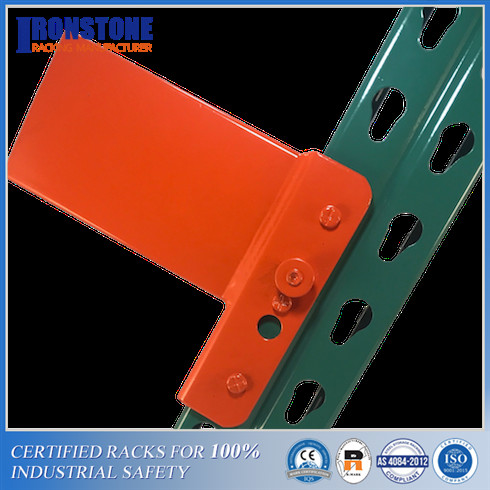

Named from the teardrop-shaped holes punched into the frame, the teardrop is the standard connection style in pallet racking today. Pallet rack beams have clips that are guided into the teardrop hole and locked into place, creating a stable rail.
| Name | Teardrop (US) Pallet Rack | Material | American standard steel |
| Depth | 24" - 60" | Weight Capacity | 1000-7000lbs/beam level |
| Width | 48" - 156" | Height | 96" - 432" or Customized |
| Frame Structure Type | Welded & Bolted 3" * 3" Upright frame with Seismic Baseplate | ||
| Beam Type | 2.5" - 6.25" Step Beam | ||
| Beam Connector Type | SP & SL Safety Locker | ||
| Surface finish | Powder Coating & Galvanized | ||
| Color | RAL6000(Green), RAL5003(Blue), RAL2001(Red Orange), RAL2004(Pure Orange), RAL1037(Safety Yellow), Or Custom Color As Request | ||
| Application Environment | Normal Temperature or Cold Room (Max -40C) | ||
| Certification | RMI Certification, ISO9001, CE,RMI/AS4084-2012 | ||
| Free Sample | Available | ||
| OEM, ODM | Available | ||
| Package | Plastic stretch film, corrugated paper, Cartons, wooden bars, crates, metal strips, etc. | ||
| Delivery time | 7~25 days as per order quantity | ||
| Accessories | Bolts and nuts, Upright protectors, decks, etc. | ||
| Assembly & installation | Detailed assembly instructions are available | ||
Benefits of Teardrop Pallet Racking
♦Compatibility - Most T-bar racks have posts, beams, and accessories that can be used interchangeably with other suppliers, making equipment procurement easier. Note: If you are using beams from different manufacturers, it is important to check the dimensions of the rack components. Even the smallest differences can reduce the structural integrity of the entire system.
♦Safety - Base physics, as well as the use of beam pins and safety clips, ensure that your racking system is sturdy and resistant to accidental unloading.
♦Easy to use-Teardrop racking is easy to install and requires no specialized skills or tools.
♦Flexibility-The standardization of teardrop racking press styles allows warehouse managers to combine different columns and beams to meet their storage needs.

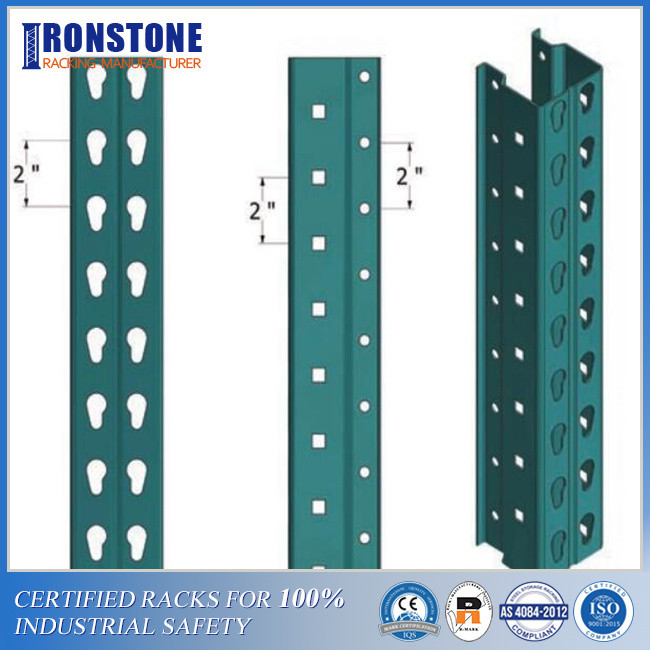

Teardrop frames are made of cold-rolled steel. Cold rolled steel frames are also available with many different types of beam connectors such as slot connectors, angle connectors, clip connectors, single bolt connectors, T-bolt connectors, etc. And the size of our most commonly used teardrop pallet rack frame is 42"D x 144"H, the size of our most commonly used teardrop pallet rack beam is 96'' L& 144'' L, the size of our most commonly used teardrop pallet rack Large Seismic Baseplates is 5.0''x8.0'' & 8.0''x8.0''.All these other brands and beam connectors are as easy to install and adjust as the teardrop frame.
Teardrop racking is available in several colors. Posts are usually painted green and beams are often painted orange. However, according to customers' requirements, teardrop pallet racking can be painted any color to match your existing racking or your company's colors.

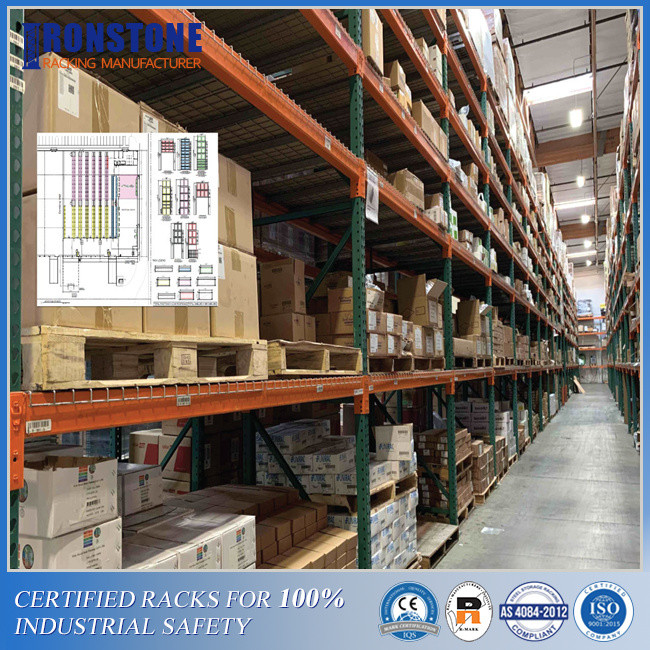

Teardrop racking and all other forms of cold-rolled racking are available in all sizes and capacities to meet the needs of all users. Our experienced sales team can design a system to meet your needs and racking preferences. If you delegate us the mission of designing storage systems in warehouses, we will design a racking system based on pallet size and weight, building configuration, and sprinkler system capacity.
Questions You May Care About:
Q1:Does all racks produced by your company?
A1: Yes, we're a direct manufacturer with over 20 years of experience, main products of us include Pallet Racking, Shelving, Radio Shuttle, Cantilever, Mezzanine, etc. All products are 100% produced by ourselves.
Q2: Where is your company located?
A2: Our factory is located in Jiangning District, Nanjing, Jiangsu, China, close to Nanjing Port, convenient for delivery. 90,000 sqm production plant, which enables a strong production capacity and stable quality.
Q3: What certification do your products pass?
A3: We're ISO9001 certificated company. Rack systems are strictly designed and produced based on CE and AS4084:2012 standards for storage racks, and comply with FEM and RMI standards.
Q4 How long of your warranty period?
A4: We afford a 10-year warranty and lifetime insurance services of all racking products. Any quality issues that are caused by the quality of products, we'll provide free parts for replacement.
Q5:Do you provide the samples?
A5:We can provide the product samples for you to test. Samples can be transported by sea, land, and air.
Q6: When is the delivery time?
A6: It usually takes 25 to 30 days. But the exact delivery time is different for different order quantities.
Q7:Can OEM/ODM?
A7:We can provide OEM ODM service, we know that brand owners care about the quality of products, so our products from the selection of materials, and product style design will be strictly in accordance with your product design drawing design. At the same time, we have a professional research and development team. If you need a product with special functions and requirements, you can also communicate your ideas with us.
