Double Deep Pallet Racking With Economical Storage Solutions

Double Deep Pallet Racking With Economical Storage Solutions
Features Gallery Product Description Request A Quote
Name: Double Deep Pallet Rack System
Material: High Strength Steel-/American Standard Steel
Color: RAL Code: Blue, Orange, Yellow, Grey, White, Etc.
Usage: General Warehouse Distribution, Logistics, Cold Warehouse Storage, E-Commerce, Manufacturing, Food&Beverage, Retail, 3PL, Automotive, Record Storage
Dimension: Height:2~16.5M,Depth: 0.6~1.5M, Width: 1~3.9M, Customizable As Request
Load Capacity: 500kgs~4000kgs/Layer, 4000kgs~30000kgs/Bay
Certification: RMI / AS4084-2012 / CE / ISO9001
High Light:

Q355 High Density Pallet Racking


High Density Pallet Racking System 1m Width


Q355 double depth racking

Basic Infomation
Place of Origin: China
Certification: RMI, AS4084, ISO9001, CE
Model Number: EHDDB Model
Payment & Shipping Terms
Packaging Details: Plastic stretch film, corrugated paper, Cartons, wooden bars, crates, and metal strips, etc.
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 3000 Tons per month
Product Description

Economic High-Density Double Deep Pallet Rack System for Industrial Storage

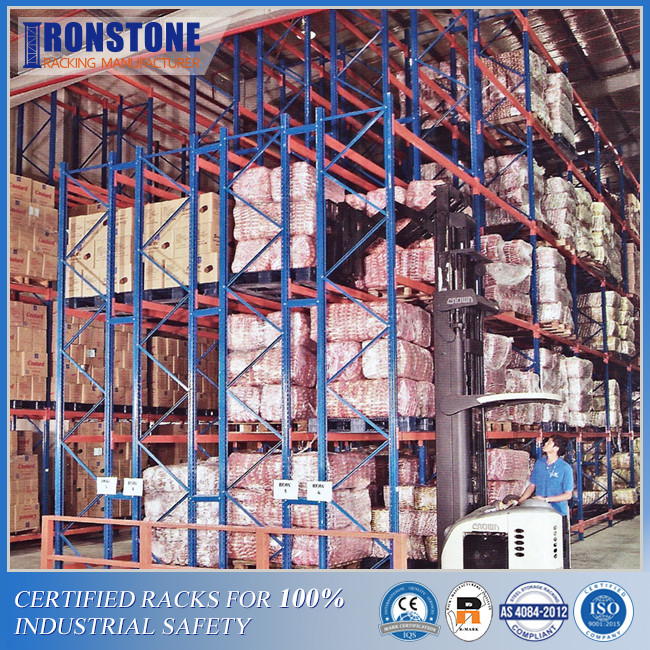

Double deep pallet racking is a pallet storage system used in facilities to increase the efficiency and density of pallet storage. A set of double deep pallet racks includes two sets of standard selective racks which are aligned back to back to form a double deep pallet storage system. Operators use double-reach or deep-reach forklifts to load and unload pallets from double-deep pallet racking systems.



These double-deep racks are often designed to be placed against a wall or attached to another double-deep racking section to maximize space utilization rate. Double deep racking is often found in warehouses with LIFO inventory cycles where productivity is high but space is limited. Double deep pallet racking system is able to maximize storage space by increasing space utilization rate by 60-65%.




Name Double Deep Pallet racking Material High Strength Steel-/American Standard Steel
Beam levels 2~15 tiers per bay rack Color (RAL Code) Green, Orange, Blue, Yellow, Etc.
Upright Frame Height 2500mm~15000mm Weight Capacity 500~3000kg per level
Beam Width 1000mm~3900mm Frame Depth 700mm~1500mm
Finish Epoxy Powder Coated for corrosion prevention
Usage Cargos Storage
Package Plastic stretch film, corrugated paper, Cartons, wooden bars, crates, and metal strips, etc.
Accessories Bolts and nuts, Upright protectors, decks, etc.
Certification RMI/AS4084-2012 /CE/ ISO9001
Delivery time 7~25 days as per order quantity
Assemble & installation Detailed assembly instructions are available as well as dispatching installation engineer for project installation at the site.

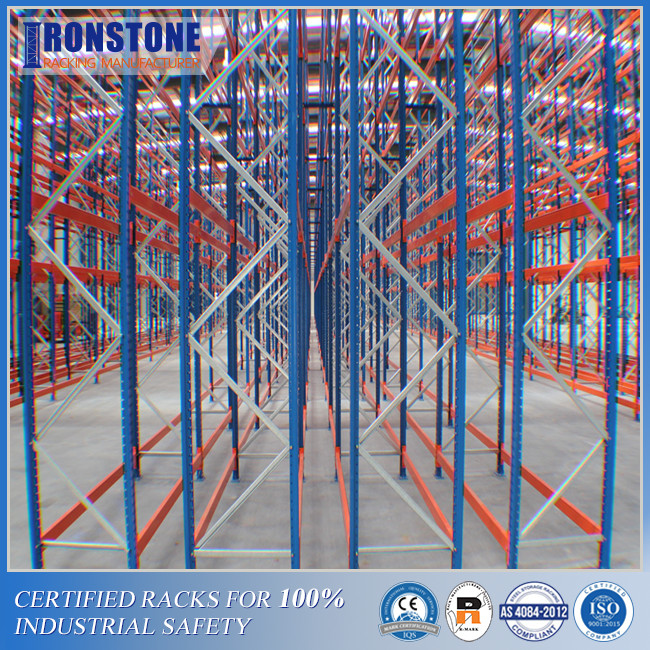

Double Deep Pallet Racking With Economical Storage Solutions 0


Each selection slot has a front and a back pallet. From the aisle, the forklift operator will access the front pallet at first and the back pallet is able to get access after the front pallet is removed, forming a LIFO (last in first out) stock rotation order. The last stored pallet will be the first one to pick up.



Double deep racking will increase your capacity with a tight budget. Similar to selective pallet racks, double deep pallet rack is available in a variety of heights, depths, bay lengths, and capacities and can be combined with rows of pallet racks allowing for a customizable solution.

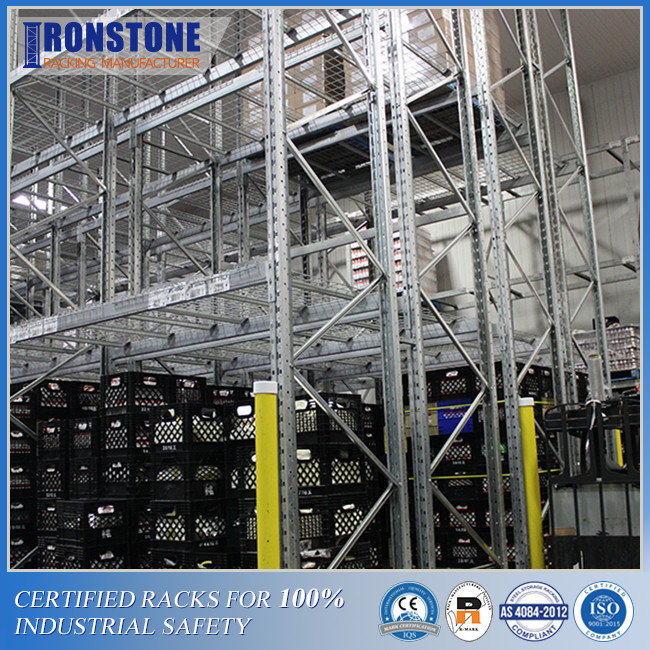

Double Deep Pallet Racking With Economical Storage Solutions 1



Features and Advantages of Double Deep Pallet Racking System:


  • Increase storage density by reducing space occupied by working aisles.


  • In double deep pallet racking system, 50% of pallets can get immediate access and the other 50% of pallets are not available unless removing other pallets. Thus, it is suitable for warehouses that don’t need 100% immediate access to all pallets.


  • Storage density is more important than stock rotation.


  • Flexibility can be achieved by expanding your facility or re-configuring your storage systems.


  • It is an economical solution among all high-density storage solutions.
