Warehouse Pallet Racking Systems

Warehouse Pallet Racking Systems
Features Gallery Product Description Request A Quote
Certification: RMI / AS4084-2012 / CE / ISO9001
Name: Pallet Steel Racking System
Color: RAL5017(Blue), RAL2004(Pure Orange), RAL1037(Safety Yellow), Or Custom Color As Request
Dimension: H:2~16.5Mts,Depth: 0.6~1.5Mts, Width: 1~3.9Mts, Customizable As Request
Load Capacity: 500kgs~4000kgs/Layer, 4000kgs~30000kgs/Bay
Services: Free CAD Design, All-round After-sale Services
Pitch: 50mm Or 75mm Adjustability
Brand: Ironstone, OEM/ODM Available
Usage: Distribution Centers, Cooler Rooms, Freezers, Industrial Warehouses
Materials: High Strength Steel/American Standard Steel
High Light:

75mm Selective Pallet Racking System


Q355 Steel Pallet Shelving


Q355 Commercial Pallet Racking

Basic Infomation
Place of Origin: Jiangsu, China
Brand Name: Ironstone
Model Number: HD-SRS
Payment & Shipping Terms
Packaging Details: Plastic stretch film, corrugated paper, cartons, wooden bars, crates, and metal strips, etc.
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 3000 Tons per month
Product Description

Warehouse Pallet Racking Systems



The warehouse pallet racking systems is the most widely used pallet racking system, providing single deep pallet storage. It is called “selective” because selectivity is its prime characteristic. Configured as a single row or back-to-back row, the selective pallet racking system makes every pallet accessible without moving away other pallets.

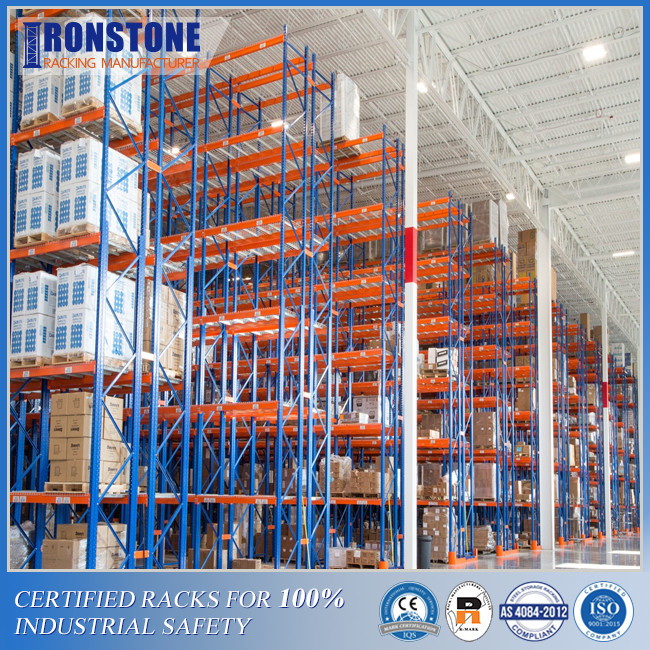

Warehouse Pallet Racking Systems 0


More details about warehouse pallet racking systems

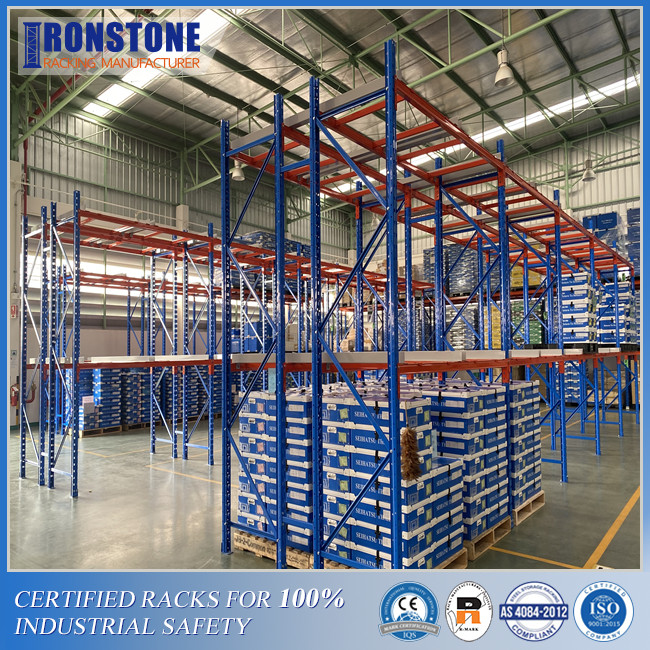

Warehouse Pallet Racking Systems 1



  • 100% selectivity, it is easy to get access to every pallet.
  • First in, first out inventory management.
  • Utilizes selectivity over density.
  • Cost-effective.
  • Ideal for storing a large number of various articles.


Material handling equipment: All types of forklifts.





The system requires little maintenance. When performing the inspection, check for beams, uprights, anchors, and accessories.




How to avoid excessive beam deflection?


Usually, besides an accidental collision, excessive beam deflection is mainly caused by overweight load or nonuniform loads. The engineered beam capacity refers to a uniformly distributed load. Therefore, loaded pallets should be in uniformly distributed weight and placed symmetrically and evenly in the bay.


In addition, overloading is prohibited. Otherwise, beams are easy to bow beyond the deflection limit designed for the maximum load, leading ta damage of beams, or even an increased risk of cargo falling or personnel injury.


Name Pallet rack Material  US standard steel
Shelf levels 2~15 tiers per shelving unit Color Green, Orange, Blue, Yellow, Custom
Upright Frame Height 2500mm~15000mm Weight Capacity 500~3000kg per level
Beam Width 1000mm~3900mm Frame Depth 700mm~1500mm
Finish Epoxy powder coated for corrosion prevention
Usage Cargoes Storage, Palletized loads production
Package Plastic stretch film, corrugated paper, cartons, wooden bars, crates, metal strips, etc.
Accessories Bolts and nuts, Upright protectors, decks, etc.
Certification RMI/AS4084-2012 /CE/ ISO9001
Delivery time 7~25 days as per order quantity
Assemble & installation Detailed assembly instructions are available

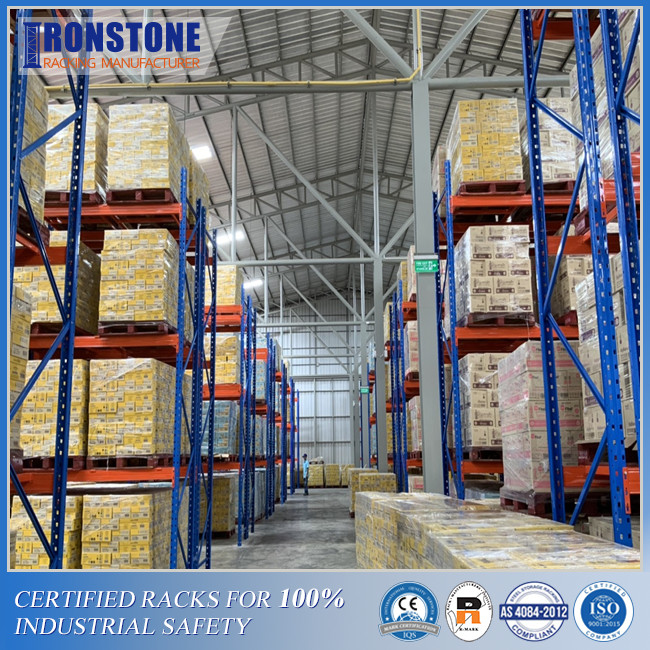

                    Warehouse Pallet Racking Systems 2



How to define the maximum permissible load of beams with A deflection limit?



When the professional engineer designs a beam for industrial steel storage racks, the maximum acceptable deflection is included in the calculation. That is to say, based on uniform loading, when the beam reaches its deflection limit, 1/180 of beam length, it also comes to its maximum permissible load.



                       Warehouse Pallet Racking Systems 3



However, it is necessary to mention here that the deflection limit is a reference for defining the maximum permissible load of racks, but not a parameter that guarantees the integrity of beams or racks. Even within the limit, racks also need careful inspections. It’s assumed that beam length divided by 180 is a cut-off point at which people can find the deflection of a beam surpassing its governed limit.



Our Factory and Workshops


Ironstone owns all kinds of production equipment, like advanced rolling machines, cutting machines, automatic punching machines, welding lines, automatic anti-corrosion epoxy powder painting lines, etc. Of course, we have skillful workers who operate and manage the whole production.

Warehouse Pallet Racking Systems 4

Warehouse Pallet Racking Systems 5
