Powder Coated Universal Drive-in Metal Warehouse Rack For Heavy Duty Storage

Powder Coated Universal Drive-in Metal Warehouse Rack For Heavy Duty Storage
Features Gallery Product Description Request A Quote
Name: Drive In Pallet Racking System
Material Type: High Strength Steel/American Standard Steel
Color: RAL Code: Blue, Green, Orange, Yellow, Grey, Galvanization, Etc.
Usage Range: General Warehouse Distribution, Logistics, Cold Warehouse Storage, E-Commerce, Manufacturing, Food&Beverage, Retail, 3PL, Automotive, Record Storage
Dimension: H:2~16.5Mts,Depth: 2.1~10.5Mts, Width: 1.35~1.5Mts, Customizable As Request
Load Capacity: 500kgs~2000kgs/pallet
Certifications: R-Mark Certification/ AS4084/ CE / ISO9001
Safety Accessories: Wire Decks, Column Protectors, Pallet Supports, Etc.
Products Package: Steel Strip, Stretch Film, Corrugated Paper, Bubble Film, Plywood Pallets
Services: Free CAD Design, ODM&OEM, Transportation, Project Installation, Systems Maintenance Etc.
High Light:

1.35m Width Drive In Racking System


Drive In Racking System Design RMI


RMI Heavy Duty Storage Racking

Basic Infomation
Place of Origin: Jiangsu, China
Brand Name: Ironstone
Certification: RMI, AS4084, ISO9001, CE
Model Number: HD-DI Model
Payment & Shipping Terms
Packaging Details: Plastic stretch film, corrugated paper, cartons, plywood pallet, bubble film, and metal strips, etc.
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 3000 Tons per month
Product Description

Certified High-Density Drive-in Pallet Racking System for Heavy Duty Storage




Drive in pallet racking System is regarded as a high-density pallet racking storage system, which makes the best use of available space in the facility at the expense of selectivity. Consequently, it offers the highest possible density of pallet storage, but provides the lowest selectivity. Therefore, it is ideal for products with very fast rotation rate, which moves on a “first pallet in, last pallet out (FILO)” basis.

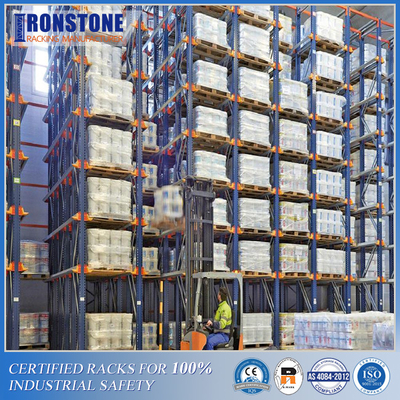

Drive-in pallet racks contain a series of tunnels with rails on either side, and pallets in drive in pallet racking system are directly placed on there rails. Each tunnel is storage space for pallets while at the same time serves as working aisle for forklifts. Forklifts can drive into every tunnel to load or unload pallets.



Usually, forklift operator will carry the first stored pallet to the deepest storing position so as to take best advantage of the space, then back pallets will be placed in front of the first pallet. The first pallet can not be accessed before removing other pallets, thus the first stored pallet will be the last one to pick up, which is called LIFO rotation order.



Name Drive-in pallet rack system
Color RAL color system, customized
Loading Weight 1000kg-2000kg per pallet, customized
Material Cold-rolled Steel
Characteristic First in-Last out(FILO)
Standard accessories Safety protectors, bolts, nuts, safety pin
Components Upright frame(upright, horizontal bracing, diagonal bracing), beams, pallet rails

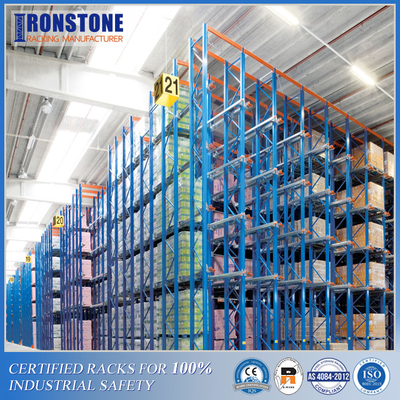

Powder Coated Universal Drive-in Metal Warehouse Rack For Heavy Duty Storage 0

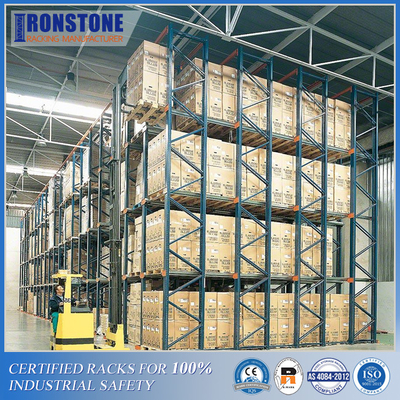

Powder Coated Universal Drive-in Metal Warehouse Rack For Heavy Duty Storage 1




Characteristics and Benefits of Drive-in Pallet Racking System:



  • High-density pallet racking system, with virtually unlimited depth.


  • No specialized material handling equipment is needed.


  • Drive in pallet rack is less expensive than dynamic storage solutions such as push-back pallet rack and pallet flow rack.


  • Level storage medium: do not need to be concerned about height restriction in sloping systems like push back pallet rack and pallet flow rack.


  • LIFO rotation order: when it is time to replenish cargoes, you need to ensure that tunnels are being fully emptied before replenishing.


  • Significant reduction in pick slots, as there are fewer aisles and each tunnel can store only a single SKU, from floor to ceiling. For example, in a 4-level system, there are 4 times fewer pick slots on any aisle compared with other systems. In addition, compared to the standard selective pallet racking system, there are added slots lost since there are fewer aisles in a given floor area.


  • Typically, observed capacity utilization is lower than for other systems, around 60%-70% is common.


Applications of Drive-in Pallet Racking System:



  • Refrigerated warehouses


  • Food and beverage


  • Automotive


  • Agricultural


  • Chemical and barrel storage


  • Pharmaceutical

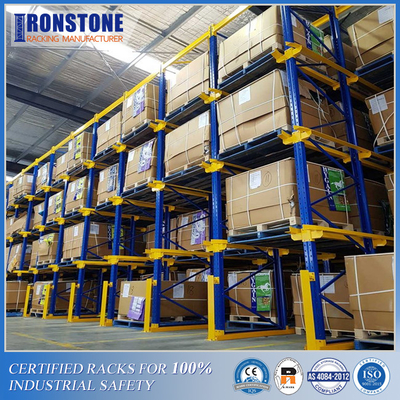

Powder Coated Universal Drive-in Metal Warehouse Rack For Heavy Duty Storage 2
