American Standard Step Beam Wire Mesh Products

1*20ft
MOQ
USD$0.85/KG
Price
American Standard Step Beam Wire Mesh Products
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Wire Mesh Decking
Material Type: Good Quality Steel Q355
Dimension: Custom As Request
Load Capacity: 300~800 Kg
Finish: Galvanized Or Powder Coated
Products Package: Steel Strip, Stretch Film, Corrugated Paper, Bubble Film, Plywood Pallets
Application: American Standard Pallet Rack Systems, Step Beams, Selective Racks
Mesh Sizes: 50*50mm, 50*100mm
Channel Type: U Channel Or Flanged Channel
Wire Decks Pattern: Waterfall Or Flush Flat Pattern
Load Capacity: 500 - 1500 KGS
High Light:

Step Beam Wire Mesh Products

,

Wire Mesh Products Decking 36×46in

,

pallet wire decking 36×46in

Basic Infomation
Place of Origin: Jiangsu, China
Brand Name: Ironstone
Certification: RMI, AS4084, ISO9001, CE
Model Number: WMP
Payment & Shipping Terms
Packaging Details: Plastic stretch film, Corrugated paper, Cartons, Plywood Pallet, Bubble film, and Metal strips, etc.
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 3000 Tons per month
Product Description



Popular American Standard Steel Wire Mesh Decking Used On Step Beams







Steel wire mesh decking is a kind of important accessories in pallet racking system for additional support and protection. Consist of supported tubes and meshes, wire mesh decks can be customized with different sizes and patterns.







The commonly wire deck sizes are as following:





Standard U channel waterfall wire decks Pallet deck
Dimensions (D×W) (inches) Dimimensions (D×W) (inches)
24"×46" 42"×46" 24"×46"
30"×46" 42"×52" 36"×46"
36"×34" 42"×58" 36"×52"
36"×46" 48"×34" 42"×46"
36"×52" 48"×46" 42"×52"
36"×58" 48"×52" 44"×46"
42"×34" 48"×58" 48"×46"







American Standard Step Beam Wire Mesh Products 0

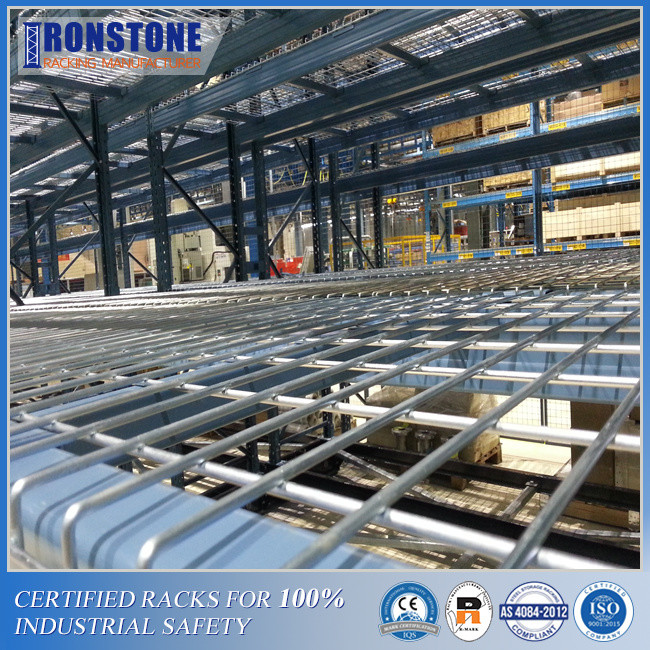

Step beam, as we have mentioned before in our former article, which face looks like a step or "L" shape. For this structure of step beams in US teardrop pallet racking systems, waterfall pattern wire decks are especially suitable. This waterfall shape edge will cover some outside parts of step beams with additional stability and protection.





Standard waterfall wire deck with U shape channel is the most universal type used in step beams. A typical standard waterfall wire deck has 3 channels which rest on the step beams bearing loading capacity. Usually, the U shaped slot is upward welded. But sometimes, inverted channel is also used in food industry which can stop the dirt from accumulation for clean application.







American Standard Step Beam Wire Mesh Products 1American Standard Step Beam Wire Mesh Products 2







American Standard Step Beam Wire Mesh Products 3







Features





1) Wire decks with meshes are visual friendly for goods picking and placing;





2) Galvanized wire decking is clean and hygienic with little dust gathering;





3) Facilitated with wire decks, the beam level can support more weight with flexible storage packages;





4) The steel decks with waterfall edge is easy to install without special tools involved;





5) Added with wire decks, hand-picking boxes and cartons can be storaged safe and fast;





6) With strong U shaped steel channel welded, more strength and durability are added to the storage system;





7) Wire mesh decking is fireproof having a lot of meshes and holes for water diffusing;









Wire Mesh Decks Packages





Ironstone pays a lot attention to the wire decks packages for long-distance shipping security and container space saving. The package process can be concluded into three steps:







Step1: Stacking wire decks together up to 2.4m making full utilization of the container's vertical space and and wrapped up with paper shells and plastic strips.







Step2:  Using wooden pallets on the bottom for support, protection, an easy loading and unloading during shipping.







Step3: Covering the whole package unit with more stretch films, plastic banding and metal strips for final fixing and outside protection.







American Standard Step Beam Wire Mesh Products 4







With our experienced workers and professional wrapping machines, Ironstone wire decks can be well packaged and shipped to our clients securely and completely without scratches and damages. At the same time, we also make full use of the container space for shipping cost saving and always place our clients' benefits at first.







American Standard Step Beam Wire Mesh Products 5
