Galvanized Corrosion-protected Waterfall Wire Decking

Galvanized Corrosion-protected Waterfall Wire Decking
Features Gallery Product Description Request A Quote
Name: Galvanized Wire Mesh Decks
Material Type: Stainless Steel, Mild Steel Q355
Color: Galvanized
Dimension: Custom As Request, D1100*W880
Load Capacity: 500 - 1500 KGS
Finish: Zinc/hot Dip Galvanized/powder Coating
Products Package: Steel Strip, Stretch Film, Corrugated Paper, Bubble Film, Plywood Pallets
Application: Pallet Rack Systems, Selective Pallet Rack, Warehouses, Industrial Storage
Wire Guage: 4.5mm, 5mm, 5.5mm, Etc
Feature: Corrosion Protection
Mesh Sizes: 50*50mm, 50*100mm
High Light:

Galvanized waterfall wire decking


waterfall wire decking D1100*W880


pallet racking mesh decks D1100*W880

Basic Infomation
Place of Origin: Jiangsu, China
Brand Name: Ironstone
Certification: RMI, AS4084, ISO9001, CE
Model Number: WMP
Payment & Shipping Terms
Packaging Details: Plastic stretch film, Corrugated paper, Cartons, Plywood Pallet, Bubble film, and Metal strips, etc.
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 3000 Tons per month
Product Description

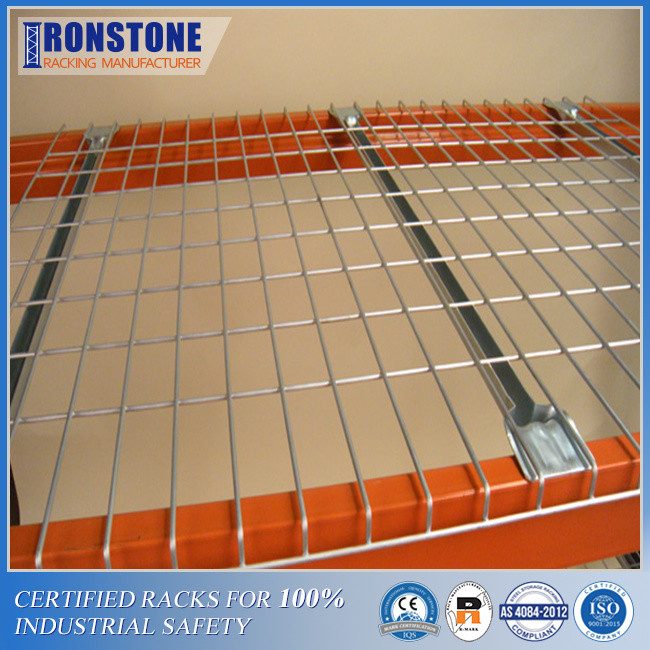

Galvanized Finishing Wire Mesh Decks For Warehouse Pallet Rack Storage System








Wire mesh decks are designed to offer additional support for your product and safeguard the safety of your staff by preventing loose items from falling from the racks. Pallet rack wire decks are constructed with metal mesh girds and supported channels which are welded to the bottom of the mesh surface bearing load capacity and increasing decks rigidity.



Fitting into beams to form a shelf level for materials, wire decks are widely used in pallet racks aiding for products storage and retrieval, palletized or unpalletized. With different depth and width and mesh girds density, wire decks can bear varified load capacity. The following form lists some commonly used wire deck sizes. You can also customize with your manfacturer as your personal requirement.




Wire Mesh Decking Loading Capacity



Loading capacity(kg)




Mesh girds (mm)


















1100×880 1000×1090 1200×1090 1200×1340




Galvanized Corrosion-protected Waterfall Wire Decking 0







The basic function of wire decking is to provide support for open and split product and also to avoid the the falling of loose items that may cause cargo damage or operators injury. Increasing safety and rigidity during pallets retrieval and storage process, the strength and stability of the racks are improved with wire decks.




Galvanized Corrosion-protected Waterfall Wire Decking 1




Here are some benefits that make wire decks very popular:



► Easy to handle


The installation of wire decks can be very easy and some of them just need to be dropped into the structure.



► Improved fire safety


Sprinkler system can perform better during fire accident since water can pass through the wire mesh easily.



► Increased inventory visibility


With open wire mesh structure, a clearer view over upper level beams and products can be gained by operators since illumination system can also behave better, especially in dark warehouses.



► Maintenance free


Dusts and dirt are not likely to accumulate on the wire mesh decks making them very easy to maintain.



Improved air circulation


Air can penetrate through the racks with the mesh structure leading to a better circulation of heating and cooling, especially in cooler, or freezer warehouse.



► Flexibility


Wire decks can store multiple forms of products such as bins, cartons, picking boxes, bulks and can serve different pallet sizes.



► Versatility


Different types of wire decks with different parameters and specifications can accommodate to a wide rang of beams and racks.



► Durability


The wire decks, especially the galvanized wire decks can be very durable and can last a very long time if properly used.





Why Choose Ironstone Wire Decks?




Wire decks produced by Ironstone follow the ISO 9001 standard strictly with high quality and competitive price. Offering comprehensive  ranges of sizes and styles, our professional engineer will design you a great choice that perfectly suit to your pallet rack system.



For wire mesh decking finishes, powder coated and galvanized are both optional for your special application demands. Wire decks are often matched with hand-picking cartons and boxes storage and picking. And we can assure you a smooth touching without any sharp edges and hurt workers or products.




Galvanized Corrosion-protected Waterfall Wire Decking 2




To sum up, Ironstone can not only offer you storage pallet racks, but also a whole series of accessories to complete your warehouse storege systems that maximize your space utilization and productivity.
