New Type Industrial Storage Metal Drive-in Warehouse Rack with High Quality

New Type Industrial Storage Metal Drive-in Warehouse Rack with High Quality
Features Gallery Product Description Request A Quote
Name: Drive In Metal Racking Systems
Material Type: High Strength Steel/American Standard Steel
Color: RAL Code: Blue, Green, Orange, Yellow, Grey, Galvanization, Etc.
Usage Range: General Warehouse Distribution, Logistics, Cold Warehouse Storage, E-Commerce, Manufacturing, Food&Beverage, Retail, 3PL, Automotive, Record Storage
Dimension: H:2~16.5Mts,Depth: 2.1~10.5Mts, Width: 1.35~1.5Mts, Customizable As Request
Load Capacity: 500kgs~2000kgs/pallet
Certifications: R-Mark Certification/ AS4084/ CE / ISO9001
Safety Accessories: Wire Decks, Column Protectors, Pallet Supports, Etc.
Products Package: Steel Strip, Stretch Film, Corrugated Paper, Bubble Film, Plywood Pallets
Services: Free CAD Design, ODM&OEM, Transportation, Project Installation, Systems Maintenance Etc.
High Light:

AS4084 Drive In Racking System


Drive In Racking System FILO


FILO drive in storage racks

Basic Infomation
Place of Origin: Jiangsu, China
Brand Name: Ironstone
Certification: RMI, AS4084, ISO9001, CE
Model Number: HD-DI Model
Payment & Shipping Terms
Packaging Details: Plastic stretch film, corrugated paper, cartons, plywood pallet, bubble film, and metal strips, etc.
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 3000 Tons per month
Product Description

High-Density Drive In Drive Through Pallet Rack System for Homogeneous Products





Drive-in pallet rack system is a high-density storage solution that makes the best use of available space for storage by eliminating extra working aisles. Every lane in the system is served as storing space as well as an operating aisle for forklifts.



Drive-in pallet rack is made up of easy-to-assemble and easy-to-reset modular structure, making it easy to maintain and adjust to a new configuration.



In drive-in pallet rack system, one end is closed and forklifts have to drive into and off the system through the same open end, leading to LIFO storing and retrieving order. Besides, there is a similar pallet rack system called drive-through pallet rack system in which both end are open, and one is the entrance and the other is used as exit. Thus, the first stored pallet can also be the first one out that is FIFO order.



Drive in pallet rack system is an optimal choice for warehouses with large volumes of homogeneous products for which selectivity is not necessary but storage density is foremost.





Drive-in pallet rack system


RAL color system, customized

Loading Weight

1000kg-2000kg per pallet, customized


Cold-rolled Steel


First in-Last out(FILO)

Standard accessories

Safety protectors, bolts, nuts, safety pin


Upright frame(upright, horizontal bracing, diagonal bracing), beams, pallet rails

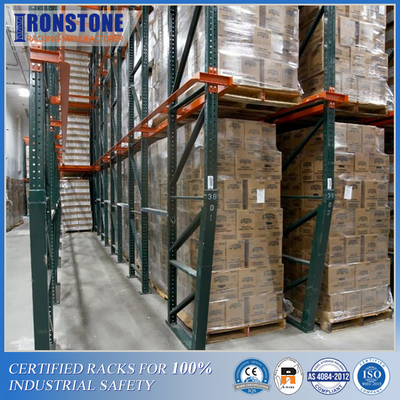

New Type Industrial Storage Metal Drive-in Warehouse Rack with High Quality 0





Features of Drive-in Pallet Rack System:



  • High-density storage, aisles are reduced for more storage space;


  • First in, last out inventory management;


  • Minimal investment, the structure is simple;


  • Limited stock rotation, forklifts have to drive into the system for storage and retrieval;


  • Density is prior to selectivity;


  • Suitable for storing a large number of homogeneous products that are not time sensitive;




Material handling equipment: counterbalance forklift truck



Maintenance: Since forklift operators need to drive inside the racking system directly, collision is prone to happen. Hence, it requires more frequent inspection than other systems. The whole frame, anchors and pallet rails are key points for the check.

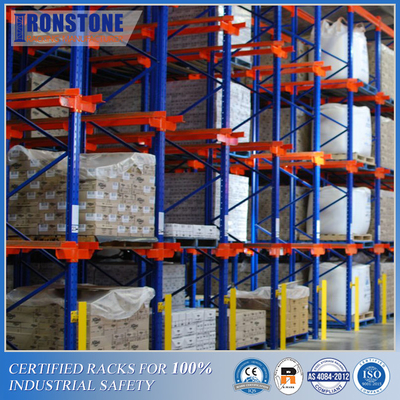

New Type Industrial Storage Metal Drive-in Warehouse Rack with High Quality 1




Advantages of Drive-in Pallet Rack System:



  • Provides certain product mixes with high storage density;


  • Compared with other high-density storage solutions, the capital investment is relatively low;


  • Realizes efficient storage, since racks are aligned back to back without aisles between them;


Limitations of Drive-in Pallet Rack System:



  • Inflexible, does not allow for SKU increase


  • Possible low storage utilization (typically 50% of positions used)


  • Low productivity (30% slower than alternative systems)


  • Requires standardized pallets


  • Risk of rack damage by fork trucks


  • LIFO – Last In First Out


  • Difficult to rotate time-sensitive products



Applications of Drive Pallet Rack System:



  • Cold Storage


  • Food & Beverage


  • Grocery


  • Manufacturers with limited SKU counts


  • Producers with limited product variation, date-segregated production or batch production
