OEM Adjustable Steel Drive-in Pallet Rack For Cold Warehouse Storage

OEM Adjustable Steel Drive-in Pallet Rack For Cold Warehouse Storage
Features Gallery Product Description Request A Quote
Material Type: High Strength Steel/American Standard Steel
Color: RAL Code: Blue, Green, Orange, Yellow, Grey, Galvanization, Etc.
Usage Range: General Warehouse Distribution, Logistics, Cold Warehouse Storage, E-Commerce, Manufacturing, Food&Beverage, Retail, 3PL, Automotive, Record Storage
Dimension: H:2~16.5Mts,Depth: 2.1~10.5Mts, Width: 1.35~1.5Mts, Customizable As Request
Load Capacity: 500kgs~2000kgs/pallet
Certifications: R-Mark Certification/ AS4084/ CE / ISO9001
Safety Accessories: Wire Decks, Column Protectors, Pallet Supports, Etc.
Products Package: Steel Strip, Stretch Film, Corrugated Paper, Bubble Film, Plywood Pallets
Services: Free CAD Design, ODM&OEM, Transportation, Project Installation, Systems Maintenance Etc.
High Light:

ODM Drive In Racking System


Drive In Racking System AS4084 2 Tiers


AS4084 Custom Pallet Racking

Basic Infomation
Place of Origin: Jiangsu, China
Brand Name: Ironstone
Certification: RMI, AS4084, ISO9001, CE
Model Number: HD-DI Model
Payment & Shipping Terms
Packaging Details: Plastic stretch film, corrugated paper, Cartons, Plywood Pallet, bubble film, and metal strips, etc.
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 3000 Tons per month
Product Description

High-Density Drive in Pallet Rack System with Customizable Design




Drive-in pallet rack system is a high-density storage solution with LIFO inventory management ideal for storing a large number of like-products that are not time-sensitive. As its name implies, it allows forklifts to drive into the system directly to store and retrieve pallet cargo.



Specifically, drive-in pallet racks are placed against a wall or closed at one end, and the other end is used as entry and exit at the same time. Each lane serves as working aisles for forklifts as well as storage space for pallets. Besides, there are rails in the horizontal direction supporting pallets and guiding the direction of forklifts.



Name Warehouse rack Material

Roll-formed steel

Structural steel

Shelf levels 2~15 tiers per shelving unit Color (RAL Code) Green, Orange, Blue, Yellow, Etc.
Upright Frame Height 2500mm~15000mm Weight Capacity 500~3000kg per level
Beam Width 1000mm~3900mm Depth 700mm~1500mm
Finish Epoxy Powder Coated for corrosion prevention
Usage Cargos Storage
Package Plastic stretch film, corrugated paper, Cartons, wooden bars, crates, metal strips, etc.
Accessories Bolts and nuts, Upright protectors, decks, etc.
Certification RMI/AS4084-2012 /CE/ ISO9001
Delivery time 7~25 days as per order quantity
Assembly & installation Detailed assembly instructions are available

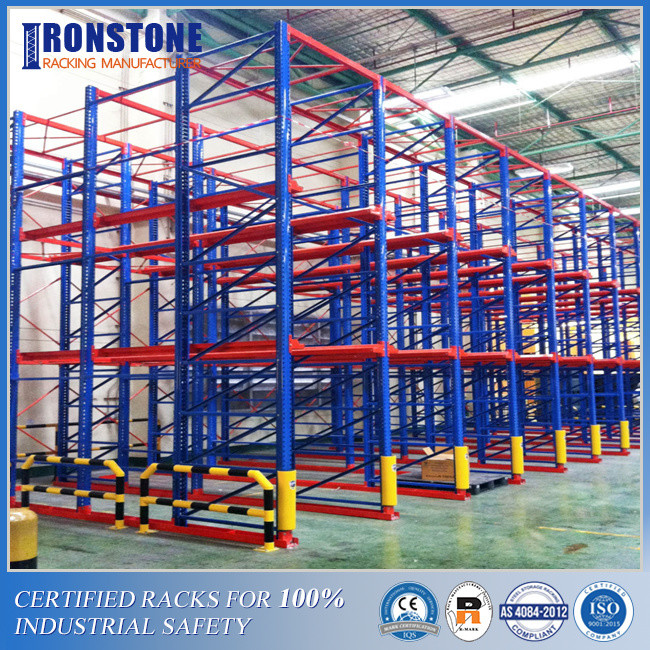

OEM Adjustable Steel Drive-in Pallet Rack For Cold Warehouse Storage 0




★ Loading and unloading in drive-in pallet rack system:



When it is time to load pallets, forklifts transport every pallet to the deepest available position, making pallets successively aligned from bottom to top, and from rear to front. The last pallet put into the row will be the first one to be taken out, realizing the LIFO inventory rotation direction.



Drive through pallet rack system:



It is a variant of the drive-in pallet rack system. Different from drive-in pallet racks, there is no barrier on both ends of drive-through pallet racks in which forklifts can drive completely through the system, making FIFO realizable. However, it’s not as stable as the drive-in pallet rack system because of the lack of connection.

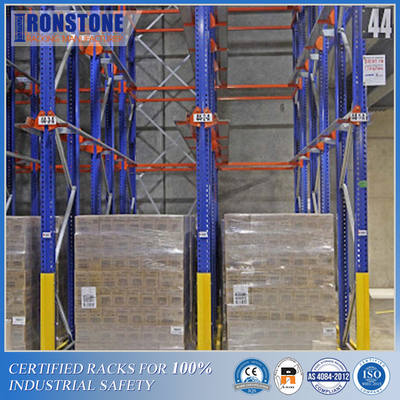

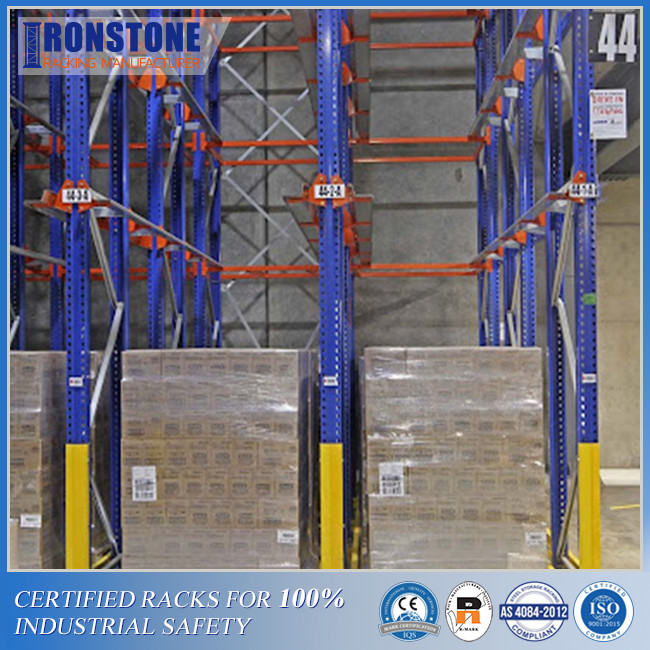

OEM Adjustable Steel Drive-in Pallet Rack For Cold Warehouse Storage 1




Advantages of Drive in Pallet Rack System:



  • High-density storage: Drive in pallet racks are designed suitable for forklifts to navigate into lanes for storage and retrieval, eliminating the need for multiple aisles. By reducing aisles, storage density is greatly improved. Within the same space, the storage density of drive in racks even doubles that of conventional selective racks.


  • Efficient space utilization rate: By transforming space used for aisles into storage space, warehouse space is better utilized so as to enhance storage utilization rate which is important for warehouse with limited available space.


  • Cost-effective: It is the least expensive high-density storage system. Compared with other high-density racking systems, the average cost of per pallet position in drive-in pallet racks is less.

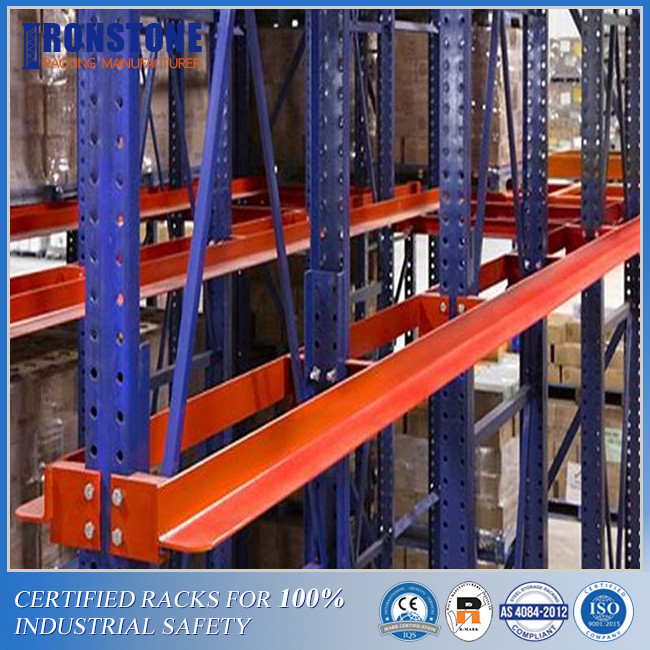

OEM Adjustable Steel Drive-in Pallet Rack For Cold Warehouse Storage 2





Tips for Drive-in Pallet Rack System:



  • Drive-in pallet racks take storage density prior to selectivity, so it’s best suited for warehouses with low mix, high volume SKUs.


  • The inventory rotation rate is limited in the system so it’s not ideal for time-sensitive products.


  • Following the principle of LIFO, all of the products in a given row must be unloaded to reach the last pallet. Hence, it is advisable to fill a row with the same SKU. Otherwise, in order to access the required SKU, it will need excessive material handling in a drive-in row with mixed SKUs.


  • It should be verified that the forklift will be used in the system is compatible with the racks’ dimensions since the forklift has to enter the system.


  • In confined lanes, the system is highly susceptible to damage from forklift collisions. Therefore, upright protectors and guard rails are essential to protect racks from damage. Besides, regular inspection and maintenance are also necessary to assure the stability of the system and the safety of personnel.
