Adjustable Heavy Duty American Teardrop Style Pallet Rack Systems With Selectivity

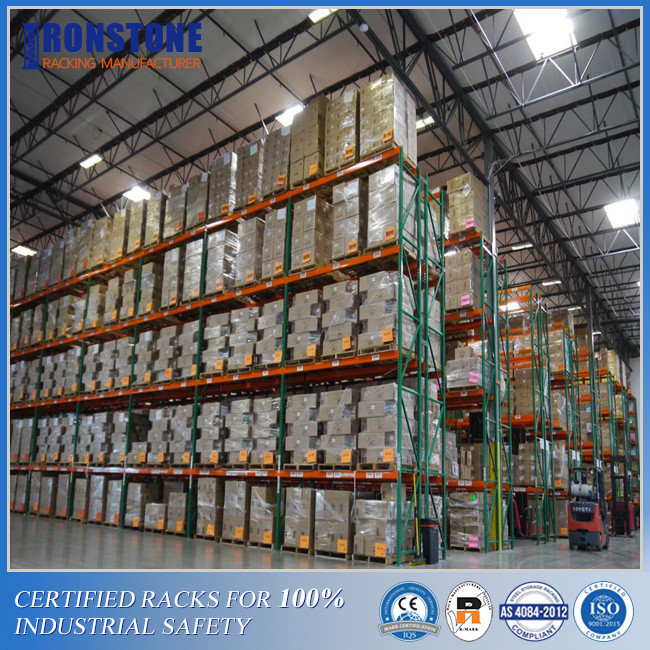

Teardrop pallet racking is most popular in American and Canada market. It is type of selective pallet racking because it offers tremendous selectivity. You are able to access every pallet in a selective rack system. Teardrop rack is the most economical and efficient way to store pallets or bulk boxes and maximize valuable storage space in your warehouse.
As the owner or leaser of a warehouse you must realize that you are paying for every square foot of space and to not maximize that space is a waste of money. It is very popular type of pallet racking in America and Canada etc. Teardrop rack series offers all the benefits of closed tube design plus compatibility with other teardrop patterns. Companies adding to older existing storage facilities can retain the existing rack beams and enjoy the benefits of the stronger more torque resistant teardrop uprights. New beams will also fit most existing uprights.
Teardrop pallet racking is the most economical and efficient way to store pallets or bulk boxes therefore maximizing valuable storage space in your warehouse. As the owner or lessee of a warehouse you realize that you are paying for every square foot of space and to not maximize that space is a waste of money. Our teardrop racks can be used for a variety of storage applications including selective pallet storage racks, narrow aisle selective racking, bulk storage, carpet storage, drum storage, cable reel storage, marine boat storage, retail racks, rack supported mezzanines and pick modules.
1) Omega type Section are available
2) Frame Bolted
3) Steel thickness is 15ga, 14ga , 13ga

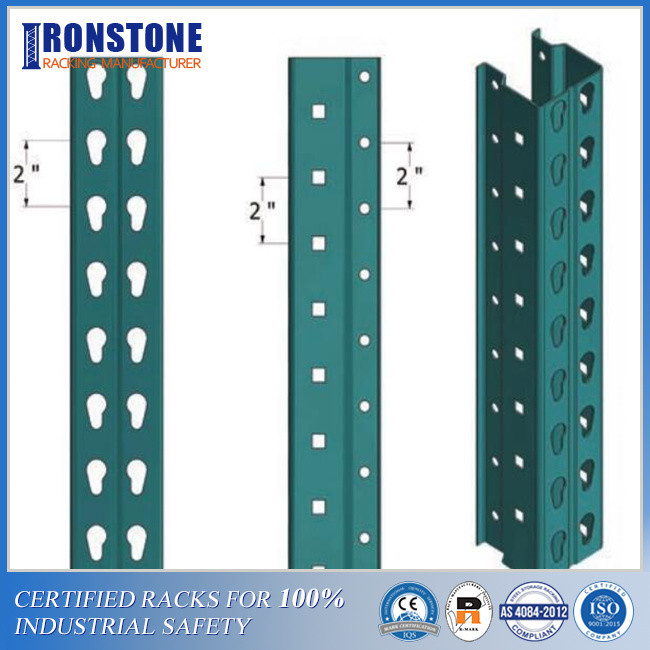

4) 2" inch pitch

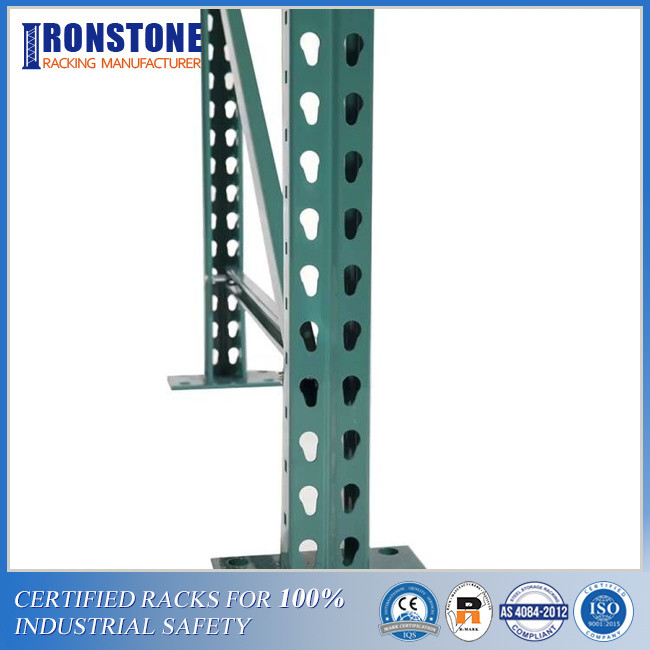

Teardrop Upright Frames are made of 14 or 16 gauge tubular steel with horizontal and diagonal bracing, including standard footplates. Our racking is available 3” x 3” x 15 gauge steel column with 17200 lbs. capacity; 3” x 3”*14 gauge steel column with 21700 lbs capacity or 3”x 3” x 13 gauge steel columns with 27200 lbs capacity.
Capacities are based on beam levels spaced every 48”. Our heavy-duty uprights offer greater resistance, and therefore less torque for greater resistance to fork truck damage. Affordable rack reinforcement will increase rack life and save you from replacing damaged uprights. Standard upright color is green or royal blue.
Upright Frames are made of two columns joined together by diagonal and horizontal Steel Bracing. We have high Strength rolled steel bracing that is either welded or comes factory bolted with grade five serrated nuts. Our teardrop rack is manufactured to RMI (Rack Manufacturers Institute Specifications).
Teardrop Step Beams are made of 14 gauge, 15gauge or 16 gauge rolling-formed steel and include lock Safety Clip which will make a clicking sound once the beam is secure and prevents it from dislodging. Full fillet welds add to the beam's strength and durability Safety orange beams allow lift truck drivers easy recognition of the beam level at high elevations. Safety orange color aids in safe loading and unloading of racks.
1) Spring safety locks
2) Both Step beam and Box beam are available
3) Special 3 rivets (6 inch) or 4 rivets (8 inch) beam connectors
Both Standard Foot Plate and Seismic Foot Plate are available.
1. Row Spacer
Create distance between each of your pallet rack bays. This allows you to keep all of the rows of pallet rack organized, in-line, and spaced evenly. The quantity of row spacers needed depends on the height of the uprights.
2. Pallet Supports
For pallets that are not large enough to fit on a pallet rack shelving level, pallet supports will provide the needed extra platform base. Pallet supports create the added support by cascading over the face of the beam (waterfall type). Typically, two pallet supports are needed per pallet position.
3. Column Protectors
By adding increased protection for your storage system, column protectors preserve the condition and structural strength of your racking. Our typical 12" column protector is designed with long lasting steel and easily bolts to the floor for structural support.
4. Wire Decks
Wire decks add utility to your storage unit by providing further stability for pallets stored on the racking. Decking can also be helpful for preserving stray product that may come out of boxes or cartons.
