Teardrop Pallet Racking System for General Warehouse Distribution

Teardrop Pallet Racking System for General Warehouse Distribution
Features Gallery Product Description Request A Quote
Color: RAL6000(Green), RAL5003(Blue), RAL2001(Red Orange), RAL2004(Pure Orange), RAL1037(Safety Yellow), Or Custom Color As Request
Usage Range: General Warehouse Distribution, Logistics, Cold Warehouse Storage, E-Commerce, Manufacturing, Food&Beverage, Retail, 3PL, Automotive, Record Storage
Dimension: H:8ft~45ft,Depth: 24in~60in, Width: 48in~156", Customizable As Request
Load Capacity: 1000lbs~10000lbs/Layer, 12000lbs~59400lbs/Bay
Certifications: R-Marks Certification
Safety Accessories: Wire Decks, Column Protectors, Pallet Supports, Pallet Back Stop Etc.
Products Package: Steel Strip, Stretch Film, Corrugated Paper, Bubble Film, Plywood Pallets
Services: Free CAD Design, ODM&OEM, Transportation, Project Installation, Systems Maintenance Etc.
Name: Teardrop Warehouse Storage Rack
Material Type: High Strength Steel/American Standard Steel
High Light:

Warehouse Teardrop Pallet Racking System


Logistics Teardrop Pallet Racking System


High Strength Teardrop Pallet Shelving

Basic Infomation
Place of Origin: Jiangsu, China
Brand Name: Ironstone
Certification: RMI Certification, R-Mark Certification
Model Number: HD-USTD
Payment & Shipping Terms
Packaging Details: Plastic stretch film, corrugated paper, Cartons, Plywood Pallet, bubble film, and metal strips, etc.
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 3000 Tons per month
Product Description

Teardrop Pallet Racking System For Sale

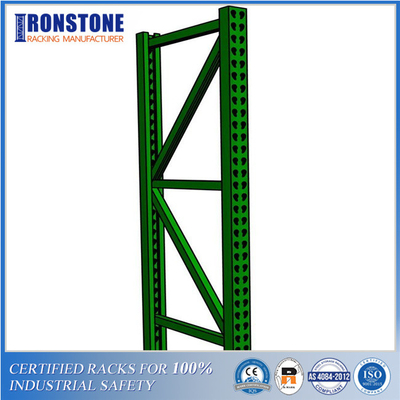

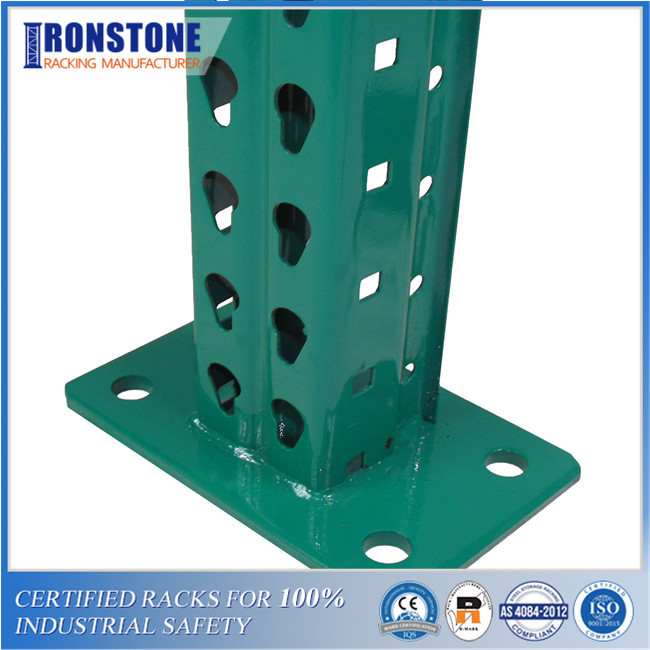

Teardrop pallet racks are one of the most common types of pallet racks used by warehouse storage and distribution centers. Teardrop pallet rack is another name for roll-formed selective pallet rack, which is commonly manufactured in a teardrop style (nicknamed because the holes on the column of the upright are shaped like a teardrop). Pallets then rest on the horizontal load beams that are held in place by mounting clips. Because the clips on teardrop configurations can be quickly removed, the shelves can be adjusted to different heights or reinforced to bear different weights to accommodate various load sizes.



                 Teardrop Pallet Racking System for General Warehouse Distribution 0




Advantages of Teardrop Selective Pallet Rack



• Plenty of Column & Beam sizes for option

• Designed to be 100% compatible with other "teardrop" style rack connections

• Ease of assembly and adjustability

• Universal industrial materials handling application

• Use American standard Steel with high tensile strength


Name Teardrop (US) Pallet Rack Material American standard steel
Depth 24" - 60" Weight Capacity 1000-7000lbs/beam level
Width 48" - 156" Height 96" - 432" or Customized

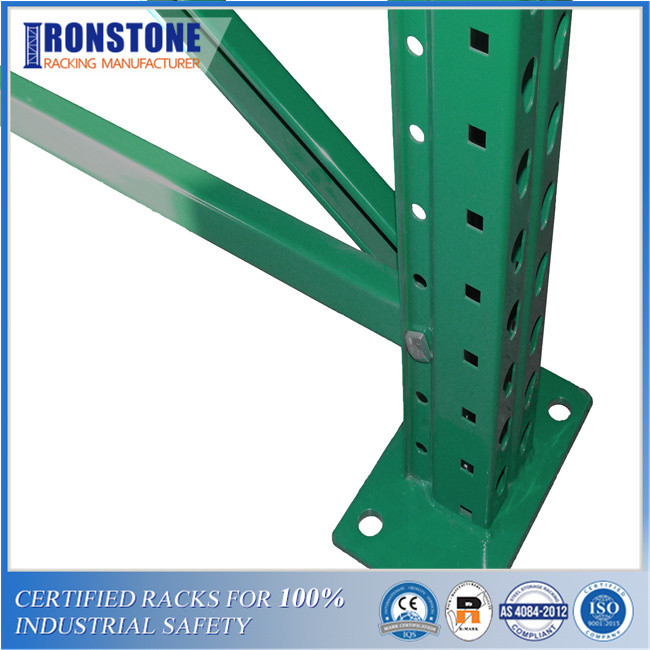

Frame Structure Type Welded & Bolted 3" * 3" Upright frame with Seismic Baseplate
Beam Type 2.5" - 6.25" Step Beam
Beam Connector Type SP & SL Safety Locker
Surface finish Powder Coating & Galvanized
Color RAL6000(Green), RAL5003(Blue), RAL2001(Red Orange), RAL2004(Pure Orange), RAL1037(Safety Yellow), Or Custom Color As Request
Application Environment Normal Temperature or Cold Room (Max -40C)
Certification RMI Certification, ISO9001, CE,RMI/AS4084-2012
Free Sample Available
OEM, ODM Available
Package Plastic stretch film, corrugated paper, Cartons, wooden bars, crates, metal strips, etc.
Delivery time 7~25 days as per order quantity
Accessories Bolts and nuts, Upright protectors, decks, etc.
Assembly & installation Detailed assembly instructions are available



More Details about Teardrop Selective Pallet Rack



         Teardrop Pallet Racking System for General Warehouse Distribution 1



Company Profile


  • Ironstone (China) storage equipment engineering founded in 1999, with 20 years of experience in the logistics industry, is a leading racking & shelving manufacturer and provider of warehouse storage solutions.


  • We're specialized in the design and production of Pallet Racking and Shelving Systems, as well as Cantilever Rack, Mezzanine Platform, Radio Shuttle Systems, ASRS, etc.


  • Ironstone provides ONE-STOP warehouse storage solutions, including Design, Consultant, Manufacture, Installation, Technical Guidance, and Maintenance.


  • Ironstone is well known for superior quality and excellent service. Our products have got the certification of ISO9001, CE, AS4084:2012, and R-Mark, and comply with FEM standards.


  • Over 20 years In Europe, Southeast Asia, and Australia market, We're proud to say that Ironstone is always providing first-class products to all customers.


  • Warmly welcome your visit to our factory in China! Hope we'll have a chance to work with you




Project Cases

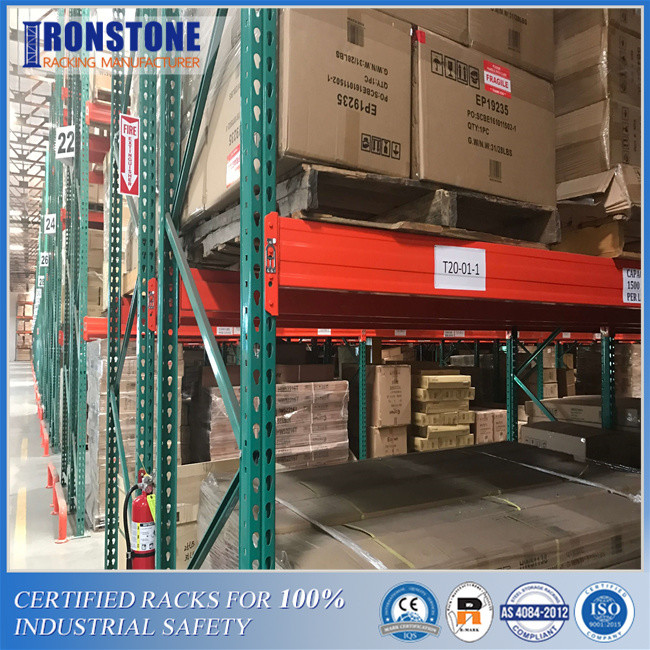

Projects completed in foreign markets, like the US, Mexico, Europe, Thailand, Argentina, South Africa, etc. received high praise from clients.



           Teardrop Pallet Racking System for General Warehouse Distribution 2




Product Certificates

Ironstone Has gained Professional steel storage rack testing certifications at MONASH University for the AS4084-2012 test standard as well as the R-Mark certification test at SEISMIC INC in the US.

Meanwhile, some other Documents such as ISO9001, CE, SGS supplier audit report Etc, are all certified at Ironstone. You can rest assured that you are buying racks and shelves without any quality problems.


R-Marks Certification


Teardrop Pallet Racking System for General Warehouse Distribution 3


AS4084 Certification


Teardrop Pallet Racking System for General Warehouse Distribution 4



Product Packages

We pay high attention to the package of racks with professional wrapping machines, to ensure the security of long-distance shipments. Special demand for the package is available. The way of packages typically use plastic stretch film, corrugated paper, wooden bars, crates, metal strips, etc. for bulk materials, Carton boxes, and pallets are used for accessories. We also make customized packages to customers' requirements.


Teardrop Pallet Racking System for General Warehouse Distribution 5



Ironstone Team Group

Ironstone team focus on providing high-quality racking & shelving storage solution and relevant services for our customers, we are confident to provide the best products and services.

The Mission of Ironstone Group is to be a customer-driven, innovative company providing the best products, solutions, and customer service attainable in the industry today with a commitment to ongoing improvement.



Pre-sale Service & After-sale Service


1. Project design & optimization support

Ironstone has professional design engineers who are experienced in offering you optimal storage solutions for optimizing your material and information flow. Based on engineering design, computer modeling, and CAD software design, we have successfully provided thousands of storage solutions.


2. Project installation Support

Ironstone provides project installation support, all assembly drawings would be transferred to our customers for easy installation, If customers' storage systems seem complicated and according to specific requests, Ironstone can dispatch installation engineers to instruct assemble, and install your rack systems on the site.


Teardrop Pallet Racking System for General Warehouse Distribution 6



Questions You May Care About


Q1:Does all racks produced by your company?

A1: Yes, we're a direct manufacturer with over 20 years of experience, main products of us include Pallet Racking, Shelving, Radio Shuttle, Cantilever, Mezzanine, etc. All products are 100% produced by ourselves.

Q2: Where is your company located?

A2: Our factory is located in Jiangning District, Nanjing, Jiangsu, China, close to Nanjing Port, convenient for delivery. 90,000 sqm production plant, which enables a strong production capacity and stable quality.

Q3: What certification do your products pass?

A3: We're ISO9001 certificated company. Rack systems are strictly designed and produced based on CE and AS4084:2012 standards for storage racks, and comply with FEM and RMI standards.

Q4 How long of your warranty period?

A4: We afford a 10-year warranty and lifetime insurance services for all racking products. For any quality issues that are caused by the quality of products, we'll provide free parts for replacement.

Q5: Are you able to provide installation service?

A4: We have a mature installation team with rich project experience. For some complicated cases, our engineer could come to the project site and help clients with installation work. Normally, we can offer solutions for your problem through email, mob, and video calls within 24 hours.

Should any issue you are concerned about, feel free to contact me before and after-sales.
