RMI-Certified American Standard Teardrop Pallet Rack

1*20ft
MOQ
USD$0.85/KG
Price
RMI-Certified American Standard Teardrop Pallet Rack
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Teardrop Pallet Racking System
Color: RAL6000(Green), RAL5003(Blue), RAL2001(Red Orange), RAL2004(Pure Orange), RAL1037(Safety Yellow), Or Custom Color As Request
Usage: General Warehouse Distribution, Logistics, Cold Warehouse Storage, E-Commerce, Manufacturing, Food&Beverage, Retail, 3PL, Automotive, Record Storage
Beam Length: Up To 6000mm
Frame Height: Up To 12000mm
Load Capacity: 500-4000kg/layer
Material Type: High Strength Steel/American Standard Steel
High Light:

Heavy Duty Teardrop Racking System

,

Teardrop Racking System 1000mm

,

Step Beam Teardrop Pallet Racks

Basic Infomation
Place of Origin: China
Brand Name: Ironstone
Certification: RMI, CE, AS4084
Model Number: TDPR Model
Payment & Shipping Terms
Packaging Details: Plastic stretch film, corrugated paper, Cartons, wooden bars, crates, and metal strips, etc.
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 3000 Tons per month
Product Description

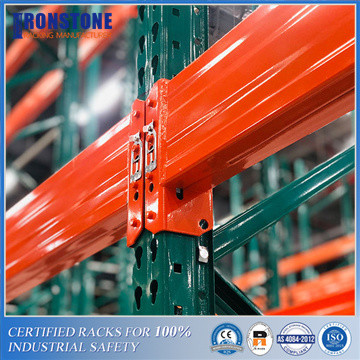

Heavy Duty Teardrop Pallet Rack with Multi-functional Design





Teardrop warehouse racking is a very common style of roll-formed racking. Teardrop beams are held in place by clips instead of bolts, making it faster to assemble and disassemble than bolted styles of pallet racking. Teardrop is a type of selective pallet rack because you can access every pallet. The teardrop beams are usually orange, and the frames are green.





The frames are welded together, instead of bolted, for added stability. Beams are adjustable in 2" increments. Holes are drilled on the face of the column, not the corners, maximizing strength. Used teardrop pallet rack is easy to assemble, has no clips or fasteners, and adjusts without tools. This storage rack design is economical, efficient, and adaptable in the application, due to quick assembly and adjustment without tools, and an affordable purchase price. Teardrop pallet rack is the most popular brand of pallet rack on the market today.





Name Teardrop (US) Pallet Rack Material American standard steel
Depth 24" - 60" Weight Capacity 1000-7000lbs/beam level
Width 48" - 156" Height 96" - 432" or Customized
Frame Structure Type Welded & Bolted 3" * 3" Upright frame with Seismic Baseplate
Beam Type 2.5" - 6.25" Step Beam
Beam Connector Type SP & SL Safety Locker
Surface finish Powder Coating & Galvanized
Application Environment Normal Temperature or Cold Room (Max -40C)
Certification RMI Certification,  ISO9001,  CE
Free Sample Available
OEM Available







Merits of Teardrop Pallet Rack





►Easy configuration: It is easy to incorporate new teardrop racks into old or already existing rack systems. If you buy teardrop pallet racks for the first time, you just need to buy new ones when you want to expand your storage space in the future.





►Cost-effective: Cost-effective, optimized structure design of frames and beams makes it possible to use less steel to cover the same area.





►Versatile accessories: A wide range of rack accessories for options – by choosing and adding various teardrop raking accessories into racking systems, you can make your storage and shipping processes easier while keeping expenses down and improving production.





►Convenient Adjustable: Beam levels can be moved easily, when you need to accommodate different sizes of products, you could adjust beam spacing after consulting with our engineers.





►Economical installation: Easy installation and dismantlement without special training.



100% Compatible with virtually all existing "teardrop" style rack connections!

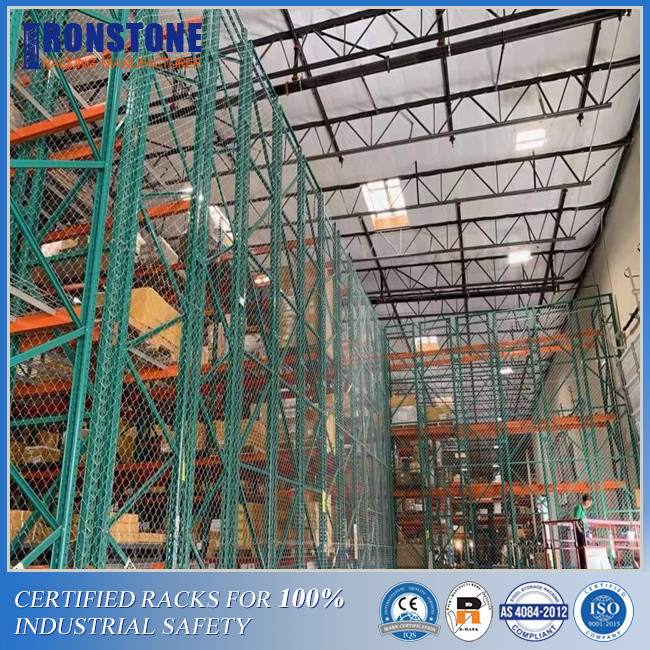

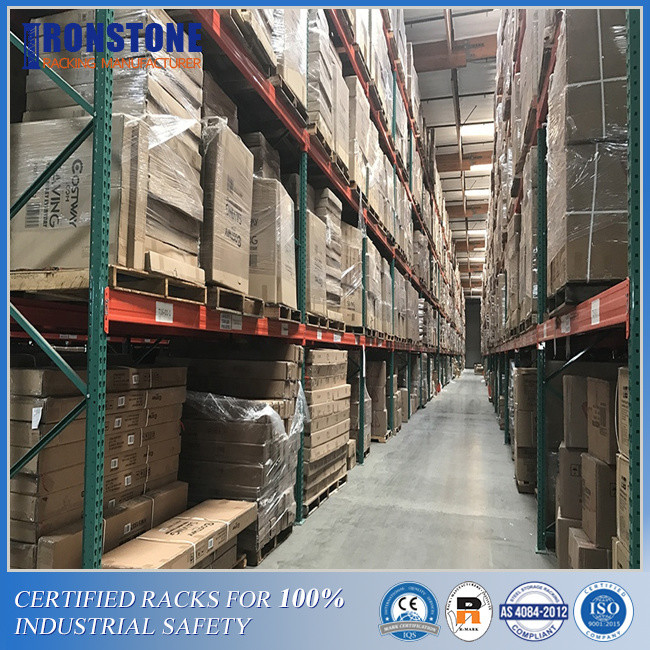

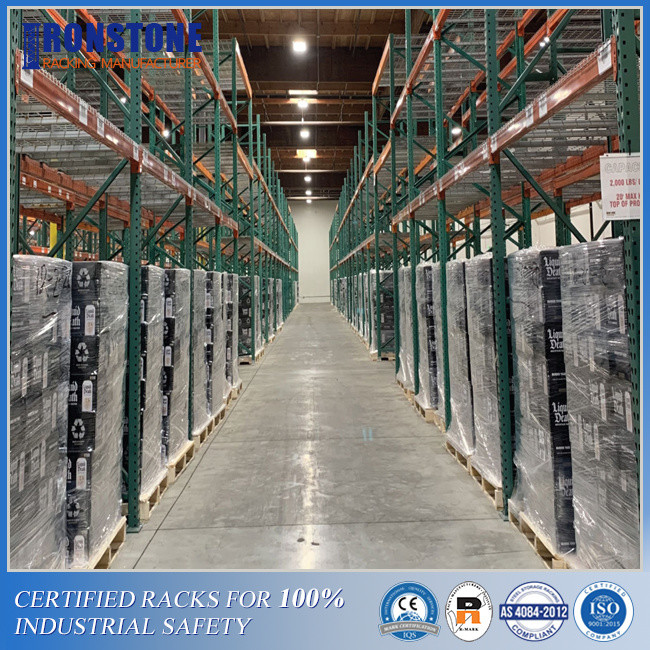

Project Application Cases





           RMI-Certified American Standard Teardrop Pallet Rack 0







Main Parts of  Teardrop Pallet Racks

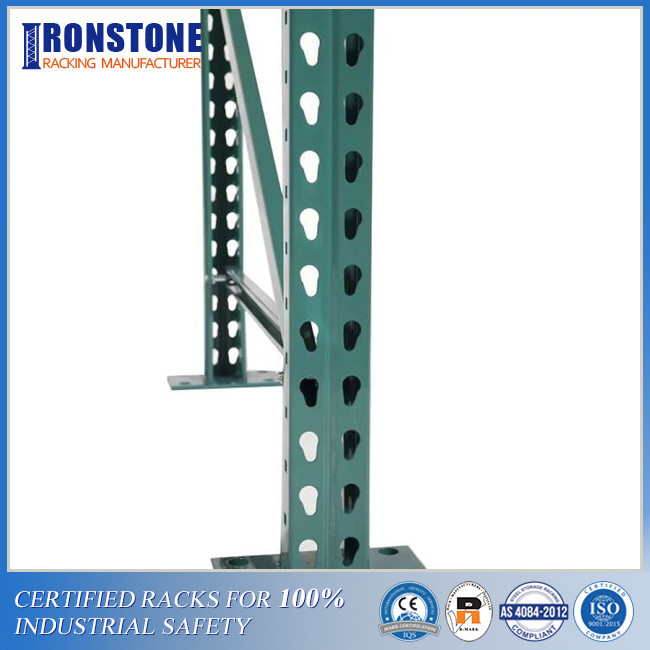

(1)Upright Frames





Available Posts



The standard post sizes are 3.0"*3.0" and 4.0"*3.0" with 12Ga~16Ga thickness available. After the combination of support bracings, the teardrop pallet rack upright frame will be formed in different dimensions according to different requirements.





The following is the most commonly used upright size:





Standard Upright Size





             RMI-Certified American Standard Teardrop Pallet Rack 1





                  RMI-Certified American Standard Teardrop Pallet Rack 2





One upright frame is composed of two posts and several horizontal and diagonal bracings, as well as footplates.

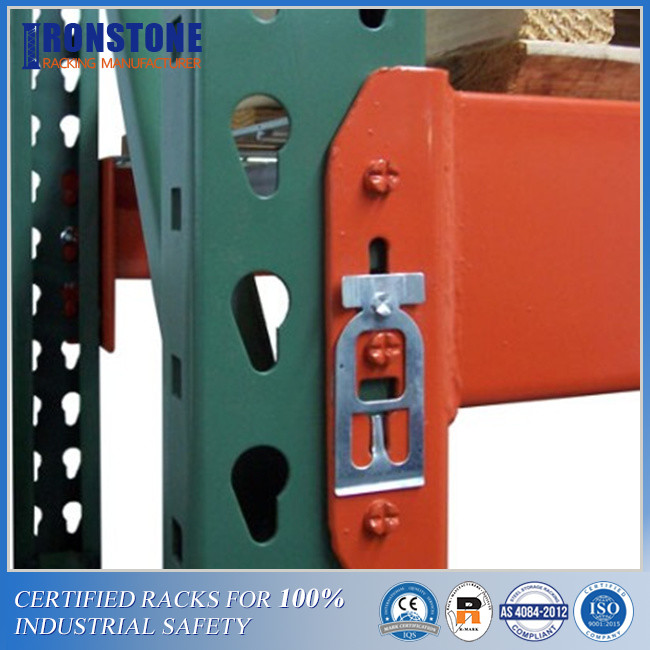

(2) Teardrop Beams





Available Beam Sections



The most popular teardrop beams are step-style with 1-5/8" step height, which could be used with wire decks as well as wood decks for additional requests.







Optional Step Beam



RMI-Certified American Standard Teardrop Pallet Rack 3







Commonly Used Size



Size Length         Thickness
2.5" 3 Pins 60" / 72" / 84" / 96" / 108" / 120" / 132" / 144" 16GA / 15GA / 14GA
3"
3.5"
4"
4.5"
5"
5.5" 4 Pins
6"







The most common length of teardrop pallet rack beams is 96", 108", 120", and 144".







Strengthened Step Beams

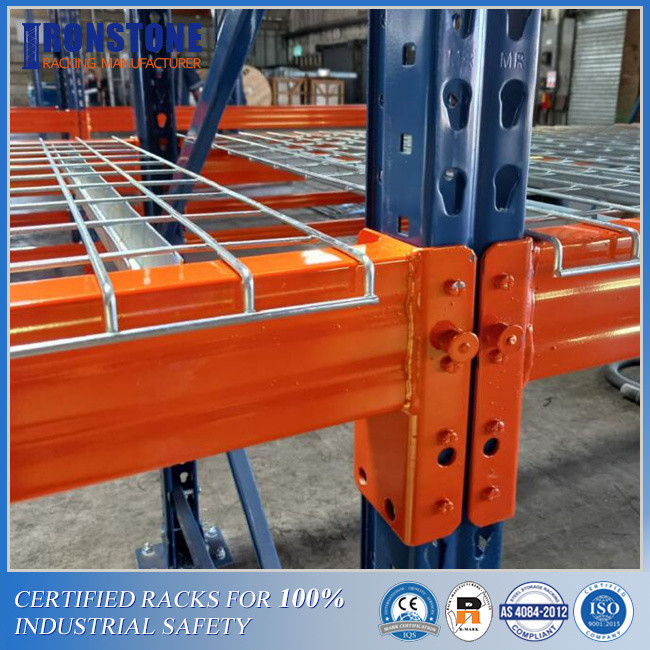

Ironstone still has special teardrop beams with ribs built around the beaming face, which are more durable and stronger.





RMI-Certified American Standard Teardrop Pallet Rack 4







All of our teardrop pallet rack upright frames and beams have been tested by Seizmic Inc. which is a professional steel storage rack testing institution in the U.S. All of our steel is conformed with 60,000 PSI Steel requested by RMI.







           RMI-Certified American Standard Teardrop Pallet Rack 5







Optional Components and Accessories





♦ Pallets Supports





         RMI-Certified American Standard Teardrop Pallet Rack 6







♦ Wire Decks



                              RMI-Certified American Standard Teardrop Pallet Rack 7







♦ Row Spacers





                   RMI-Certified American Standard Teardrop Pallet Rack 8







♦ Column Protectors





                     RMI-Certified American Standard Teardrop Pallet Rack 9







♦ Frame Protectors





               RMI-Certified American Standard Teardrop Pallet Rack 10







♦ Base Plate





            RMI-Certified American Standard Teardrop Pallet Rack 11





Why Choose Ironstone Teardrop Pallet Rack?



Ironstone-Meca Industry provides high-quality teardrop racks for customers which can be compatible with almost all the teardrop racks in the market. Why so many warehouse owners choose our teardrop pallet racking? Why Ironstone teardrop racks are superior than others? Let’s find out together.







► 100% Bolted Connections



The upright frames produced by Ironstone are all bolted which is stronger than welded systems and far more cost-effective to ship. The bolted connection also easy to install and relocate.







► Reinforced Step Beams



The step beams produced by Ironstone for the teardrop pallet rack are strengthened with stiffening ribs which make them more sturdy and durable.







► RMI Certified Teardrop Pallet Rack Quality



Having our steel pallet racks tested at MONASH University and SEISMIC INC in the US, Ironstone gains almost all the standard quality certifications all over the world with g reputation among our customers. Never meeting any quality issues over the past decades owes to our strict quality management and over time rechecking before package and shipping.







► Free Design And Quick Delivery



As a direct manufacturer in storage equipment, Ironstone has mature production lines and rich experience. We can offer you free CAD drawings that are suited to your warehouse and perfectly designed by our professional engineers. Quick delivery is also guaranteed with our large production volume and great shipping management.





      RMI-Certified American Standard Teardrop Pallet Rack 12





Ironstone supplies complete rack system products and services. We combine our superior selection of high-quality products with professional, first-rate service. We can help you select the right options for your particular storage needs and provide additional support to help you install your warehouse racking system.
