High Density Hand-picking Materials Storage Mezzanine Rack

High Density Hand-picking Materials Storage Mezzanine Rack
Features Gallery Product Description Request A Quote
Name: Raised Platforms
Material: High Strength Steel
Color: RAL Code: Blue, Orange, Yellow, Grey, White, Etc.
Usage: General Warehouse Distribution, Logistics, Cold Warehouse Storage, E-Commerce, Manufacturing, Food&Beverage, Retail, 3PL, Automotive, Record Storage
Dimension: H:2~16.5Mts,Depth: 0.6~1.5Mts, Width: 1~3.9Mts, Customizable As Request
Load Capacity: 500kgs~4000kgs/Layer, 4000kgs~30000kgs/Bay
Certification: RMI / AS4084-2012 / CE / ISO9001
Services: Free CAD Design, ODM&OEM, Transportation, Project Installation, Systems Maintenance Etc.
High Light:

RMI Mezzanine Platform


Mezzanine Platform 2m


2m industrial steel mezzanine

Basic Infomation
Place of Origin: China
Certification: RMI, AS4084, ISO9001, CE
Model Number: MR Mode
Payment & Shipping Terms
Packaging Details: Plastic stretch film, corrugated paper, cartons, wooden bars, crates, and metal strips, etc.
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 3000 Tons per month
Product Description

Customized Cost-effective Rack-supported Mezzanine Systems For Industrial Storage





What is Rack-supported Mezzanine?




Rack-supported mezzanine, as the name shows, uses steel pallet racks as the weight support components to the mezzanine flooring offering additional vertical warehouse space without  extra cost for warehouse expansion. The mezzanine flooring space can be designed as platforms for work areas where palletized products can be stored on the racks below and other unpalletized items can be stored upstairs.



As an excellent choice for space saving, pallet rack systems can also be constructed with mezzanine walkways inserted for second-level or third-level product handling.




Advantages of Rack-supported Mezzanine



► Compact storage solution fully use both vertical and horizontal space.



► Cos-saving for warehouse owners without extra expensive warehouse investment.



► Versatile and flexible for facilities with multiple structures and storage choices.



► Easy to be integrated or reconstructed to form a complex storage systems.



► Safer system for both workers and products.





Structure Features of Rack-supported Mezzanine




The structure of a rack-supported mezzanine can be divided into two main parts: rack related parts and mezzanine related parts.




Pallet rack related components Mezzanine related components
upright frames Flooring supported beams
beams flooring
row-spacers stairs
decks for racks handrails




Other safety accessories such as kick plates and wire meshes are optional as customers' personal needs. In some warehouses, loading gates, conveyors and other related equipment may be added for facilitating materials handling efficiency.

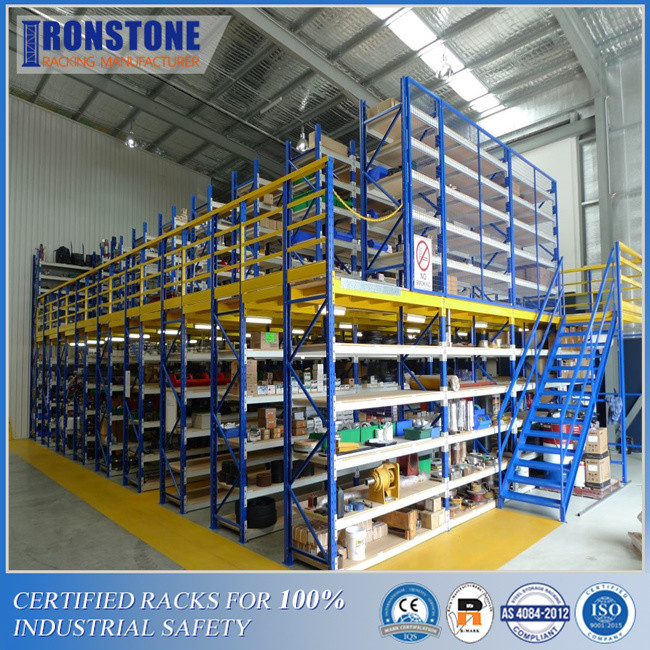

High Density Hand-picking Materials Storage Mezzanine Rack 0




Ironstone Design Cases




Before designing rack-supported mezzanine for our customers, we need to gain some information about the storage requirement and mezzanine details.




Things to consider for pallet rack design Things to consider for mezzanine design
Pallet load dimensions( height*length* width) Required loading capacity
 Pallet load weight Mezzanine dimensions(height*length* width)
Forklift types and modes Mezzanine flooring type( steel, wooden)
Pallet rack accessories Mezzanine accessories




Here's a drawing of rack-supported mezzanine designed by Ironstone

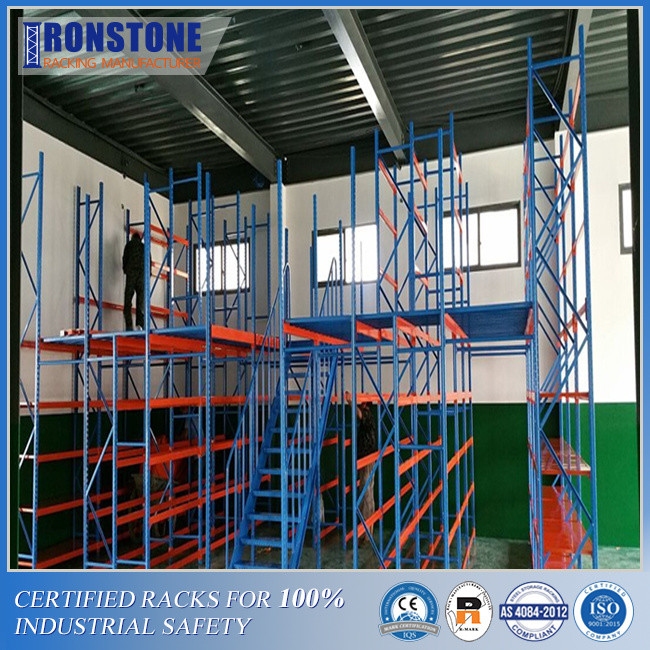

High Density Hand-picking Materials Storage Mezzanine Rack 1

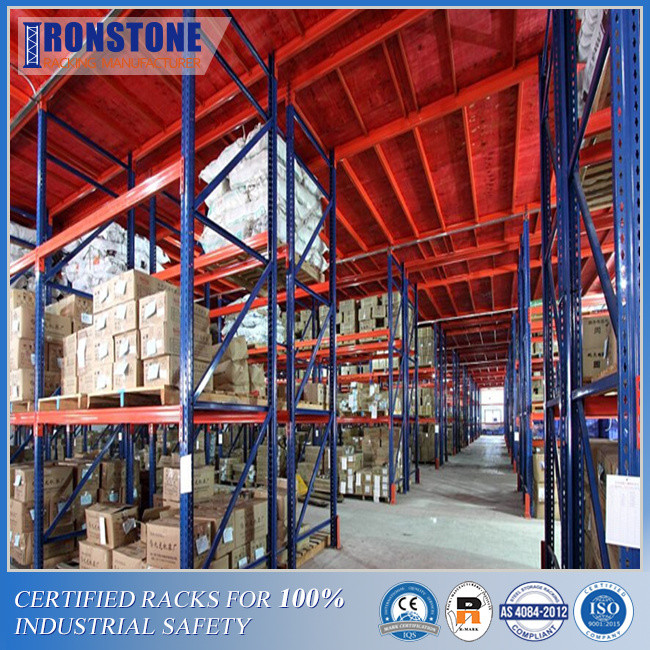

High Density Hand-picking Materials Storage Mezzanine Rack 2
