High-Quality Boltless/Rivet Steel Rack Shelving

High-Quality Boltless/Rivet Steel Rack Shelving
Features Gallery Product Description Request A Quote
Name: Rivet Shelving
Material: High Quality Steel
Color: White, Blue, Gray, Orange
Logo: Customized Logo With Brand Name
Dimension: H:1.5~3.0Mts,Depth: 0.45~1.2Mts, Width: 1~3.9Mts, Customizable As Request
Load Capacity: 200 Kg~1000 Kg Per Layer
Certification: RMI(R-Mark Certification)/ AS4084-2012 / CE / ISO9001
Services: Free CAD Design, ODM&OEM, Transportation, Project Installation, Systems Maintenance Etc.
High Light:

RMI color warehouse picking racks


200 kg per Layer warehouse picking racks


Rivet boltless steel rack

Basic Infomation
Place of Origin: China
Certification: RMI, AS4084, ISO9001, CE
Model Number: LSS Model
Payment & Shipping Terms
Packaging Details: Plastic stretch film, corrugated paper, cartons, wooden bars, crates, and metal strips, etc.
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 3000 Tons per month
Product Description

High-Quality Boltless/Rivet Rack Shelving




Boltless/Rivet shelving is one of the classic models of shelving. Boltless shelves/rivet shelves are assembled using rivets rather than using standard bolts, clips, and fasteners to assemble other similar types of shelves. The rivets are embedded at the end of each beam, firmly locked in the keyhole-shaped groove on the post, creating a solid storage space.



No special tools are required except for holding the shelf in place with a rubber hammer. It is widely used because of its ease of assembly and adaptation to any space and load type (it can bear up to 1,850 pounds per shelf). The distinctive feature of the boltless shelf is the quality of the steel and paint used, ensuring the safety, strength, and durability of the installation. Heavy-duty metal pointed bolt-less shelves come in various sizes and surface treatments for various use in warehouses, offices, shops, or workshops.

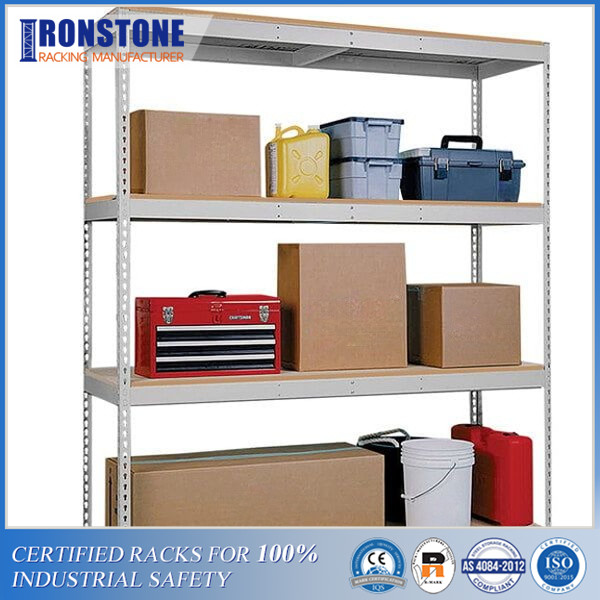

High-Quality Boltless/Rivet Steel Rack Shelving 0




Boltless /Rivet Shelving Specifications Reference



Item Spec (mm) Thickness (mm) Capacity (kg)
Angle post 32*32 1.0-2.0 500-1000
35*35 1.0-2.0 500-1000
38*38 1.0-2.0 500-1000
47*47 1.0-2.0 500-2000
Double rivet beam 50*15 0.8-2.0 100-250
55*15 0.8-2.0 100-250
67*21 0.8-2.0 100-250
Single rivet beam 25*25 1.0-2.0 50-150
Shelf levels 2~12 tiers per shelving unit
Color Gray, White, Black, Blue, Etc.
Finish Epoxy Powder Coated for corrosion prevention
Usage Cargos Storage
Package Plastic stretch film, corrugated paper, Cartons, wooden bars, crates, metal strips, etc.
Certification RMI/AS4084-2012 /CE/ ISO9001
Delivery time 7~25 days according to the order quantity
Assemble & installation Detailed assembly instructions are available


Feature and Advantages of High-Quality Boltless/Rivet Rack Shelving


►Various heights, widths, and depths are available.


►Rapid and Easy Boltless Assembly.


►Affordable and modular manual storage system for small goods.


►Quick and easy to extend and adjust.


►High storage density with minimum lost space.




More Product Details

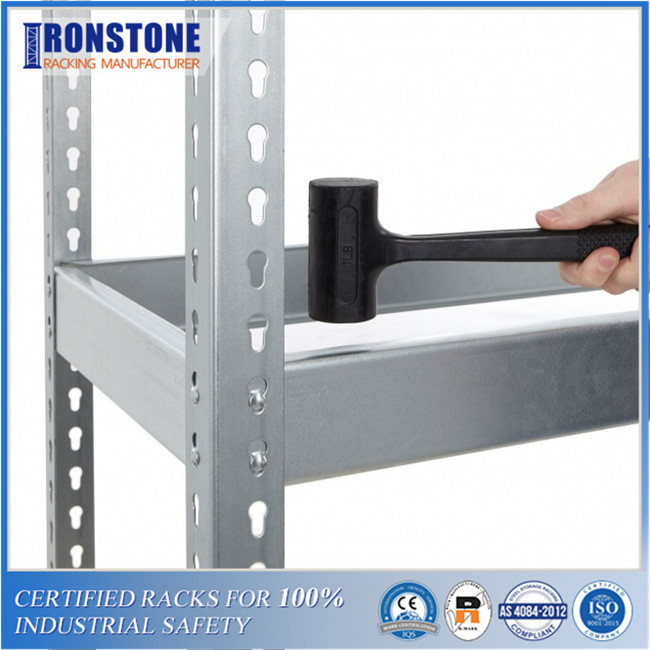

High-Quality Boltless/Rivet Steel Rack Shelving 1




Product Component

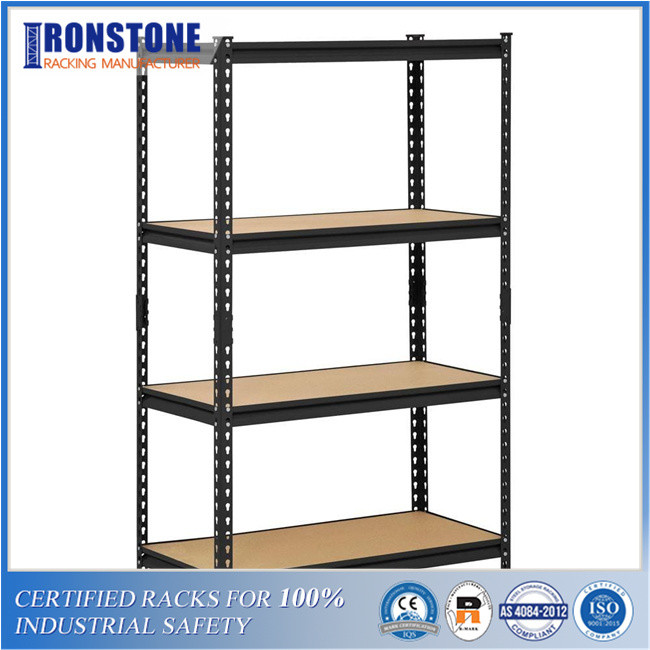

High-Quality Boltless/Rivet Steel Rack Shelving 2



Potential Applications


Ironstone offers a complete line of well-built, long-lasting rivet shelf components in a variety of sizes to fit any purpose, including:



♦Storage of small parts


♦Storage of auto parts


♦Hand picking


♦Archive storage for records


♦Storage in the basement


♦Storage for retail purposes


♦Tire storage and clothing storage are examples of specialty usage




Our Products are Packaged

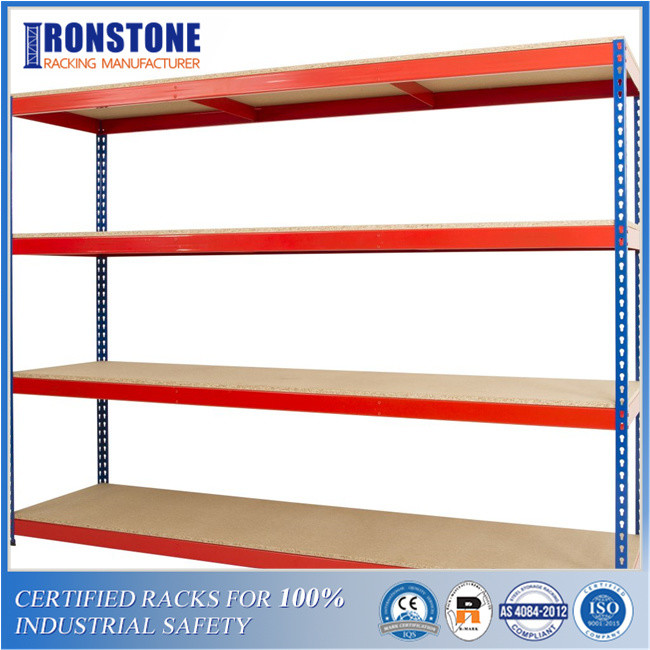

High-Quality Boltless/Rivet Steel Rack Shelving 3






Q1:Does all racks produced by your company?


A1: Yes, we're a direct manufacturer with over 20 years of experience, main products of us include Pallet Racking, Shelving, Radio shuttles, Cantilever, Mezzanines, etc. All products are 100% produced by ourselves.




Q2: Where is your company located?


A2: Our factory is located in Jiangning District, Nanjing, Jiangsu, China, close to Nanjing Port, convenient for delivery 90,000 sqm production plant, which enables a strong production capacity and stable quality.




Q3: What certification do your products pass?


A3: We're ISO9001 certificated company. Rack systems are strictly designed and produced based on CE and AS4084:2012 standards for storage racks, and comply with FEM and RMI standards.




Q4 How long of your warranty period?


A4: We afford a 10-year warranty and lifetime insurance services of all racking products. Any quality issues caused by the quality of products, we'll provide free parts for replacement.




Q5: Are you able to provide installation service?


A5: We have a mature installation team with rich project experience. For some complicated cases, our engineer could come to the project site and help clients with installation work. Normally, we can offer solutions for your problem through email, mob, and video calls within 24 hours.




Q6:Your shelf production process?


A6:1. Rack production process

Raw material-punching-cold rolling forming-length, flat head-welding-calibration-surface spraying-packaging-finished product


2. Surface treatment process


(1) Surface treatment process

Black billet (remove surface dirt)→pickling→water washing→surface adjustment→water washing→phosphating→high pressure water washing


(2) Surface spraying

Spraying process: pickling→phosphating→drying→spraying→constant temperature curing


(3) Selection of powder: the surface coating adopts the epoxy resin powder electrostatic spraying process produced by the ISO9000 quality certification enterprise.


(4) Coating thickness: the coating thickness is 60-80 microns, and the coating film performance meets the industry standard.


(5) Coating surface: smooth, smooth, and consistent in color, the adhesion of electrostatic powder spraying meets the requirements of level 0 in GB/T6739-1996 standard.


(6) Coating hardness: hardness (abrasion resistance) is more than 100 times that of ordinary nitro paint, and meets the 2H requirement of GB6739-1996 standard.




Q7:Do you provide the samples?


A7:We can provide the product samples for you to test. Samples can be transported by sea, land, and air.






A8:We can provide OEM ODM service, we know that brand owners care about the quality of products, so our products from the choice of materials, and product style design will be strictly in accordance with your product design drawing design.


At the same time, we have a professional research and development team. If you need a product with special functions and requirements, you can also communicate your ideas with us.
