Warehouse Automatic Pick Module For High Efficiency Storage

USD $0.85/KG
Warehouse Automatic Pick Module For High Efficiency Storage
Features Gallery Product Description Request A Quote
Name: Pick Module Racking
Dimension: Customized Layers And Sizes
Components: Racking System, Conveyors, Platforms
Color: Customized Color With RAL Color System
Certifications: RMI / AS4084-2012 / CE / ISO9001
Safety Accessories: Wire Decks, Column Protectors, Pallet Supports, Etc.
Products Package: Steel Strip, Stretch Film, Corrugated Paper, Bubble Film, Plywood Pallets
Applications: Distribution Centers, Large Warehouses, Food Industry
High Light:

Warehouse Automatic Pick Module


RMI Warehouse Automatic Pick Module

Basic Infomation
Place of Origin: Jiangsu, China
Brand Name: Ironstone
Certification: RMI, AS4084, ISO9001, CE
Model Number: WPS
Payment & Shipping Terms
Packaging Details: Plastic stretch film, Corrugated paper, Cartons, Plywood Pallet, Bubble film, and Metal strips, etc.
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 3000 Tons per month
Product Description

Warehouse Automatic Pick Module For High-Efficiency Storage



To maximize warehouse space usage and improve the effectiveness of order picking, our pick modules strategically combine storage rack, shelving and conveyor systems. The Ironstone team has abundant experience in the design and installation of such modules.


We've built everything ranging from straightforward pick tunnels to intricate, multi-level systems, combining handpicking and automation for the best outcomes. Every pick module is tailored to the facility and corporate objectives.

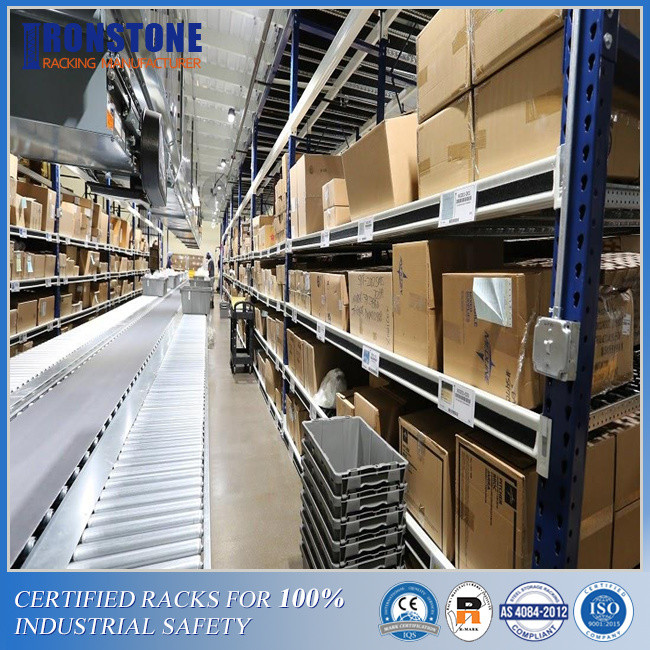

       Warehouse Automatic Pick Module For High Efficiency Storage 0



Main Components of Warehouse Pick Modules


Components Working method Functions
Selective pallet rack Basic storage units Cost-saving with adjustability
Push back pallet rack Large palletized loads High-density storage with efficient retrieval
Carton flow pallet rack Small items in cartons and boxes Fast turnover with many picking faces
Mezzanine rack Structural support and Storage Maximized space utilization
Shelving system Basic storage units for various products Flexible and easy accessibility
Pallet flow rack system High throughput items storage and retrieval Gravity-driven and energy-saving
Conveyors Product transport and delivery Time-saving and labor-saving



To store products in a way that isolates each pick slot while allowing storage for several items per slot, the majority of pick modules employ a combination of gravity flow rack and shelf. Order pickers take products from ergonomically placed levels and load them into mobile carts with totes for batch processing or conveyors for packing.



Popular Pick Module Programs



• E-commerce















Beer, wine, spirits



Pick Module Reduced



The number of SKUs, volume and pick rate targets all influence the storage types and configurations in your pick module. Your inventory specifications will also be important since larger, heavier products should be placed within easy reach to reduce worker strain.

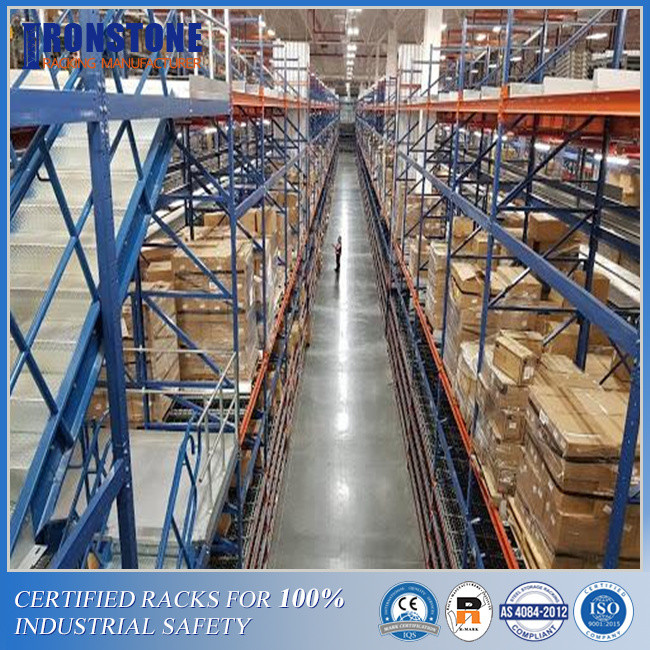

                                         Warehouse Automatic Pick Module For High Efficiency Storage 1

                                                           3-TIER MEZZANINE PICK MODULE

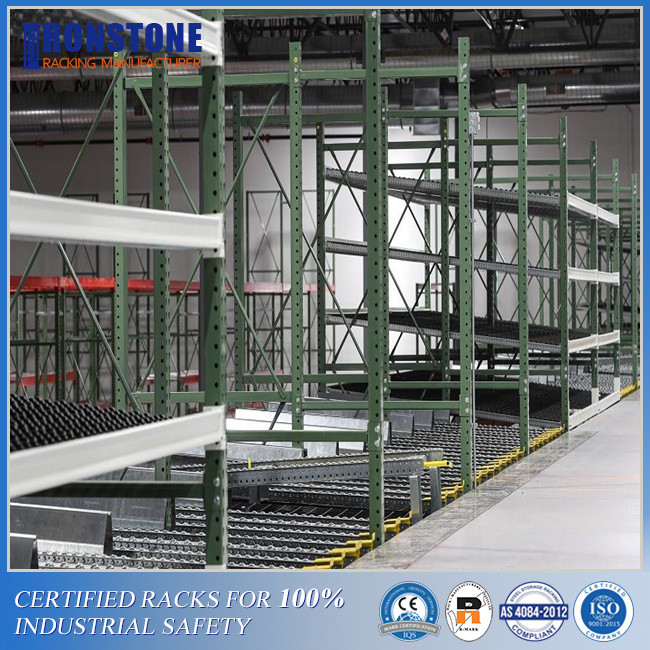

                                        Warehouse Automatic Pick Module For High Efficiency Storage 2

                                                                  AERIAL VIEW - 3RD-TIER TOP LEFT



Building a Pick Module



Gravity flow storage facilities, like carton flow or pallet flow, are commonly seen in pick modules. Inventory is moved dynamically from the rear load aisle to the pick aisle using wheels and rollers. Inventory moves forward as workers pick goods, automatically replenishing and keeping your team picking without waiting. Reserve storage is frequently situated close by, either in lanes that are adjacent to the pick area or in storage levels above it. This keeps vehicles out of the way and increases worker productivity and safety.


For inventories with a medium turn, carton flow works the best. More affordable shelving can be used to store slower-moving items. There are many shelving options available, such as configurable industrial shelving and hanging systems, which provide ample SKU storage in a compact design.

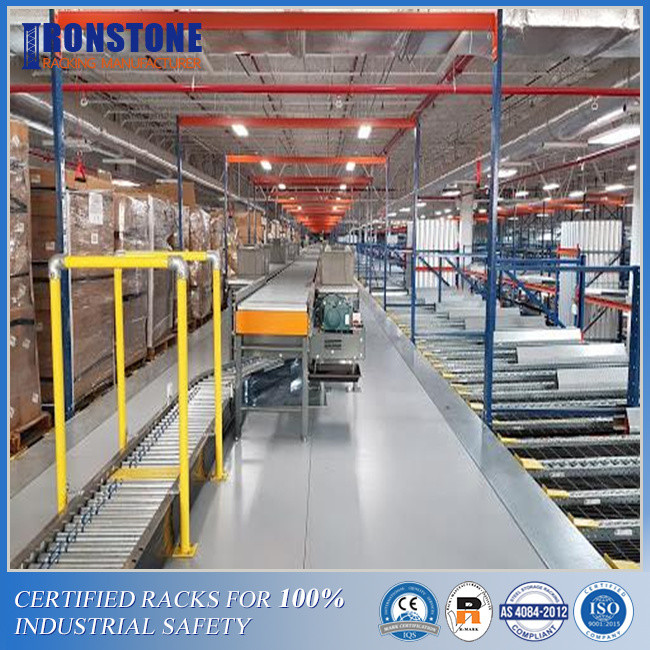

                                                                    Warehouse Automatic Pick Module For High Efficiency Storage 3



A well-designed system transfers the goods from in-processing to order fulfillment by combining technology with conveyor and sortation systems. Full pallets are broken down into cartons and pieces when they are moved from push-back, pallet flow, or pallet rack reserve storage. After that, inventory is placed in pick locations that have been specially created to complete the order.


The Ironstone team has a great deal of experience with all the components of a pick module, and we will work with you to figure out solutions that best meet your needs to build the most affordable order-picking process for your company.



What can you expect from the Ironstone Pick Module?


♦ Compared to the selected rack, improved space usage can save up to 50%.


♦ Decreased labor costs and reduced travel time boost pick rates with simple access and streamlined SKUs.



♦ Increased pick points to store more in less space.



♦ Automation that can be configured to increase pick rates and accuracy.



Ironstone is a full-service integration of material handling companies that collaborate seamlessly to meet the demands of our clients at any stage of the project, from advising, planning, automated engineering services and installation to professional rack inspection and maintenance.
