Great Modular Design Metal Longspan Shelving WIth Highly Portable and Easily Extensible

USD $0.85/KG
Great Modular Design Metal Longspan Shelving WIth Highly Portable and Easily Extensible
Features Gallery Product Description Request A Quote
Certification: RMI(R-Mark Certification)/ AS4084-2012 / CE / ISO9001
Name: Longspan Shelving
Material: High Quality Steel
Color: White, Blue, Gray, Orange
Logo: Customized Logo With Brand Name
Dimension: H:1.5~3.0Mts,Depth: 0.45~1.2Mts, Width: 1~3.9Mts, Customizable As Request
Load Capacity: 200 Kg~1000 Kg Per Layer
Services: Free CAD Design, ODM&OEM, Transportation, Project Installation, Systems Maintenance Etc.
High Light:

5m Warehouse Decking


5m 5Heavy Duty Shelving Rack


Warehouse Wide Span Shelving

Basic Infomation
Place of Origin: China
Model Number: LSS Model
Payment & Shipping Terms
Packaging Details: Plastic stretch film, corrugated paper, cartons, wooden bars, crates, and metal strips, etc.
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 3000 Tons per month
Product Description

Easy- install Metal Longspan Shelving for Industrial Warehouse Storage Solution



A very adaptable storage option for warehouses, office buildings, archives, retail outlets, and depositories is longspan racking, often known as longspan shelving. This kind of storage, which is essentially a condensed version of pallet racking, can do many of the same tasks for a lower price.


Longspan racks are probably a wise investment for you if you have limited room and often store your products individually or in boxes. For a great modular design, learn more about their traits, benefits, and downsides below.

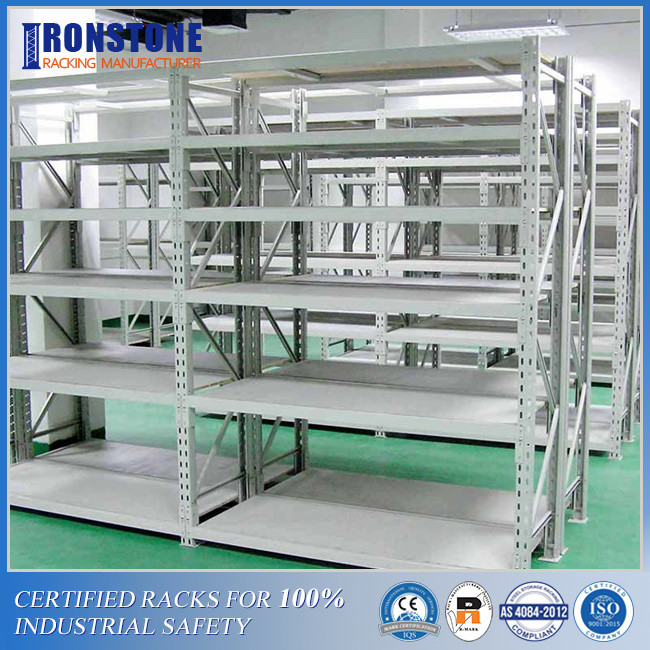

                            Great Modular Design Metal Longspan Shelving WIth Highly Portable and Easily Extensible 0


Products Specifications


Name Wide span Shelving Material Steel
Shelf levels 2~12 tiers per shelving unit Color Gray, White, Black, Blue, Etc.
Height 1500mm~5000mm Weight Capacity 150~800kg per shelf
Width 1000mm~2700mm Depth 400mm~1200mm
Finish Epoxy Powder Coated for corrosion prevention
Usage Cargos Storage
Package Plastic stretch film, corrugated paper, Cartons, wooden bars, crates, and metal strips, etc.
Certification RMI/AS4084-2012 /CE/ ISO9001
Delivery time 7~25 days according to the order quantity
Assemble & installation Detailed assembly instructions are available



Basic Characteristics of Longspan Shelving


A long span shelf system is made up of three basic parts: uprights, beams, and internal shelves. At the extremities of each shelf unit, uprights—vertical frameworks that are frequently constructed of metal—are positioned for support. To create many bays of different lengths and depths, horizontal beams are joined to uprights. The storage area itself is created by internal shelves, which are panels made of metal, wood, or plastic that sit on the horizontal beams.



In that it may be set up to support the majority of applications and everything from light- to heavy-duty loads, long-span racking is very adaptable. Basic long span shelf units can range in height from 2 to 5 meters, although more intricate systems with extra floors, hallways, and stairs are also popular. Depending on the products you plan to keep, each shelf can extend up to 2.5m in breadth and support up to 1000kg (or 2200lb) of weight.

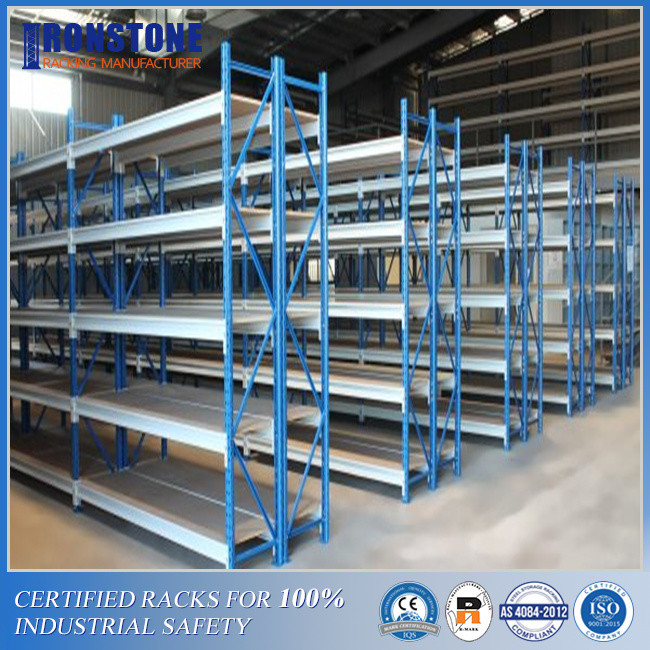

                Great Modular Design Metal Longspan Shelving WIth Highly Portable and Easily Extensible 1



A manually operated storage system is long-span racking. Products are loaded and unloaded manually by employees rather than using forklifts or other vehicles. Furthermore, unlike with pallet racking, products aren't kept in pallets but rather singly or in boxes. By utilizing the large, continuous surfaces of long-span racks, anything from minute pieces to bulky and strangely shaped objects can be deposited.




How to Install Longspan Shelving?

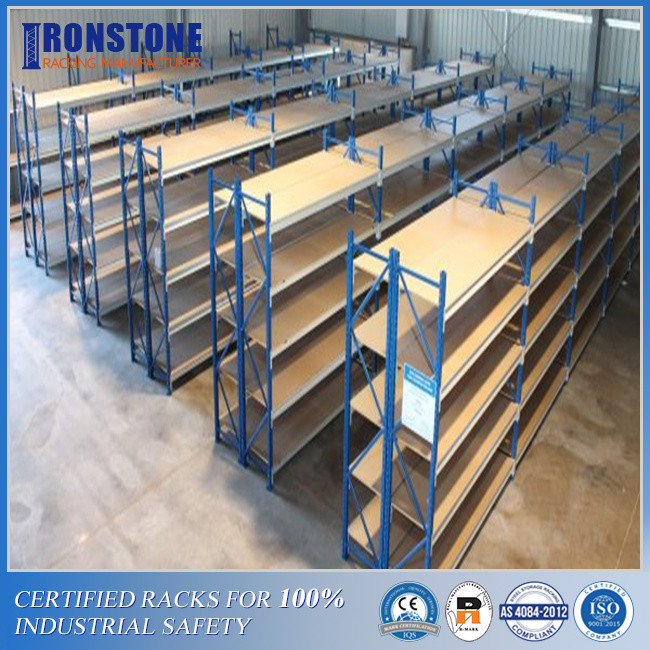

Great Modular Design Metal Longspan Shelving WIth Highly Portable and Easily Extensible 2



01 The fact that the majority of units may be put without the help or oversight of experts is another crucial feature of long span shelving. Although two individuals would probably be better suited for the job, the installation process is simple and quick and may even be completed by one person.



02 Divide the uprights, shelves, and two sets of beams into different groups before installing a fundamental long-span rack unit. The first beam should be inserted into the outside parts of both frames when the uprights are in a vertical position (usually designed with an inner lip). After slotting each beam, insert and fit each shelf. The long-span shelving unit is finished when every shelf is inserted into its proper socket.



03 Longspan Racks may typically be installed without the use of bolts or any other supplementary hardware. However, if additional stability is required, particularly for shelves intended for heavy-duty weights, one can bolt the shelves down.





Longspan Shelving: Uses and Advantages



♦ Advantage Cost


Longspan Shelving is a scaled-down version of Selective Pallet Racking. This is a more cheaper option with many of the same advantages if you plan to keep modest to medium volumes of stock.




♦ Easiest Way to Install


Long-span racks are simple and quick to assemble in contrast to pallet racking. Most longspan racking units can be installed without the aid of a professional or any additional hardware beyond what the manufacturer already supplies.




♦ Highly Portable and Easily Extensible


You can acquire more modules and accessories that will fit with the existing units if you ever need more storage capacity. Longspan shelves can also be swiftly disassembled and moved to another location as needed.

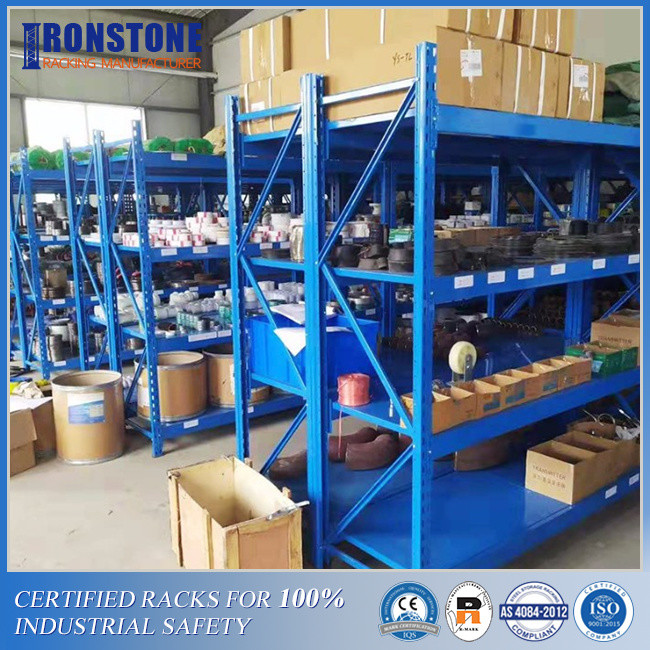

           Great Modular Design Metal Longspan Shelving WIth Highly Portable and Easily Extensible 3




♦ Flexible Across Multiple Applications


Longspan Racks are useful not just in warehouses but also in offices, shops, archives, and many other places. They are adaptable to a variety of applications and can support both light and big weights. Since shelves can be moved at any time, they are also conveniently adaptable to products of various sizes.




♦ System with Full Selection and Good Visibility


You or your staff can have immediate access to all of your merchandise with long-span shelving. Additionally, manual loading and unloading as well as access to upper floors through stairs and hallways ensure that your personnel always have a clear view of all objects.







Longspan Racks' flexibility and versatility are thus a major benefit. This sort of storage is appropriate for use in a variety of industries, including the automotive sector, hardware and industrial supplies, merchandising and supermarkets, retailing, medicines, and more, so long as you can store and remove your goods by hand.



Longspan Shelves are built and shipped by Ironstone for customers all over the world. We have gained invaluable knowledge over the years of our business, which has helped us to better understand our customers' needs and how we can meet them. Contact Ironstone right away if you're unsure about long span racking as a storage solution or if you just want to learn more about the features available to you. We make our technology and experience available to you.



                Great Modular Design Metal Longspan Shelving WIth Highly Portable and Easily Extensible 4






Q1:Does all racks produced by your company?


A1: Yes, we're a direct manufacturer with over 20 years of experience, main products of us include Pallet Racking, Shelving, Radio shuttles, Cantilever, Mezzanines, etc. All products are 100% produced by ourselves.




Q2: Where is your company located?


A2: Our factory is located in Jiangning District, Nanjing, Jiangsu, China, close to Nanjing Port, convenient for delivery 90,000 sqm production plant, which enables a strong production capacity and stable quality.




Q3: What certification do your products pass?


A3: We're ISO9001 certificated company. Rack systems are strictly designed and produced based on CE and AS4084:2012 standards for storage racks, and comply with FEM and RMI standards.




Q4 How long of your warranty period?


A4: We afford 10-year warranty and lifetime insurance services of all racking products. For any quality issues caused by the quality of products, we'll provide free parts for replacement.




Q5: Are you able to provide installation service?


A5: We have mature installation team with rich project experience. For some complicated cases, our engineer could come to the project site and help clients with installation work. Normally, we can offer solutions for your problem through email, mob, and video calls within 24 hours.




Q6:Do you provide the samples?


A6:We can provide the product samples for you to test. Samples can be transported by sea, land, and air.






A7:We can provide OEM ODM service, we know that brand owners care about the quality of products, so our products from the choice of materials, and product style design will be strictly in accordance with your product design drawing design. At the same time, we have a professional research and development team. If you need a product with special functions and requirements, you can also communicate your ideas with us.
