ASRS Crane Racking Smart Storage System For Warehouse Operating All Year Round

USD $0.85/KG
ASRS Crane Racking Smart Storage System For Warehouse Operating All Year Round
Features Gallery Product Description Request A Quote
Features: High End Design With Computer And Intelligent Machine
Name: ASRS Crane Racking System
Color: Customized RAL Colors At Your Option
Main Parts: High Bay Racking System, Stack Cranes, Computers
Application: High Volume Inventory Storage Warehouse
Stock Rotation: Last-in/First-out, First-in/First-out
Products Package: Steel Strip, Stretch Film, Corrugated Paper, Bubble Film, Plywood Pallets
Services: Free CAD Design, ODM&OEM, Transportation, Project Installation, Systems Maintenance Etc.
High Light:

ASRS Crane Racking System


Warehouse ASRS Crane Racking System


ODM ASRS Racking System

Basic Infomation
Place of Origin: Jiangsu, China
Brand Name: Ironstone
Certification: RMI, AS4084, ISO9001, CE
Model Number: HD-CRS
Payment & Shipping Terms
Packaging Details: Plastic stretch film, Corrugated paper, Cartons, Plywood Pallet, Bubble film, and Metal strips, etc.
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 3000 Tons per month
Product Description

ASRS Crane Racking System Smart Storage for Warehouse




The ideal system for managing boxes for picking is the automated storage retrieval system, often known as ASRS or AS/RS. The "product to man" principle is used in the ASRS system. The pinnacle of high-density, high-efficiency storage systems is the automatic pick system. A central aisle divides two rows of racks in the mini-load automated warehouse for boxes. The stacker crane moves along the center aisle and is made to automatically pick up palletized items, plastic totes, crates, or trays. Conveyors make up the picking and handling area, which is situated either at the side or one end of the racking.



The load removed from the rack is deposited by the stacker crane of the automated storage retrieval system. Once the operator has completed the operation at hand, the box is returned to the stacker crane, which then sets it back into the racking. The operator then receives the box via the conveyors.

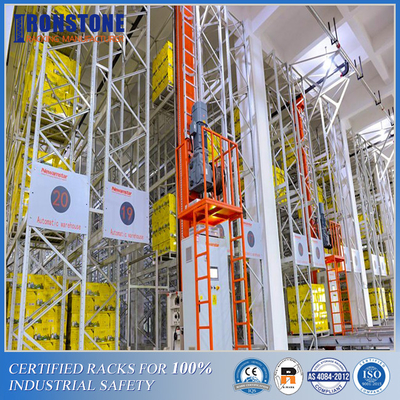

ASRS Crane Racking Smart Storage System For Warehouse Operating All Year Round 0



An inventory is maintained in real-time and the position of all the materials in the warehouse is registered by the management software package that oversees the entire automated storage retrieval system. The ASRS system may be implemented into any production or storage process because of its outstanding adaptability.



More details about ASRS


Product High-end Automatic Storage and Retrieval Racking System
Color Custom colors follow the RAL system Material Steel
Usage Warehouse storage and retrieval Certification RMI/CE/AS4084-2012
Size Custom size according to warehouse layout Structure Integrated comprehensive structure
Height Customized ranged from1350mm to 20000mm Capacity Customized up to 21000kg/bay
Width Customized ranged from 300mm to 2000mm Thickness Customized ranged from1.5mm to 3.0mm,
Feature Automated picking and storing Package

Customers' request

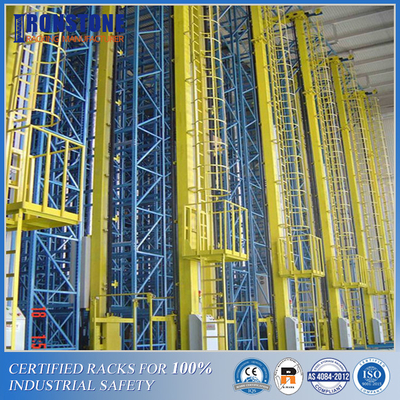

                         ASRS Crane Racking Smart Storage System For Warehouse Operating All Year Round 1




Four Main Components



♦ Automated Stacker Crane with Racking - This equipment locates and removes boxes from the rack system, transports them to the P&D station of the warehouse, and deposits them there. Stacker cranes can move in two different directions: longitudinally (down the aisle while being guided by a rail) and vertically (while positioning the boxes at various levels and/or depths of the rack).



♦ The P&D Station (Picking & Delivery) - The P&D station, also known as the picking and handling area, is situated at the front of the racking and makes the mechanical movements necessary to bring the boxes to the operator or the stacker crane so that the latter can pick them up and return them to the warehouse. It is composed of several conveyors that interface with the stacker crane and the workstations, accelerating the entrance and exit of goods from the system. Rollers or belts are the two types of transportation.


Computerized Management System - The management system directs all storage activities, maximizing both the use of warehouse time and space. It is the ideal tool for integrating the client's warehouse with their ERP due to its deployment and degree of connectivity. The management of procedures and quick access to all the information is made possible by its software.


Load Unit—Stocking plastic totes and bins of both standard and non-standard sizes are possible in mini-load warehouses. You might also use cardboard or metal boxes. The best load unit depends on the goods being kept.




Automated Storage Retrieval System Benefits Include:



  • ► Automation of your items' entrance and exit activities
  • ► Space savings
  • ► Errors resulting from manual warehouse management
  • ► Controlling and updating inventory management
  • ► Operating 365 days a year
  • ► Increasing client service capacity
  • ► Quick payback of investment

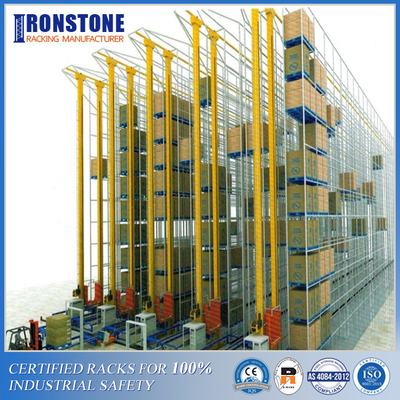

  • ASRS Crane Racking Smart Storage System For Warehouse Operating All Year Round 2


Operation Theory



The ASRS system can be constructed with either a single-deep box on each side of the aisle or two boxes on each side of the aisle (double deep). A single box location in the racking is provided by a single depth. It allows for the fastest possible entering and extraction of boxes. Single deep storage is the best option for businesses that value system performance and flexibility over total storage capacity.


Since all the boxes have direct access, they are typically utilized when the products being stored are all from the same category and are intended for the same amount of consumption. Typically, there is only one box per reference or SKU.  Two box depths are available per location in double-deep storage. It is perfect for businesses that need to strike a balance between handling speed and storage capacity. You can double the amount of storage you have by using the two-deep option.



Why Choose Ironstone ASRS Racking System?


Our ASRS system has a wide range of primary advantages. Maximum accuracy and safety are provided, along with rapid execution, organizational enhancements, a contemporary programming design, and adaptability to your demands. The automatic storage and retrieval of boxes using our ASRS system is the easiest and most common method available.


In a single package, it combines the rack system, the machine, the P&D station, and the warehouse administration software. It is created using the plug-and-play principle. This is a standardized set that provides the features and capabilities needed in the majority of these types of warehouses.




Factory Production

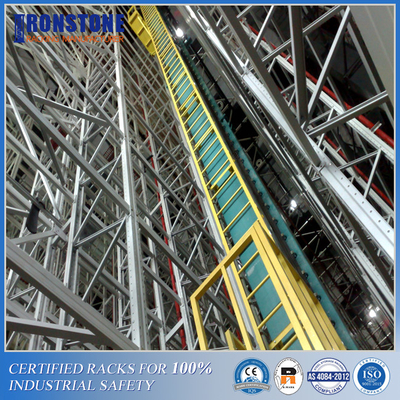

ASRS Crane Racking Smart Storage System For Warehouse Operating All Year Round 3
