Powder Coated Durable Structure Long Span Shelving With High Applicability

Powder Coated  Durable Structure Long Span Shelving With High Applicability
Features Gallery Product Description Request A Quote
Name: Pallet Shelving
Material: High Quality Steel
Color: White, Blue, Gray, Orange
Logo: Customized Logo With Brand Name
Dimension: H:1.5~3.0Mts,Depth: 0.45~1.2Mts, Width: 1~3.9Mts, Customizable As Request
Load Capacity: 200 Kg~1000 Kg Per Layer
Certification: RMI(R-Mark Certification)/ AS4084-2012 / CE / ISO9001
Services: Free CAD Design, ODM&OEM, Transportation, Project Installation, Systems Maintenance Etc.
High Light:

Anti Rust Structure Long Span Shelving


Powder Coated Long Span Shelving


1000kg/Layer Longspan Shelving Rack

Basic Infomation
Place of Origin: China
Certification: RMI, AS4084, ISO9001, CE
Model Number: LSS Model
Payment & Shipping Terms
Packaging Details: Plastic stretch film, corrugated paper, cartons, wooden bars, crates, and metal strips, etc.
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 3000 Tons per month
Product Description

Powder Coated Anti-Rust Durable Structure Long Span Shelving With Easy Assembly


Storage shelving, heavy duty shelving, warehouse shelving, and many more names are also used to describe long span shelving. By definition, a long span spans a wide area. It describes shelving systems that are very long or have the capacity to be very long in the storage sector. They are often made of steel, are sturdy, and can support large loads.

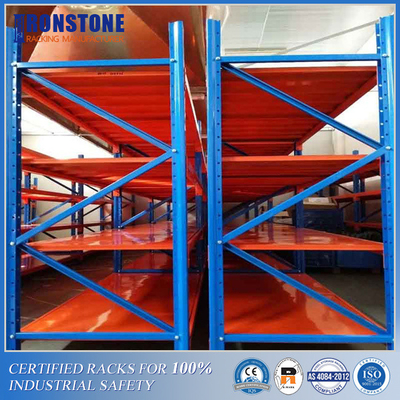

                  Powder Coated  Durable Structure Long Span Shelving With High Applicability 0



The Longspan Shelving system offers a system that moves and evolves with you by making it simple to change storage heights and configurations as your needs change.Using different frame and beam diameters, it is very easy to adapt the system to your precise requirements. Medium- and Longspan bays can be combined in the same rack, and a bolt-free, lock-in system ensures support beams remain in position. Longspan frames and beams are powder-coated and anti-rust.



Perfect for a storage solution - Long Span Racking System



►Strong And Durability: Long Span Shelving Racking System is light in weight yet very strong and can store medium to heavy-weight products straightforwardly. Quality large-span shelving is often made of powder-coated steel for strength and durability. This makes it strong, easy to clean and maintain, and resistant to wear and tear.



►Highly Adjustable and Flexibility:Thanks to their flexibility, Long Span Rack or Storage Racking System can be adjusted to modern stores and warehouses.The number and height of shelves can also be adjusted to the size and weight of the goods stored. In addition, the open nature of the shelves allows for easy access from both sides.



►Easy to Assemble and Disassemble: Long span racks are easy to assemble by one or more people and also easy to disassemble and transport to new locations. This is possible because modern long-span shelving uses "boltless" components.



►Compatible With Different Equipment: Due to their superior finish and outstanding design, this Long Span Racking System and Long Span Storage Shelves can work with various storage units/systems. You can easily integrate them into your facility.






Name Long-span shelving Material High quality steel
Shelf levels 2~12 tiers per shelving unit Color Customized
Height Customized
Weight Capacity 150~800kg per shelf
Length Customized
Depth Customized
Finish Epoxy Powder Coated Corrosion Prevention
Usage Cargos/Boxes/Irregular shapes/Non-palletized product Storage
Package Plastic stretch film, corrugated paper, cartons, wooden bars, crates, and metal strips, etc.
Certification RMI/AS4084-2012 /CE/ ISO9001
Delivery time 7~25 days according to order quantity
Assemble & installation Easy assembled with detailed instruction




Long span shelving best suited for


Long-span shelving is designed for long-term storage of items that do not require the robustness of pallet racking to withstand very heavy loads and mechanical handling. It is best suited for storing a variety of items of:



- Small to medium sizes and weights



- Bulky, fragile or irregularly shaped



- Long and wide



- Can be placed on shelves and unloaded by hand

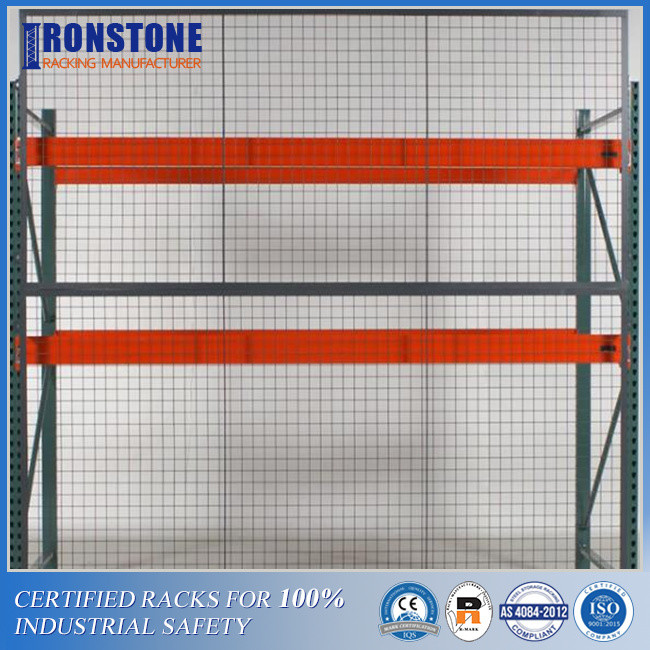

                       Powder Coated  Durable Structure Long Span Shelving With High Applicability 1



Such as garages and sheds for storing household items, sports equipment, tools and equipment,files and archives.




Assembling Longspan Shelving



Longspan shelving is simple to assemble and can be completed in a reasonable amount of time by two persons.



1. Start by opening all of your boxes, then classify the uprights, beams, and shelves into categories.



2. Make two groups of four out of the beams, one to your right and the other to your left. When you attach them to the uprights later, you will need these close by.



3. Place the vertical uprights in a standing position, facing one another, and place the beams at arm's length.(If you're by yourself, you can hold one of the uprights up using a wall.)



4. Put the beam onto the outer area of the upright while holding it with one hand, then ask your partner to put the other end of the beam onto the other upright.



5.The identical procedure should be repeated with the second beam on the other side. This will stabilize the shelving unit and add one shelf space. For each additional beam, repeat the procedure.



6.The shelves can be inserted after the beams are put in place.The shelf unit has the option of being bolted down for added security.



The end of that. You just finished a single bay shelving unit.

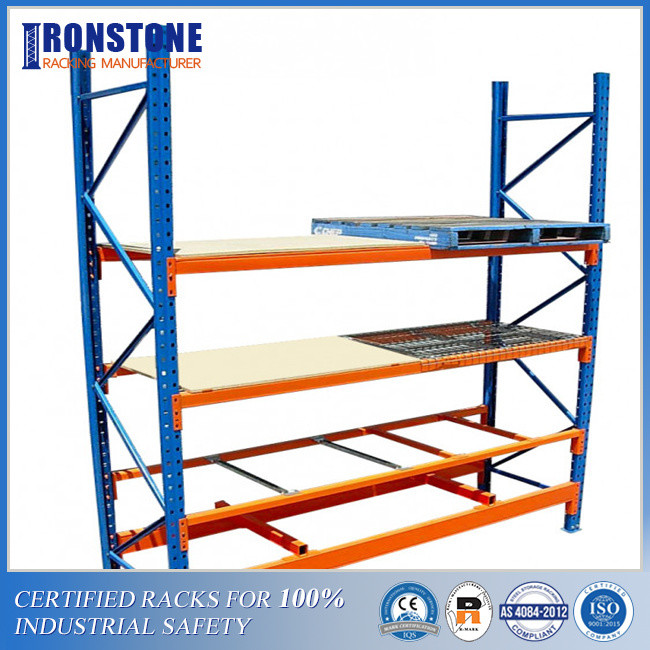

              Powder Coated  Durable Structure Long Span Shelving With High Applicability 2






(1) Q: What is your minimum starting order?



A: You just need to purchase one item and we can ship it to you.




(2) Q: How to buy it?



A: We can email us directly and we can contact you by mail.




(3) Q: Are you a factory or a trader?



A: We are 100 percent factories.




(4) Q: What advantages do you have with your peers?



A: 1. We are the factory direct sales, affordable prices, product quality is guaranteed.



2. We have a professional technical research and development team, and we have obtained a number of product patent certification in the industry.



3. We are enterprises and key enterprises supported by the Chinese government to strictly control the quality of our product.



4. We have a perfect production line, one product by one production line. Ensure that your product is quality completed on time.



5. We have Preferential prices.Our factory is located closely to steel raw material supplier as well as very closed to sea shipment loading part,this will make us save a lot of inland shipment fee.Meanwhile,your order would be also delivery very fast.




(5) Q: Do you provide the samples?



A: We can provide product samples for you to test. Samples can be transported by sea, land and air.




(6) Q: What is the delivery time?



A: It usually takes 25 to 30 days. But the exact delivery time varies for different order volumes.




(7) Q: Do your products have a shelf life?



A: Our product quality is guaranteed for 3 years. If you have any problems within 3 years, you can return or replace them through negotiation.
