CAD Designed High Throughput Warehouse Pick Modules

CAD Designed High Throughput Warehouse Pick Modules
Features Gallery Product Description Request A Quote
Name: Warehouse Pick Modules
Material Type: High Strengh Steel-Q355/Amercian Standrad Steel
Color: RAL Code: Blue, Green, Orange, Yellow, Grey, Galvanization, Etc.
Usage Range: General Warehouse Distribution, Logistics, Cold Warehouse Storage, E-Commerce, Manufacturing, Food&Beverage, Retail, 3PL, Automotive, Record Storage
Certifications: RMI / AS4084-2012 / CE / ISO9001
Safety Accessories: Wire Decks, Column Protectors, Pallet Supports, Etc.
Products Package: Steel Strip, Stretch Film, Corrugated Paper, Bubble Film, Plywood Pallets
Services: Free CAD Design, ODM&OEM, Transportation, Project Installation, Systems Maintenance Etc.
Components: Pallet Rack, Work Platform, Carton Flow Rack, Push Back Pallet Rack
Applications: Distribution Centers, Large Warehouses, Food Industry
High Light:

Cad Designed Warehouse Pick Modules


Warehouse Pick Modules Q355


Q355 Pick Module Design

Basic Infomation
Place of Origin: Jiangsu, China
Brand Name: Ironstone
Certification: RMI, AS4084, ISO9001, CE
Model Number: WPS
Payment & Shipping Terms
Packaging Details: Plastic stretch film, Corrugated paper, Cartons, Plywood Pallet, Bubble film, and Metal strips, etc.
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 3000 Tons per month
Product Description

Customized CAD Designed Versatile Warehouse Pick Modules With High Throughput





What is A Pick Module?



A Pick Module is engineered by integrating storage racks(carton flow rack, pallet rack, push back rack, mezzanine rack), shelves and conveyors to optimize warehouse utilization and more importantly maximize the order picking efficiency.



To realize the goal of accurate picking and fast product replenishment, pick modules combine hand-picking and automated picking together into multiple-level storage systems for full and split case picking in distribution centers.

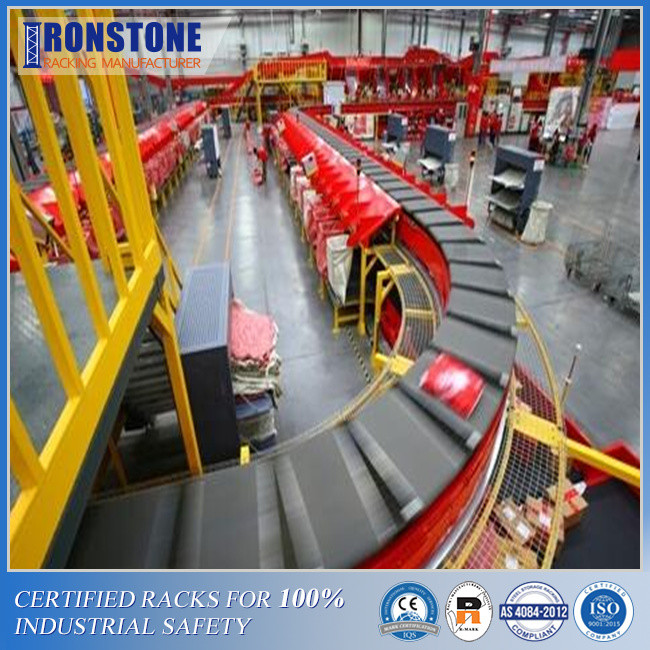

CAD Designed High Throughput Warehouse Pick Modules 0




What's the Structure Feature of A Pick Module?




Warehouse pick modules are comprehensive projects where you can find a number types of racks. The typical structure includes the following rack components:



♦ Selective pallet rack



♦ Push back pallet rack



♦ Carton flow pallet rack



♦ Mezzanine rack



♦ Shelving system



♦ Pallet flow rack system



♦ Conveyors



♦ Other accessories



This integrated system can be engineered with several levels, using mezzanines as the foundation, cooperate with some slower or faster moving components for product reserving and picking.




Here's the Functions and Features of Some Main Components:



Components Functions Features
Selective pallet rack Basic storage units Cost-saving with adjustability
Push back pallet rack Large palletized loads High-density storage with efficient retrieval
Carton flow pallet rack Small items in cartons and boxes Fast turnove with many picking faces

Mezzanine rack

Structural support and Storage Maximized space utilization
 Shelving system Basic storage units for various products Felexible and easy accessibility
Pallet flow rack system High throughput items storage and retrieval Gravity-driven and energy-saving
Conveyors Product transport and delivery Time-saving and labor-saving




Why Choose Pick Modules?



► Consolidate product storage with both vertical and floor space utilization.



► Fast product movement with reduced travelling distance following First-in/First-out stock rotation.



► Improved selectivity, accessibility and visibility.



► Saving labor cost, reducing the amount of time for product searching and walking.



► Optimized flow of orders with increased pick accuracy and convenience.



► Customized to personal businesses and warehouse layout.



► Extremely flexible system with customized designs and configurations.



► Very compatible system handles single piece products, pallet loads and high SKU items.



► Inventory management.



► Safer while fewer mistakes.




CAD Designed High Throughput Warehouse Pick Modules 1




Limitations of Pick Modules



► High initial investment with this complicated system



► Expensive operating and maintenance cost



► Difficult to reconfigure or relocated
