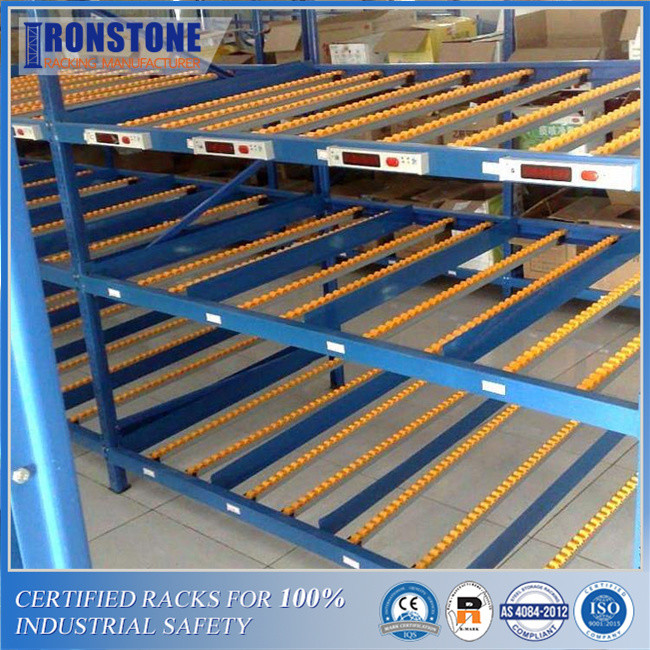

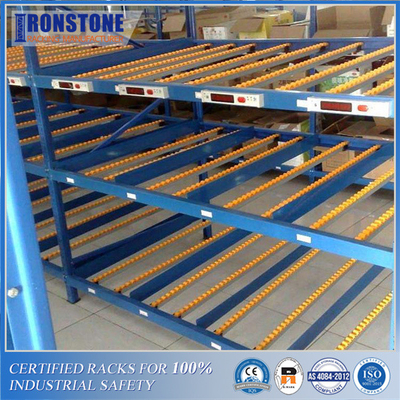

Carton Gravity Flow Rack System Customized with FIFO

Carton Gravity Flow Rack System Customized with FIFO
Features Gallery Product Description Request A Quote
Features: Fast Stock Rotation With FIFO
Name: Gravity Taken Pallet Flow Racking System
Design: Inclined Rails With Rollers For Semi-automated Pallet Movement
Application: Carton, Boxes, Pallets Storage And Picking
Dimension: H:1.5~3.0Mts,Depth: 0.45~1.2Mts, Width: 1~3.9Mts, Customizable As Request
Load Capacity: Light Duty, Medium Duty And Heavy Duty
Certification: RMI(R-Mark Certification)/ AS4084-2012 / CE / ISO9001
Components: Upright Frame, Beams, Galvanized Rollers, Bracing
High Light:

Carton Gravity Flow Rack System


Customized Flow Rack System


FIFO Carton Flow Rack

Basic Infomation
Place of Origin: China
Certification: RMI, AS4084, ISO9001, CE
Model Number: CFR Model
Payment & Shipping Terms
Packaging Details: Plastic stretch film, corrugated paper, cartons, wooden bars, crates, and metal strips, etc.
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 3000 Tons per month
Product Description

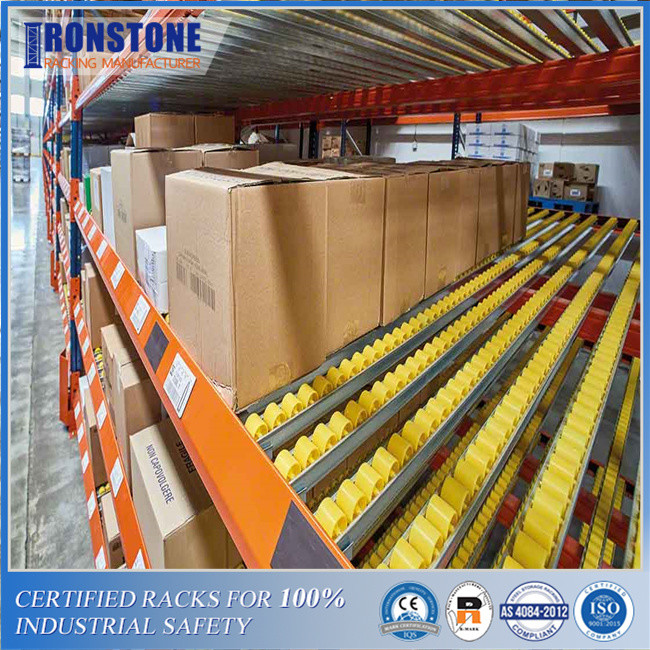

Customized Carton Gravity Flow Storage Rack



A carton flow rack, also known as a carton flow system or gravity flow rack, is a type of storage solution used in warehouses and distribution centers to efficiently store and retrieve cartons or boxes of inventory. It is designed to maximize space utilization and improve picking efficiency.


In a carton flow rack, inclined roller tracks or conveyor lanes are installed within a racking system. These tracks allow cartons to flow smoothly and sequentially from the loading end to the picking end of the rack, utilizing gravity. The cartons are loaded into the rear of the rack, and as one carton is removed from the front, the next carton in line moves forward automatically to take its place.


The design of the carton flow rack ensures that the oldest stock is automatically rotated and accessed first, following the principle of "first-in, first out" (FIFO). This is particularly useful for industries dealing with perishable or time-sensitive goods.


Carton flow racks offer several advantages, including efficient space utilization, reduced picking time, increased order accuracy, and improved inventory rotation. They are commonly used in order-picking operations, where a high volume of cartons or cases needs to be accessed quickly and easily.




Carton Gravity Flow Rack System Customized with FIFO 0

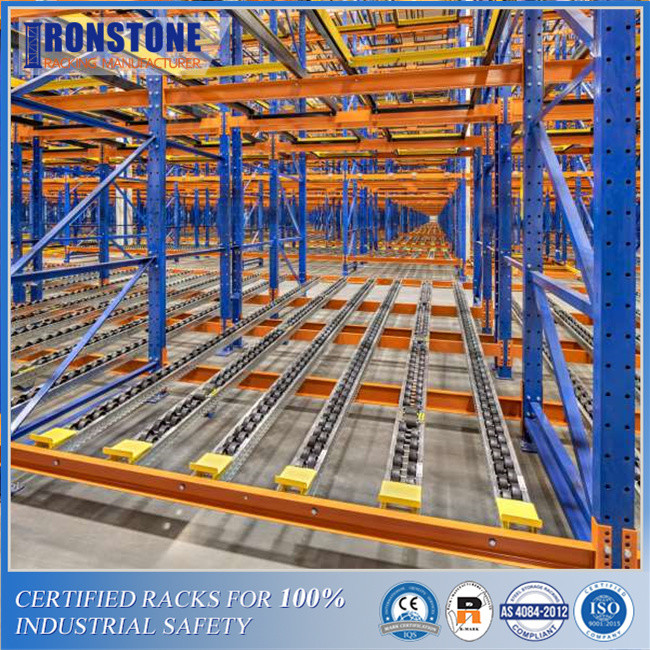

Pallet Flow Racking System Details



Rack Name Gravity-taken pallet flow racking system with fast stock rotation
Rack Type Dynamic flow with semi-automated stock rotation
Upright Section Customized sizes, commonly used sections: 80*60, 90*60, 90*70, 100*70,120*95
Beam Section Customized sizes, commonly used sections: 80*50/100*50mm
Product Material High Strength Steel-/Amercian Standard Steel
Load Capacity Customized load capacity, commonly with 1000/1500kg per pallet load
Storage Layer Customized, 2-6 Adjustable layers
Features FIFO inventory rotation, fast and efficient stock management
Surface finish Powder-coated and galvanized steel for corrosion protection




The Features and Advantages of the Carton Flow Rack Include:



1. Enhanced Picking Efficiency: The flow design of the rack enables a smooth and sequential flow of cartons from the loading end to the picking end. This eliminates the need for manual carton retrieval and reduces picking time, resulting in increased productivity and efficiency.



2. Improved Space Utilization: Carton flow racks maximize vertical and horizontal space utilization by using inclined roller tracks or conveyor lanes. This allows for efficient storage of a large number of cartons or boxes in a compact area.


3. FIFO Inventory Rotation: Carton flow racks follow the "first-in, first-out" (FIFO) principle, ensuring that the oldest inventory is accessed and picked first. This is crucial for industries dealing with perishable or time-sensitive goods, as it helps prevent stock spoilage and reduces the risk of product obsolescence.


4. Ergonomic Design: Carton flow racks are designed with ergonomics in mind. The inclined tracks or conveyor lanes allow for easy access to the cartons at the picking ends, reducing the need for bending, reaching, or heavy lifting by warehouse personnel. This promotes a safer and more comfortable working environment.


5. Versatility and Customization: Carton flow racks can be customized to suit specific storage requirements and carton sizes. The configuration of the roller tracks, lane dividers, and pitch can be adjusted to accommodate different carton dimensions, weights, and flow rates.


6. Durability and Reliability: Carton flow racks are typically constructed using robust materials, such as steel or aluminum, ensuring durability and long-term reliability. They can withstand heavy loads and repetitive use without compromising structural integrity.




Carton Gravity Flow Rack System Customized with FIFO 1

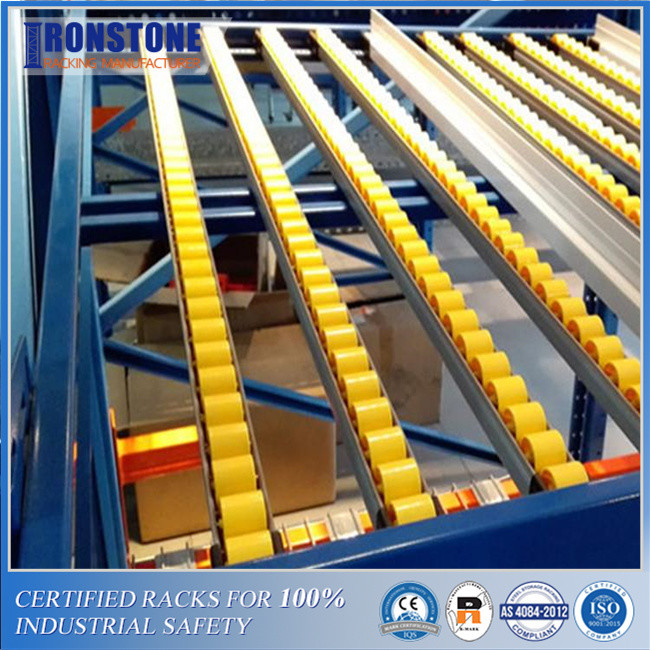

Carton Flow Rack Component



Carton Gravity Flow Rack System Customized with FIFO 2




To Customize a carton flow rack, the following information is typically required:



1. Carton Dimensions: The dimensions of the cartons or boxes to be stored are essential for designing the roller tracks or conveyor lanes. This includes the length, width, and height of the cartons. Additionally, the maximum weight of the cartons should be known to determine the load-bearing capacity of the rack.


2. Flow Rate and Capacity: Understanding the required flow rate, which refers to the number of cartons passing through the rack per unit of time, is crucial. This information helps determine the width and number of roller tracks or conveyor lanes needed to handle the desired volume. It is also important to consider the overall capacity of the rack, which is determined by the number of cartons it can accommodate.


3. Warehouse Layout and Space Constraints: Knowledge of the available warehouse space and layout is necessary to design a carton flow rack that fits seamlessly into the existing storage area. This includes considering the ceiling height, column spacing, and any obstacles or obstructions that may affect the installation or operation of the rack.


4. Picking Method: Understanding the specific picking method to be employed is important. This could include manual picking, automated picking systems, or a combination of both. The picking method will influence the design and configuration of the carton flow rack.


5. FIFO or LIFO Requirements: Determining whether a "first-in, first-out" (FIFO) or "last-in, first-out" (LIFO) inventory rotation is needed is crucial for designing the carton flow rack. FIFO is commonly used for industries with perishable or time-sensitive goods, while LIFO may be suitable for non-perishable or non-time-sensitive products.


6. Additional Requirements: Any additional requirements or considerations, such as lane dividers, braking mechanisms, labeling or identification systems, or integration with existing warehouse management systems, should also be communicated during the customization process.



Questions You May Care About:


Q1:Does all racks produced by your company?

A1: Yes, we're a direct manufacturer with over 20 years of experience, main products of us include Pallet Racking, Shelving, Radio Shuttle, Cantilever, Mezzanine, etc. All products are 100% produced by ourselves.


Q2: Where is your company located?

A2: Our factory is located in Jiangning District, Nanjing, Jiangsu, China, close to Nanjing Port, convenient for delivery. 90,000 sqm production plant, which enables a strong production capacity and stable quality.


Q3: What certification do your products pass?

A3: We're ISO9001 certificated company. Rack systems are strictly designed and produced based on CE and AS4084:2012 standards for storage racks, and comply with FEM and RMI standards.


Q4: Can OEM/ODM?

A4:We can provide OEM ODM service, we know that brand owners care about the quality of products, so our products from the selection of materials, and product style design will be strictly in accordance with your product design drawing design. At the same time, we have a professional research and development team. If you need a product with special functions and requirements, you can also communicate your ideas with us.


Q5:What is your minimum order?

A5: You only need to purchase one item that we can deliver to you.


Q6:Do you provide the samples?

A6:We can provide the product samples for you to test. Samples can be transported by sea, land, and air.


Should any issue you are concerned about, feel free to contact me before and after-sales.
