Smart Warehouse Pallet Radio Shuttle Racking System With Easily Managed
The Radio Shuttle Pallet Rack is a high-density racking system that uses a robotic cart (also known as a "shuttle") to move around the racks to facilitate storage and retrieval of goods. Such systems are often used to store large quantities of goods of the same type, such as food, pharmaceuticals, electronics, etc.

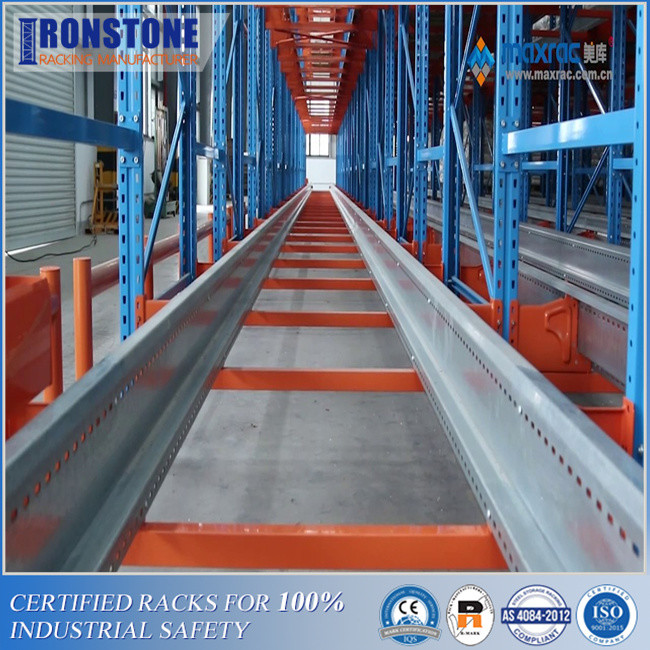

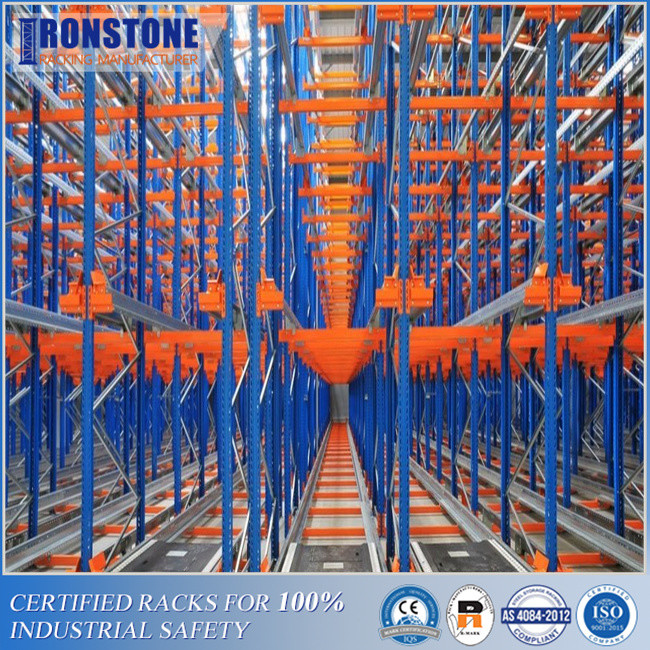

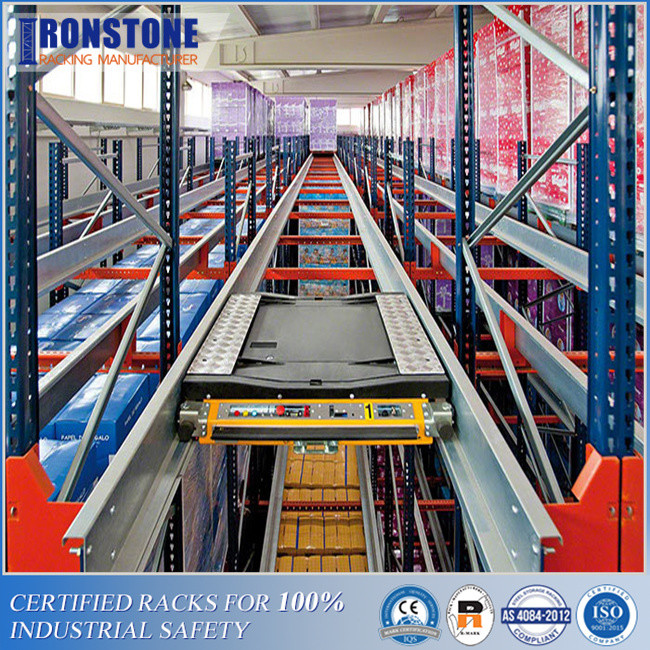

This racking system consists of many columns, beams and horizontal supports, allowing multiple racks to be stacked vertically. The robot car can automatically move between the shelves, move the goods from the entrance to the designated position of the shelf, and then take the goods out of the shelf and transport them to the exit for loading on forklifts or other handling equipment.
The advantages of Radio Shuttle Pallet Rack are that it can save time and space, improve storage efficiency, reduce labor costs, and improve safety.

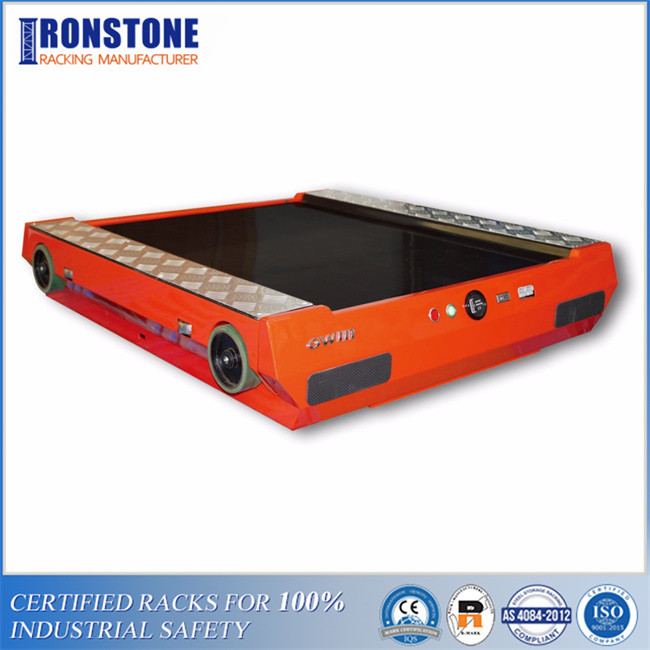

Radio Shuttle Pallet Rack Components

Specifications of Radio Shuttle Rack
Item |
Basic Data |
Remark |
Type |
High version: TDRII-A-1012-1.5T |
|
Appropriate Pallet |
Width:1016mm Depth:1219mm |
Entry: 1016mm |
Max Load Capacity |
Max 1500kg |
|
Move |
Speed |
Vmax empty:1.5m/s,Vmax full:1.0m/s |
|
Acceleration |
≤0.5m/S2 |
|
Motor |
Brushless servo motor: 48VDC 600W |
Imported from America |
Servo Driver |
Brushless servo driver |
Imported |
Lift |
Lift Height |
40mm |
|
Motor |
Brushless motor: 48VDC 500W |
Imported from America |
Positioning/Accuracy |
Move Positioning: laser sensor |
Germany P+F/SICK |
Pallet Positioning: laser sensor |
Germany P+F/SICK |
Lift Positioning: proximity switch |
Germany P+F |
Object Detection |
Background suppression photoelectricity |
Germany P+F/SICK |
Control System |
Programmable controller: S7-200 PLC |
Germany SIEMENS |
Remoter |
Work frequency: 433MHZ;
Communication distance: at least 100m if in an open environment.
|
Imported customized IMT |
Two-way communication, with LED display |
Temperature:-40℃~+80℃ IP67 |
Power Supply |
Lithium iron phosphate power battery |
Domestic, high quality |
Battery Parameter |
48V,30AH;
running time:≥8h;
charging time: 3h;
charge times:1000
|
Maintenance-free |
Speed Control Mode |
Servo control, constant torque at low speed |
|
Shuttle Control Mode |
Remote control |
|
Running Noise |
≤60db |
|
Painting Requirements |
Frame (black)
Others (light gray)
|
|
Ambient temperature |
Temperature: 0℃~50℃
Humidity: 5% ~ 95% (no condensation)
|
|
Anti-collision Device |
Polyurethane cushioning strip and anti-collision sensor are installed on the end surface |
|
Radio shuttle pallet rack is a high-density storage system designed for the efficient and safe storage of pallets. Some of its key features and advantages are:
►High-density storage: The radio shuttle system allows for high-density storage by enabling deep lane storage of pallets. This maximizes warehouse space utilization and increases storage capacity.
►Automated handling: The radio shuttle system is automated, which reduces the need for manual labor and increases handling efficiency. This makes it ideal for high-volume storage applications.
►Flexibility: The radio shuttle system can handle a variety of pallet sizes and weights, making it suitable for different types of products and industries.
►Safety: The radio shuttle system has safety features that ensure the safe handling and storage of pallets. This includes anti-collision sensors, automatic brakes, and emergency stop buttons.
►Cost-effective: The radio shuttle system can save costs by reducing labor requirements and maximizing storage capacity. It also improves inventory accuracy, reducing the risk of overstocking or stock shortages.

When using radio shuttle pallet rack, there are several things that should be taken into consideration to ensure safe and effective operation:
♦Proper training: All personnel who operate the radio shuttle system should receive proper training on its use and safety procedures.
♦Regular maintenance: The radio shuttle system should be regularly inspected and maintained to ensure its proper functioning and safety. Any issues should be addressed promptly.
♦Weight capacity: The radio shuttle system has weight limits for both the shuttle and the pallets it carries. It is important to adhere to these limits to avoid accidents and damage to the system.
♦Compatibility: The radio shuttle system should be compatible with the pallets being stored. This includes ensuring that the pallets fit within the system's specifications and that the pallets are compatible with the shuttle's handling capabilities.
♦System configuration: The radio shuttle system's configuration should be properly designed to suit the warehouse's layout and the specific requirements of the products being stored.
♦Emergency procedures: Emergency procedures should be in place in case of any incidents, such as shuttle malfunctions or collisions.
Warehouse Solution Designing
Ironstone has its own design consultants who are experienced in offering you optimal storage solutions for optimizing your material and information flow. Based on engineering design, computer modeling, and CAD software design, we have successfully provided thousands of storage solutions for our customers. Through a win-win combination, we can assure you of your success in managing your goods by means of our professional technology and risk management.
We can satisfy your various design requirements!
