Certified Warehouse Storage Rack Supported Mezzanine Floor Systems

Certified Warehouse Storage Rack Supported Mezzanine Floor Systems
Features Gallery Product Description Request A Quote
Name: Rack-supported Mezzanine Platforms
Feature: Compact Storage Solution
Components: Supported Racks, Columns, Flooring Decks
Load Capacity: As Clients' Request, Less Than 1500 Kg Per Square Meters
Usage: General Warehouse Distribution, Logistics, Cold Warehouse Storage, E-Commerce, Manufacturing, Food&Beverage, Retail, 3PL, Automotive, Record Storage
Dimension: H:2~16.5Mts,Depth: 0.6~1.5Mts, Width: 1~3.9Mts, Customizable As Request
Certification: RMI / AS4084-2012 / CE / ISO9001
Services: Free CAD Design, ODM&OEM, Transportation, Project Installation, Systems Maintenance Etc.
High Light:

Warehouse Rack Support Mezzanine Floor


1500kg Rack Support Mezzanine Floor


RMI Certified Mezzanine Platform

Basic Infomation
Place of Origin: China
Certification: RMI, AS4084, ISO9001, CE
Model Number: MR Mode
Payment & Shipping Terms
Packaging Details: Plastic stretch film, corrugated paper, Cartons, wooden bars, crates, and metal strips, etc.
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 3000 Tons per month
Product Description

Certified Warehouse Storage Rack Supported Mezzanine Floor Systems



The rack-supported mezzanine concept can be integrated with a variety of other systems to increase the storage capacity within a facility. Rack-supported mezzanine floors are a very practical way to utilize the (often wasted) space above the rack. This form of the mezzanine is constructed with pallet racking materials and is usually the most cost-effective way to build a mezzanine.



Storage is obtained above the structure with an open deck, plus the support of the deck is available for pallets that can be left open or utilized as shelving. Rack support mezzanines utilize high shelf space for shelving storage without the need for a structural mezzanine system.

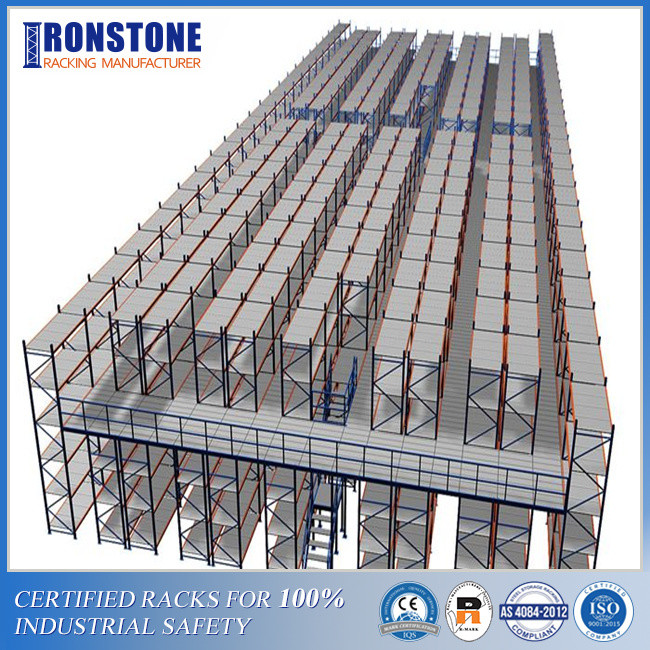

                Certified Warehouse Storage Rack Supported Mezzanine Floor Systems 0



Heavy-duty shelving or shelving or cantilever shelving becomes the structural support for catwalk floor systems. This type of shelving storage is more economical than freestanding mezzanines, with box shelving units installed above and below the mezzanine floor, while also increasing storage capacity.




Benefits of Mezzanine Storage Systems


► Double your available floor space by efficiently utilizing the available space in your facility.


► Increase your productivity.


► Avoid or minimize moving costs.


► Minimize disruptions in the installation process.


► Avoid the need to lease, build or purchase additional space.


► Avoid or minimize additional property taxes.


► Leverage existing heating, ventilation, and cooling systems.


► Provide demolition and relocation options.




Specifications of rack-supported mezzanine



Material High-quality steel, Q355 Surface treatment Epoxy powder coated with customized color
Rack Length Customized ranged from 1.5m to 3.3m Rack width Customized ranged from 0.5m to1.5m
Rack Height Customized ranged from 2m to6m Upper flooring loading capacity Customized commonly ranged from 300kg to 500kg
Production OEM and ODM are supported Flooring levels 2 to 3 levels as clients’ request and warehouse layout




Upright frames, beams, wire decks, column guards, and other accessories are often seen as pallet rack components. The rack-supported mezzanine will also receive additional custom-made components, such as flooring decks, steps, railings, and certain safety features. Wooden decks, bar gratings, diamond plates, galvanized steel panels, wire meshing decks, and powder-coated solid steel panels can all be engineered for use as the second or third flooring decks.

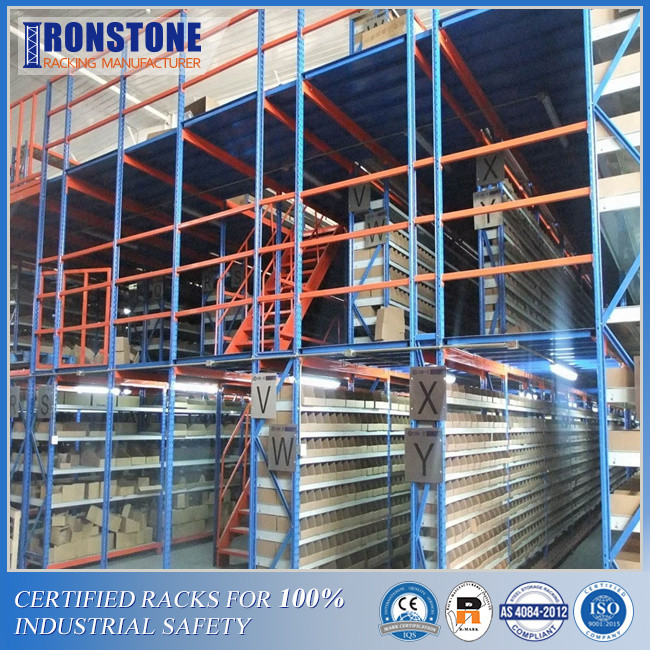

                   Certified Warehouse Storage Rack Supported Mezzanine Floor Systems 1





Our Services



Before-design consultation ⇒ Free CAD design and quotation ⇒ Customized rack and platform production ⇒ Inspection, package, and shipping ⇒ Installation and maintenance support



Ironstone supplies a whole package of rack system products and services. We combine our superior selection of high-quality products with professional, first-rate service. We can help you select the right options for your particular storage needs and provide additional support to help you install your warehouse racking system.
