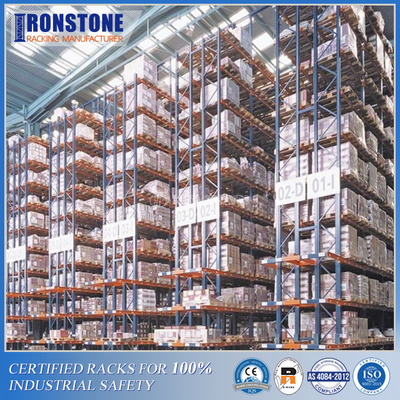

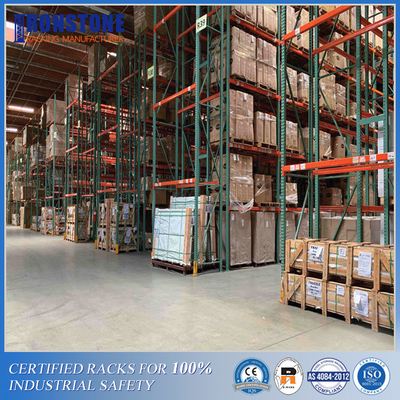

New Type Selective Pallet Racking System For Warehouse Storage

New Type Selective Pallet Racking System For Warehouse Storage
Features Gallery Product Description Request A Quote
Certification: RMI / AS4084-2012 / CE / ISO9001
Name: Pallet Storage Racking System
Material Type: High Strength Steel/ American Standard Steel
Color: RAL5017(Blue), RAL2004(Pure Orange),RAL1037(Safety Yellow), Or Custom Color As Request
Dimension: H:2~16.5Mts,Depth: 0.6~1.5Mts, Width: 1~3.9Mts, Customizable As Request
Load Capacity: 500kgs~4000kgs/Layer, 4000kgs~30000kgs/Bay
Services: Free CAD Design, All-round After-sale Services
Pitch: 50mm Or 75mm Adjustability
Brand: Ironstone, OEM/ODM Available
Usage: Distribution Centers, Cooler Rooms, Freezers, Industrial Warehouses
High Light:

2000kgs Single Deep Selective Racking


Selective Racking System ISO9001


Racking System For Warehouse ISO9001

Basic Infomation
Place of Origin: Jiangsu, China
Brand Name: Ironstone
Model Number: WA-SPR
Payment & Shipping Terms
Packaging Details: Plastic stretch film, corrugated paper, cartons, wooden bars, crates, and metal strips, etc.
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 3000 Tons per month
Product Description

Widely Applicable Selective Pallet Racking System for Various Storage Demands




Selective pallet racks are the most popular type of warehouse pallet rack system on the market and are designed to offload pallets into a racking system. Selective pallet racking systems enable swift operations while storing and unloading pallets. The system offers the largest possible range of selection in sizes and accessories to meet your exact needs and it can be custom-configured for your warehouse storage application.



Name Pallet rack Material US standard steel
Shelf levels 2~15 tiers per shelving unit Color  Green, Orange, Blue, Yellow, Custom
Upright Frame Height 2500mm~15000mm Weight Capacity 500~3000kg per level
Beam Width 1000mm~3900mm Frame Depth 700mm~1500mm
Finish Epoxy powder coated for corrosion prevention
Usage Cargoes Storage, Palletized loads production
Package Plastic stretch film, corrugated paper, cartons, wooden bars, crates, metal strips, etc.
Accessories Bolts and nuts, Upright protectors, decks, etc.
Certification RMI/AS4084-2012 /CE/ ISO9001
Delivery time 7~25 days as per order quantity
Assemble & installation Detailed assembly instructions are available


Advantages of Selective Rack Systems



►Available in numerous capacities, sizes, and configurations for a specific demand.


►Immediate access to all storage.


►Can be made from roll-formed steel, structural steel, or a combination of both materials.


►Easily adjustable shelf heights.


►Inexpensive — lowest cost option per square foot.





                New Type Selective Pallet Racking System For Warehouse Storage 0



With the rapid development of the economy and increasing demands of customers, requirements for warehousing are upgrading. To satisfy different storage needs, there are various pallet rack systems available for selection in the market.


However, none of them is perfect. If you set up a suitable pallet rack system in your facility, it will be conducive to the administration of inventory flow, improve space efficiency and enhance storage capacity, whereas an unsuitable one will cause you trouble. Here are some tips to help you build a proper pallet rack system:



How to choose the right type of pallet rack system?



Every pallet rack system has its own advantages and disadvantages. It is advisable to employ appropriate rack system in terms of specific storage needs. You can make decisions from the following aspects:



♦Product Rotation


Which load method do you prefer, FIFO (first in, first out) or FILO (first in, last out)? If the stored products are time-sensitive, FIFO is critical for the rack system. If the potency of products is durable and far from the expiration date, FILO is acceptable.



Common FIFO pallet rack systems: selective pallet rack, very narrow aisle pallet rack, pallet flow rack;



Common FILO pallet rack systems: double deep pallet rack, drive-in pallet rack, push back pallet rack.



♦Selectivity VS. Density


Selectivity is related to the variety of stored units, while density is connected with product quantity. If you are going to store a lot of different products, attach importance to selectivity when choosing a pallet rack; if you plan to store a large number of the same SKUs, put density before selectivity.



100% selectivity pallet rack systems: selective pallet rack, very narrow aisle pallet rack, ASRS;


High-density pallet rack systems: drive-in pallet rack, push-back pallet rack, pallet flow rack, radio shuttle rack.





Budget is another factor concerning pallet rack selection. Making full use of available space within your budget is the ideal result. The costs of different pallet rack systems vary. If you are not clear, you can consult us for advice. We are confident to offer you the most cost-effective plan.



                        New Type Selective Pallet Racking System For Warehouse Storage 1




How to make sure the size of pallet racks?



After selecting a suitable type of pallet rack, it is time to identify the size. You can proceed in the following steps:



               New Type Selective Pallet Racking System For Warehouse Storage 2

  • Measure your facility

Make sure which area in your facility is used for storage. Take measurements of the available space. Based on the measured data, draw a layout indicating dimensions, ceiling height and positions of doors, walls, pillars and other obstacles.


  • Determine the size and weight of pallets

Which pallet size would you plan to choose? How much would a pallet carry? Identify the width, depth and height (load height plus pallet height) of chosen pallets. Measure the accurate weight of each pallet.


  • Select beam size

Beam width: When placing pallets on beams, there should be at least 10cm clearance between upright columns and pallets, and between pallets. For example, if the pallet width is 100cm and two pallets are loaded per bay, then the beam width should be: 10cm + 100cm + 10cm + 100cm + 10cm = 230cm.


Beam capacity: Beam capacity hinges on pallet weight and the number of pallet loaded. For example, if pallet weight = 1000kg with two pallets per level, then beam capacity should be no less than 2000kg (1000*2).


  • Determine frame depth

Frame depth refers to the distance between loaded beams. Usually, a properly stored pallet should overhang the beams by approximately 8cm both in the front and in the back, allowing the beams to carry the full weight of the pallet. Thus, if pallet depth = 120cm, frame depth = pallet depth - 2*8cm = 104cm.


  • Determine frame height

There should be at least 45cm distance between ceiling (or your sprinklers) and your products. Besides, the height that your material handling equipment can reach should be taken into account. Within your forklifts’ accessibility, we suggest that your rack system should reach as high as it reasonably can to optimize the utilization of vertical space, even if it exceeds your present needs.



                    New Type Selective Pallet Racking System For Warehouse Storage 3



Since pallet racks are durable products, it is favorable to consider further development in the future when designing pallet racks. In addition, the difference in the costs between a 4m frame and a 5m frame is negligible compared with the total cost of your project.
