ODM & OEM Supported Very Narrow Aisle Pallet Racking System for Large Quantity Product

1*20ft
MOQ
USD$0.85/KG
Price
ODM & OEM Supported Very Narrow Aisle Pallet Racking System for Large Quantity Product
Features Gallery Product Description Request A Quote
Features
Specifications
Material Type: High Strength Steel/American Standard Steel
Color: RAL Code: Blue, Green, Orange, Yellow, Grey, Galvanization, Etc.
Usage Range: General Warehouse Distribution, Logistics, Cold Warehouse Storage, E-Commerce, Manufacturing, Food&Beverage, Retail, 3PL, Automotive, Record Storage
Dimension: H:2~16.5Mts,Depth: 0.6~1.5Mts, Width: 1~3.9Mts, Customizable As Request
Load Capacity: 500kgs~4000kgs/Layer, 4000kgs~30000kgs/Bay
Certifications: RMI / AS4084-2012 / CE / ISO9001
Safety Accessories: Wire Decks, Column Protectors, Pallet Supports, Etc.
Products Package: Steel Strip, Stretch Film, Corrugated Paper, Bubble Film, Plywood Pallets
Services: Free CAD Design, ODM&OEM, Transportation, Project Installation, Systems Maintenance Etc.
High Light:

AS4084 Very Narrow Aisle Racking System

,

500kgs Very Narrow Aisle Racking System

,

AS4084 vna pallet racking

Basic Infomation
Place of Origin: Jiangsu, China
Brand Name: Ironstone
Certification: RMI, AS4084, ISO9001, CE
Model Number: HD-SPS
Payment & Shipping Terms
Packaging Details: Plastic stretch film, corrugated paper, Cartons, Plywood Pallet, bubble film, and metal strips, etc.
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 3000 Tons per month
Product Description

Space-Saving VNA Type Storage Solutions Of Very Narrow Aisle Pallet Racking Systems







Very Narrow Aisle racking systems is also briefly called as “VNA” racking system, it’s kind of high storage racks system that built for fully utilizing vertical space of facility in a given area with special lifting trucks that operating in a designed narrow aisle, this system has 100% selectivity for pallet products like selective rack as well as significantly increasing storage density by reducing aisle width and taking fully advantage of overhead space.

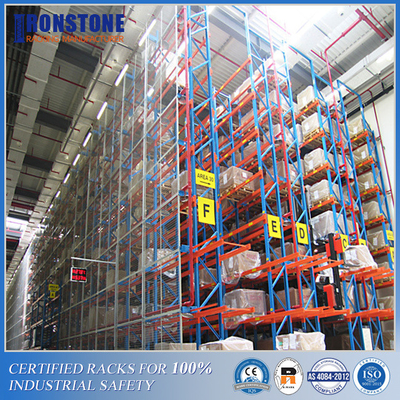

              ODM & OEM Supported Very Narrow Aisle Pallet Racking System for Large Quantity Product 0





Ironstone design and manufacture all involved components for very narrow aisle racking system, which meet rigorous international structural standards. Whatever from various frames & beams dimension to unique connection brackets, Our VNA racking systems engineers with advanced manufacturing technique make whole storage systems more robust and stability than your expectation.

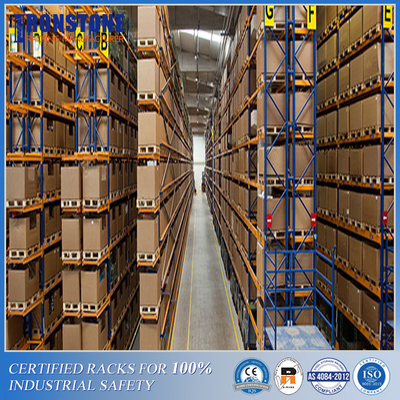

               ODM & OEM Supported Very Narrow Aisle Pallet Racking System for Large Quantity Product 1





Benefits of VAN systems



  • Take fully advantage of vertical space of warehouse to create more storage space



  • Great for a wide of variety of SKUs picking & storage as every pallet position could be 100% accessed directly, FIFO (First in, First out) products rotation



  • Reduce aisle width and increases storage area utilization



  • Save potential building costs by creating extra storage space in a given areas



  • Products Picking and storage are easy with high-performance Turret Trucks



Turret Trucks Operating in VNA Racking Systems





Narrow aisle turret trucks can operate freely in and out of the aisle in a narrow aisle pallet racking system, and bring the benefits of selectivity as well as a higher storage density. VAN trucks are engineered to maximize usable warehouse space, potentially improving pallet storage capacity within your existing warehouse footprint while providing significant cost savings.





These trucks are designed with a holistic approach of understanding space constraints and narrow aisle applications. Swing reach turret truck can be customized to move loads more quickly and efficiently, and enable operators to work smarter, not harder.

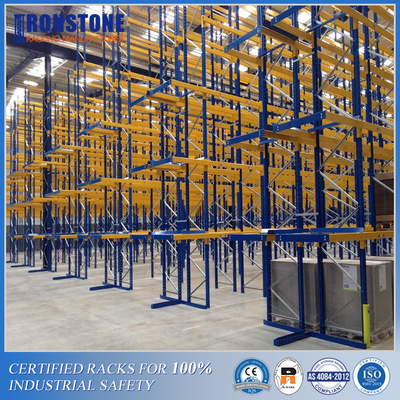

               ODM & OEM Supported Very Narrow Aisle Pallet Racking System for Large Quantity Product 2ODM & OEM Supported Very Narrow Aisle Pallet Racking System for Large Quantity Product 3
