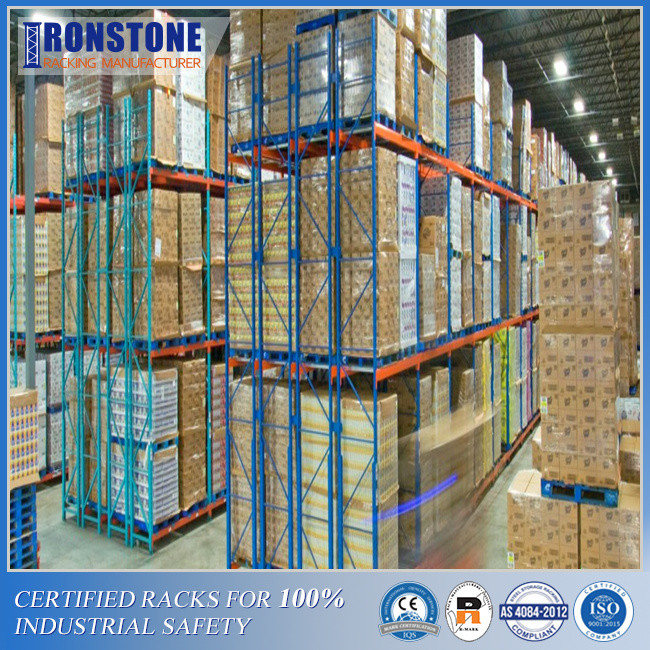

Double Deep Pallet Metal Rack For Cold Storage Applications

Double Deep Pallet Metal Rack For Cold Storage Applications
Features Gallery Product Description Request A Quote
Features: 50% Accessibility And 50% Selectivity
Name: Double-deep Pallet Rack
Material: High Strength Steel For Durable Usage
Color: RAL Code: Blue, Orange, Yellow, Grey, White, Etc.
Dimension: H:2~16.5Mts,Depth: 0.6~1.5Mts, Width: 1~3.9Mts, Customizable As Request
Certification: RMI / AS4084-2012 / CE / ISO9001
Services: Free CAD Design, ODM&OEM, Transportation, Project Installation, Systems Maintenance Etc.
Usage: General Warehouse Distribution,
High Light:

RAL Double Depth Racking


Double Depth Racking 1000mm Depth


RAL double deep warehouse racking 600mm

Basic Infomation
Place of Origin: China
Certification: RMI, AS4084, ISO9001, CE
Model Number: DB Model
Payment & Shipping Terms
Packaging Details: Plastic stretch film, corrugated paper, Cartons, wooden bars, crates, and metal strips, etc.
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 3000 Tons per month
Product Description

Customized Cost-Effective Double Deep Pallet Rack Systems For Industrial Storage




What is double deep pallet rack?



Double-deep system is a variation of single-deep, using standard selective racking components to store products two-pallet-deep (or four deep in a double entry rack).  Allowing for two to four pallets deep storage space while eliminating an aisle between two storage racks. This increased pallet storage density brings both the increased storage efficiency and reduced pallet accessibility compared to selective pallet racks.



For double-deep racking system, the front pallet position must be empty in order to reach the rear pallet load. Usually, two times handling is necessary unless pallets are stored on a fast-in/first-out basis. To make full use of this storage system, some special deep- reach lift trucks are required to handle loads with high volumes and single-SKU.




Warehouse racks details


Name Warehouse rack Material Steel
Shelf levels 2~15 tiers per shelving unit Color (RAL Code) Green, Orange, Blue, Yellow, Etc.
Upright Frame Height 2500mm~15000mm Weight Capacity 500~3000kg per level
Beam Width 1000mm~3900mm Depth 700mm~1500mm
Finish Epoxy Powder Coated for corrosion prevention
Usage Cargos Storage
Package Plastic stretch film, corrugated paper, Cartons, wooden bars, crates, and metal strips, etc.
Accessories Bolts and nuts, Upright protectors, decks, etc.
Certification RMI/AS4084-2012 /CE/ ISO9001
Delivery time 7~25 days as per order quantity
Assemble & installation Detailed assembly instructions are available




Advantages of double deep pallet rack




► High storage density


Cutting some aisles of selective pallet rack and adding more racks, double deep pallet rack utilizes the warehouse space to gain a denser storage structure.



► Adjustable and flexible


Double deep pallet rack is available in a variety of heights, depths, bay lengths and capacities, which all make double deep system adjustable and flexible.



► High product throughput


With reasonable stock rotation and selectivity, double deep pallet rack has become a very popular choice in high throughput operations for products requiring no instant access.



► Economical storage solution


Double deep pallet rack is economical in saving warehouse investment and expanding storage space. Compared to other denser storage solution, the cost of double deep components is relatively lower.




Disadvantages of double deep pallet rack




► Requiring double-deep reach truck for deep product handling with additional forklifts investment.



► Only 50% product selectivity and accessibility.



► Same items are required at the same storage level with Last-in/First-out(LIFO) stock rotation principle.



► Increased difficulty for inner and upper pallet positions operation.



► Limited storage height(10m)



Anyway, double-deep is a compromise between product selectivity and storage density in pallet racking system. So if you do need a proper balance between storage volume and selectivity, double deep pallet racking system maybe a good choice you can consider.





Ironstone design cases of double deep pallet rack




In industrial application, double deep pallet rack systems are commonly seen in cold warehouse storage for their durability and cost-saving.



Here is a CAD drawing designed by Ironstone of double deep system in a freezer.





Double Deep Pallet Metal Rack For Cold Storage Applications 0
