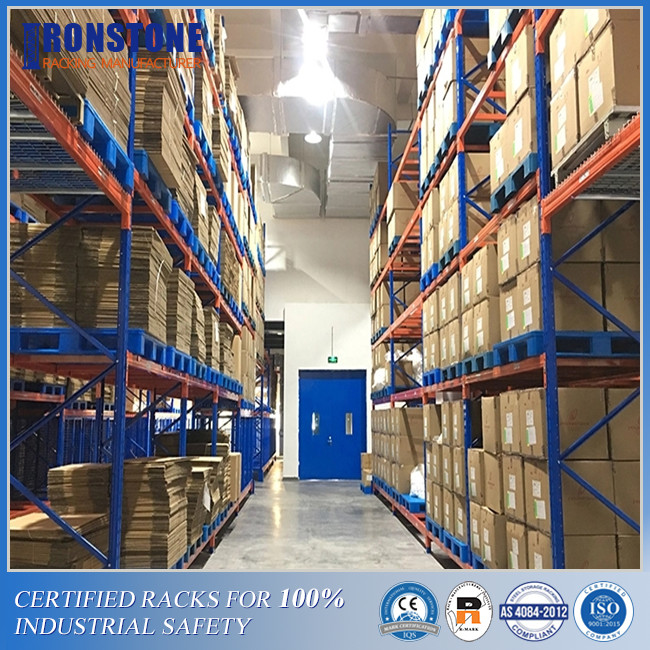

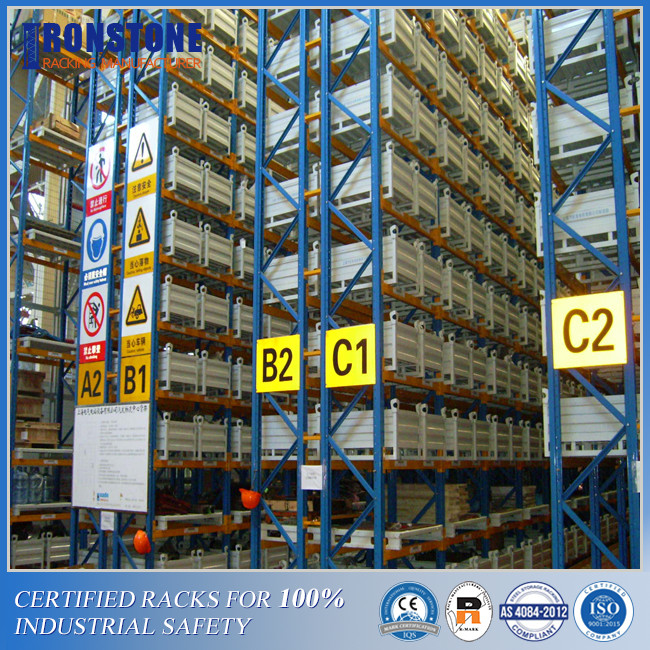

High Bay Warehouse Pallet Racking Systems
We provide a variety of high bay warehouse pallet racking systems options, from manually operated to fully automated. The racks are specifically made to meet the stacking needs of internal solutions and customized ones for the available space. The high bay warehouse design by us does away with the need for a separate hall building because the rack acts as a supporting framework. High bay warehouses are built with an autonomous racking system, maximum space efficiency, a small footprint, quick installation, and minimal running expenses in mind.
Ironstone manufactures pallet silos that are over 40 meters high, and High Bay warehouses are the greatest alternatives for racking construction that is over 20 meters, thanks to their modern infrastructure and services. All of our pallet racking systems are well-equipped with a variety of extras, including grate protection, back cladding, support beams, and collision prevention.
What is High Bay Pallet Racking
This robotic warehouse pallet racking systems has a 40-meter height limit and is automatically controlled. Pallets can be stacked "single deep" or "double deep," and serviced by racking cranes. The cranes are supported by a floor-mounted rail and have a top guide rail that stabilizes them at the top of the mast.

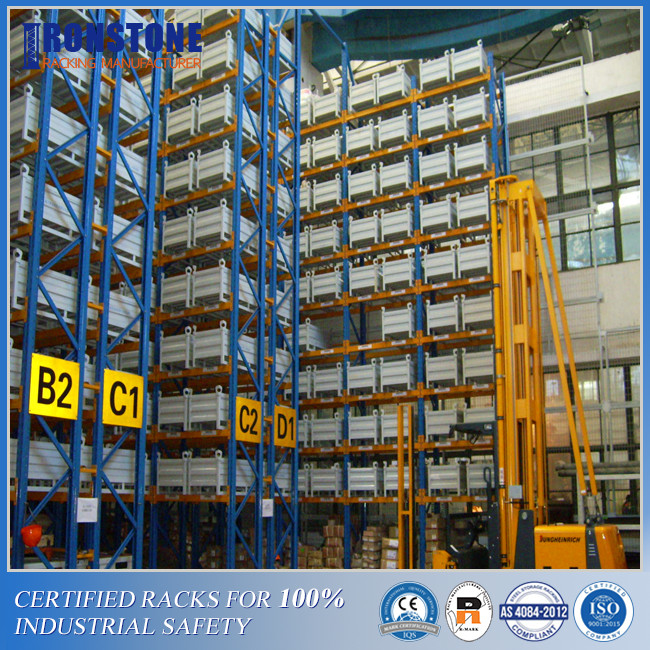

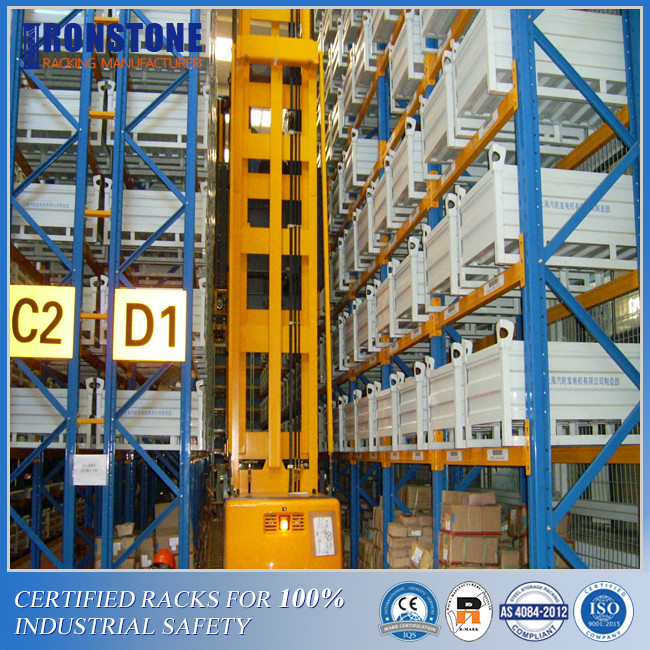

Very Narrow Aisles (VNA) have narrower aisles, allowing for a further 100% increase in truck stacking height. Large amounts of high throughput items are kept on high bay racks.
| Name | High Bay Pallet racking | Material | High Strength Steel |
| Beam levels | 2~15 tiers per bay rack | Color | (RAL Code) Green, Orange, Blue, Yellow, Cuetom, Etc. |
| Upright Frame Height | 2500mm~15000mm | Weight Capacity | 500~3000kg per level |
| Beam Width | 1000mm~3900mm | Frame Depth | 700mm~1500mm |
| Finish | Epoxy Powder Coated for corrosion prevention | ||
| Usage | Cargos Storage | ||
| Package | Plastic stretch film, corrugated paper, Cartons, wooden bars, crates, and metal strips, etc. | ||
| Accessories | Bolts and nuts, Upright protectors, decks, etc. | ||
| Certification | RMI/AS4084-2012 /CE/ ISO9001 | ||
| Delivery time | 7~25 days as per order quantity | ||
| Assemble & installation | Detailed assembly instructions are available as well as dispatching installation engineer for project installing at site. | ||
High Bay Pallet Racking Benefits
► Use of the storage area to its greatest height.
► The building was created with the company's storage needs in mind.
► Perfect for high article counts and moderate to high turnover.
► Decrease in the use of traditional structures.
► Shorter building period.
► Selecting from all shelf levels and having exceptional accessibility.
► Because there are no pedestrians in the aisles, the procedure is safe.
Is a High Bay Pallet Rack System Appropriate for Your Business?
High Bay Pallet Rack can be utilized for a variety of industries, including retail, food & beverage, and many others. Consider these characteristics to determine whether the selected pallet rack will assist your organization.
♦ Its high product accessibility makes it excellent for distribution facilities with continuous product circulation or that require access to all pallets at the same time.
♦ The continuous product circulation flow offered by selective pallet racks enables a high turnover rate.
♦ High bay pallet rack systems can also be utilized for product reserve storage, replenishing picking areas as needed.
Ironstone Service
To better serve our customers, we have established a complete pre-sale and after-sale. We can offer samples of industrial racking, samples of warehouse racking, and mobile racking to you for free. If you have placed the order, we will provide you with spare wearing parts for your storage systems, moreover, all of our products come with a 10-year warrant, so you can feel secure in having any problem solved that you may encounter while using our products, OEM, ODM service is also available, upon request.
Our efforts are appreciated by our customers and our shelf support racking, warehouse racking, industrial racking, and pallet racking are well received in more than 40 countries, such as the USA, Canada, Australia, NewZealand, Europe, Japan, SouthAfrican and so on. Please contact us if you want to get more information and look forward to working with you.
