High Spacing Utilization Mezzanine Floor Racking System

High Spacing Utilization Mezzanine Floor Racking System
Features Gallery Product Description Request A Quote
Key Words: Steel Mezzanine
Application Areas: In-door Or Out-door
Steel: Roll Formed Or Structural
Usage: General Warehouse Distribution, Logistics, Cold Warehouse Storage, E-Commerce, Manufacturing, Food&Beverage, Retail, 3PL, Automotive, Record Storage
Dimension: H:2~16.5Mts,Depth: 0.6~1.5Mts, Width: 1~3.9Mts, Customizable As Request
Load Capacity: 500kgs~4000kgs/Layer, 4000kgs~30000kgs/Bay
Certification: RMI / AS4084-2012 / CE / ISO9001
Services: Free CAD Design, ODM&OEM, Transportation, Project Installation, Systems Maintenance Etc.
High Light:

Customized size Mezzanine Flooring Racking System


High Strength Storage Mezzanine Platforms


RMI Approved Warehouse Steel Mezzanine

Basic Infomation
Place of Origin: China
Certification: RMI, AS4084, ISO9001, CE
Model Number: MR Mode
Payment & Shipping Terms
Packaging Details: Plastic stretch film, corrugated paper, Cartons, wooden bars, crates, and metal strips, etc.
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 3000 Tons per month
Product Description

High Spacing Utilization Mezzanine Floor Racking System

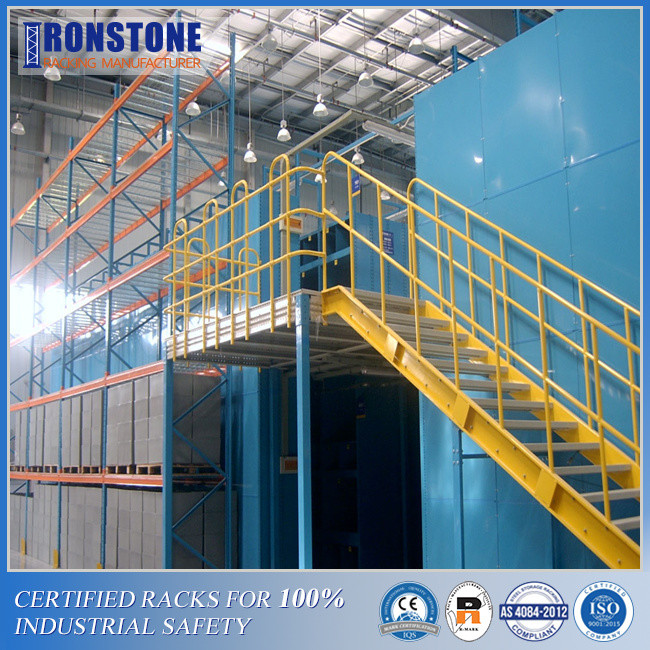

Steel Mezzanine is one of the most cost-saving methods to add extra space for warehouses using pallet racks, shelves and various flooring decks. Rack-supported mezzanine is customized with various span distances, rack depths and overall heights, any sizes that fitting into your warehouses.                                      High Spacing Utilization Mezzanine Floor Racking System 0



Using standard pallet rack uprights and components, medium-duty and heavy-duty mezzanine floors can be assembled. Ironstone has rich experience in designing, engineering, installing, and permitting industrial mezzanine rack-based systems can assess your mezzanine floor design and provide you with the best racking system solution.




Details of Mezzanine System





Customized size with different height, width and length


Load Capacity


Customized capacity ranges from 200 to 800kg per square meter




Free designing as you need



Fitting your storage requirement with suitable material




Upper space could be used to place goods and racks



Good loading capacity enables flexible product storage



Different applications like upstairs used as office and downstairs as storage areas



The space between posts is usually from 3m to 4m, and that between sub-beam is 1.2m




RAL5005, RAL5015, RAL2004, RAL7035 customized as your requirement





Major purposes



If you want to add an office in your warehouse while not reducing your storage space, you may need a platform. If you want to separate your bulky irregular items with palletized products or shelving stored inventory, full mat mezzanine should be considered. Or you just run out of space in your existing pallet-racking system, a mezzanine could be added onto it for storage capacity increase with minimum cost.




Expected load capacity



During the design of the mezzanine, the weight it carries will directly decide the materials for its manufacture. The roll-formed mezzanine can be more economic if you only need light-duty loading capacity. Structural mezzanine is more study and rigid with obviously higher cost.




♦ Inventory types and features



In choosing proper mezzanines that are functional, different products with different sizes, weights, and shapes require specific storage solutions that should be taken into account.

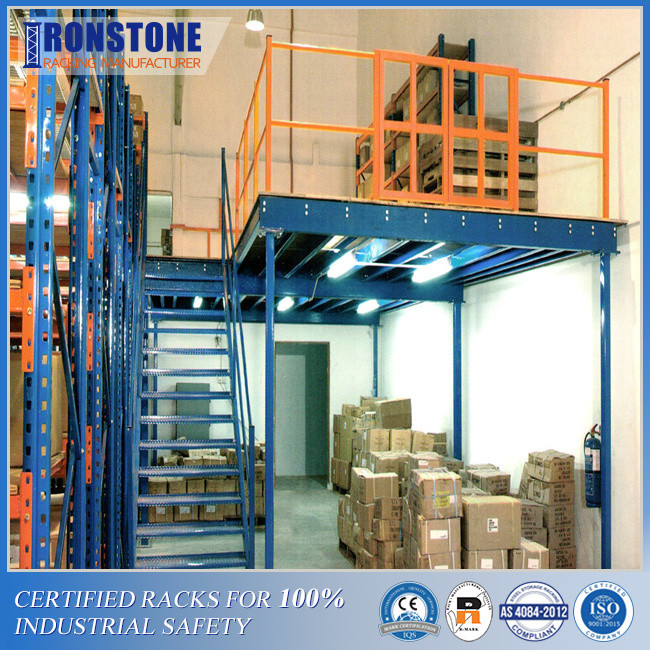

                       High Spacing Utilization Mezzanine Floor Racking System 1



♦ Material handling equipment



The moving machines in your warehouse should be compatible with the mezzanine system you will use. If you already have the material handling equipment, talking to your suppliers for some suggestions that may help you choose the right mezzanine racking system.




Warehouse conditions



The available space inside warehouses will determine the mezzanines scales and dimensions.




Budgets for mezzanines



The prices of different mezzanines with different configurations and materials can vary a lot. How to achieve maximum profits with minimum cost is an ultimate goal that we pursue.




Future and expectations



It’s very important to take your business plans into consideration when purchasing such a large facility. Luckily, most of the mezzanine systems can be relocated and modified easily which means they can grow with your business.

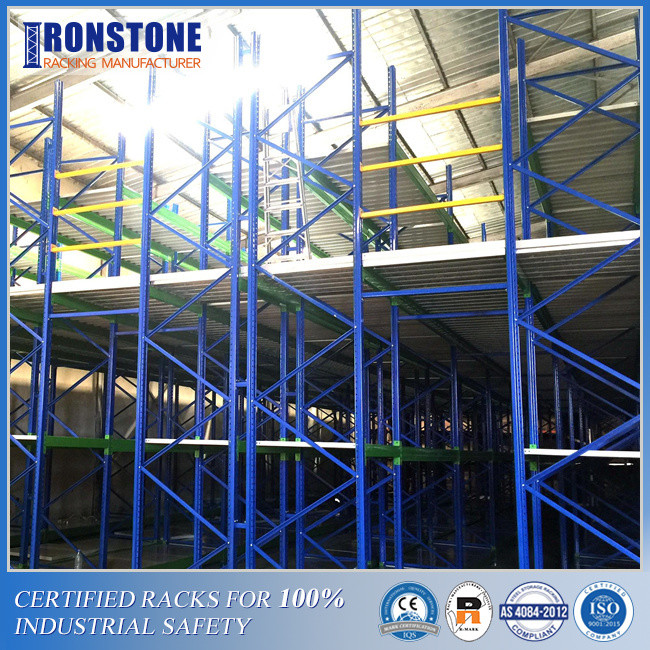

              High Spacing Utilization Mezzanine Floor Racking System 2




There are plenty of great reasons why mezzanines are highly recommended in spaces like warehouses, factories, workshops and large retail stores, etc. A mezzanine floor can increase and maximize your space without the need for major renovation works, and they are also much more affordable than buying a new one.



Industrial mezzanines are customized and freestanding, so their dimensions will be affected by your building structure. Easily be disassembled, mezzanine racking can be rebuilt or relocated if you have new arrangement for your mezzanine system.




Our Service


Ironstone team can design, manufacture and install any style of mezzanine racks for our clients that fully meet International standards including US RMI and Australian standards and building codes AS4084-2021. They can be delivered and installed quickly with our assistance.

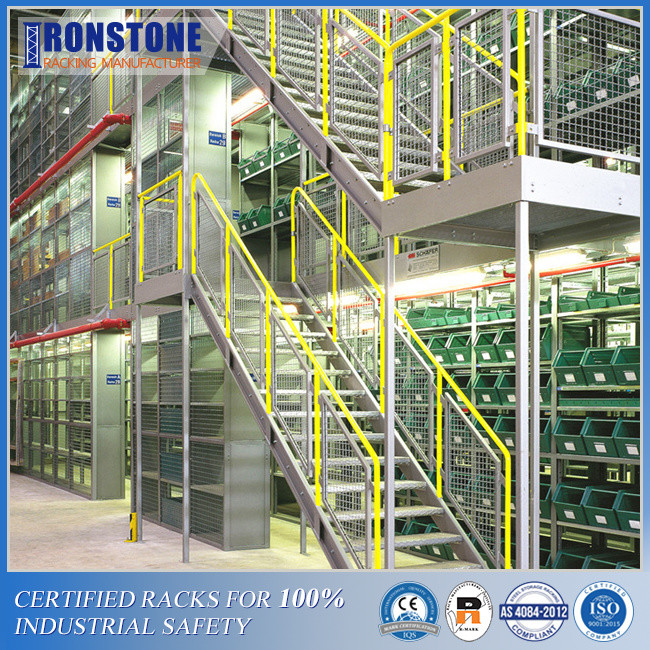

High Spacing Utilization Mezzanine Floor Racking System 3
