High Density Drive-in Rack For Efficient Warehouse Storage

High Density Drive-in Rack For Efficient Warehouse Storage
Features Gallery Product Description Request A Quote
Name: Power Coated Drive In Pallet Rack Systems
Material: Firm Q355 Steel
Surface Dealing: Powder Coated For Corrosion Resistance
Major Components: Upright Frames, Support Rails, Corbels, Protective Accessories
Dimension: H:2~16.5Mts,Depth: 2.1~10.5Mts, Width: 1.35~1.5Mts, Customizable As Request
Safety Accessories: Wire Decks, Column Protectors, Pallet Supports, Etc.
Products Package: Steel Strip, Stretch Film, Corrugated Paper, Bubble Film, Plywood Pallets
Services: Free CAD Design, ODM&OEM, Transportation, Project Installation, Systems Maintenance Etc.
High Light:

Q355 Drive In Racking System


Drive In Racking System 1000kg


Q355 2000kg Drive Through Racking

Basic Infomation
Place of Origin: Jiangsu, China
Brand Name: Ironstone
Certification: RMI, AS4084, ISO9001, CE
Model Number: HD-DI Model
Payment & Shipping Terms
Packaging Details: Plastic stretch film, corrugated paper, cartons, plywood pallet, bubble film, and metal strips, etc.
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 3000 Tons per month
Product Description

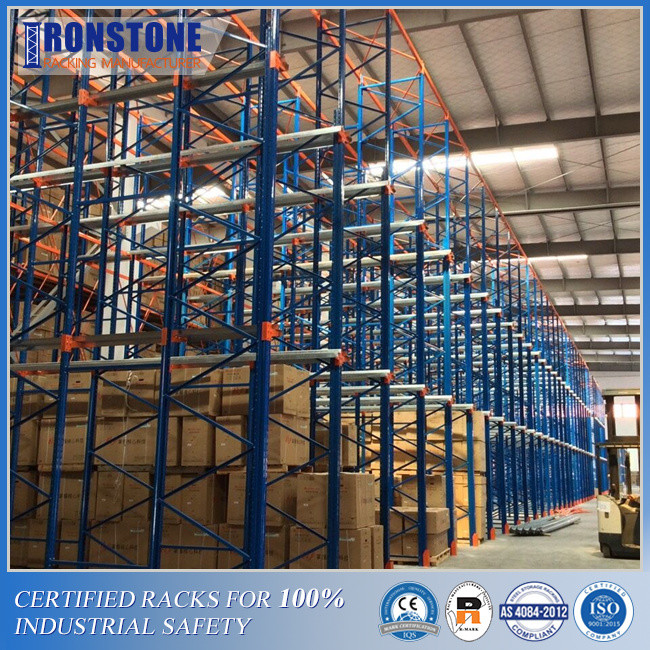

High Density Drive-in Rack For Efficient Warehouse Storage 0Durable High Quality Powder Coated Drive In Racking System For Warehouse Storage

Product Description

1. High quality powder coated drive in racking sysytem are applied in industrial warehouse storage using entering-in forklifts for products loading and unloading.

2. Suitable for large quantity products with less items, drive in pallet racks make better space utilization rate with compact storage density following LIFO material handling method.

3. Usually, the storage depth for each lane is less than 8 pallets for safety and stability.

4. Supported rails in drive in pallet racks are specially designed for pallet loads deposit and withdraw.

5. For warehouse security, protective guiderails that can facilitate the forklift smooth movement are highly recommoned in the drive in racking system.

6. Drive through pallet racks are another transformation of drive in racks with two entry points of each bay, thus, different from the former, drive through racks support both FIFO and LIFO stock rotation principles.

More Details about Drive-in Pallet Racks



Pallet rack type Forklift drive in pallet racks
Dimensions Customized sizes with height, bay width and depth
Load capacity Ranged from 1000kg-2000kg per pallet as customers' demand
Material Powder coated roll-formed Q355 steel
Material handling Last-in/First-out material handling method
Safety accessories Column protectors, entry guides, frame protectors, guide rails
Components Upright frame(upright, horizontal bracing, diagonal bracing), beams, pallet rails




High Density Drive-in Rack For Efficient Warehouse Storage 1



Production Specifications

1. Ironstone drive in pallet racks are commonly manufactured with high quality Q355B steel. with powder coated surface treament.

2. For frezzers and special required warehouses, Q355 steel is also available for customized option.

3. Drive in pallet rack major components such as upright frames, beams and rails are often powder coated for corrosion protection.

4. More cost-saving galvanized rack components are also optional for specialized request.

5. Upright frames of drive in racks can be engineered with different holes, section sizes and material thickness with different load capacities.

6. Supported rails can adjusted with varified pitch distances including 50mm, 50.8mm, 75mm and 76.2mm.

7. Coberls for pallet rail support can be sigle-sided and double-sided with strong rigidity.

8. High grade bolts and nuts for rack installation are attached to the rack systems free for our customers' benefits.

9.Ironstone drive in racks have been approved with related certifications including RMI/CE/ISO/TUV/AS4084-2012.


 High Density Drive-in Rack For Efficient Warehouse Storage 2


Details for Design and Quote

For accurate drive in rack design and quote, related answers are welcomed from our customers for the following questions.

1. Do you have the drawing of your warehouse layout with details?

2. What's the available space for your required drive in racks?

3. What are the size and weight of your future stored pallet loads?





High Density Drive-in Rack For Efficient Warehouse Storage 3High Density Drive-in Rack For Efficient Warehouse Storage 4High Density Drive-in Rack For Efficient Warehouse Storage 5


4. What are the expected dimensions of the drive in rack, such as the rack height, width and depth?

5. How many layers do you want to have for each storage bay?

6. What's the expected load capacity of the drive in rack?

7. What's your budget for the racking system?

8. What kind of forklift do you have or want to use in the future?




High Density Drive-in Rack For Efficient Warehouse Storage 6High Density Drive-in Rack For Efficient Warehouse Storage 7High Density Drive-in Rack For Efficient Warehouse Storage 8


To sum up, drive in racking system is a trustworthy, high density, economical storage solution that can optimize your facility space and maximize your profits. If you have large amount of commodities with less SKUs, you can consider cost-saving drive in racks. You will get your perfect drive in racking solution from Ironstone with convenient but cost-effective one-stop services.
